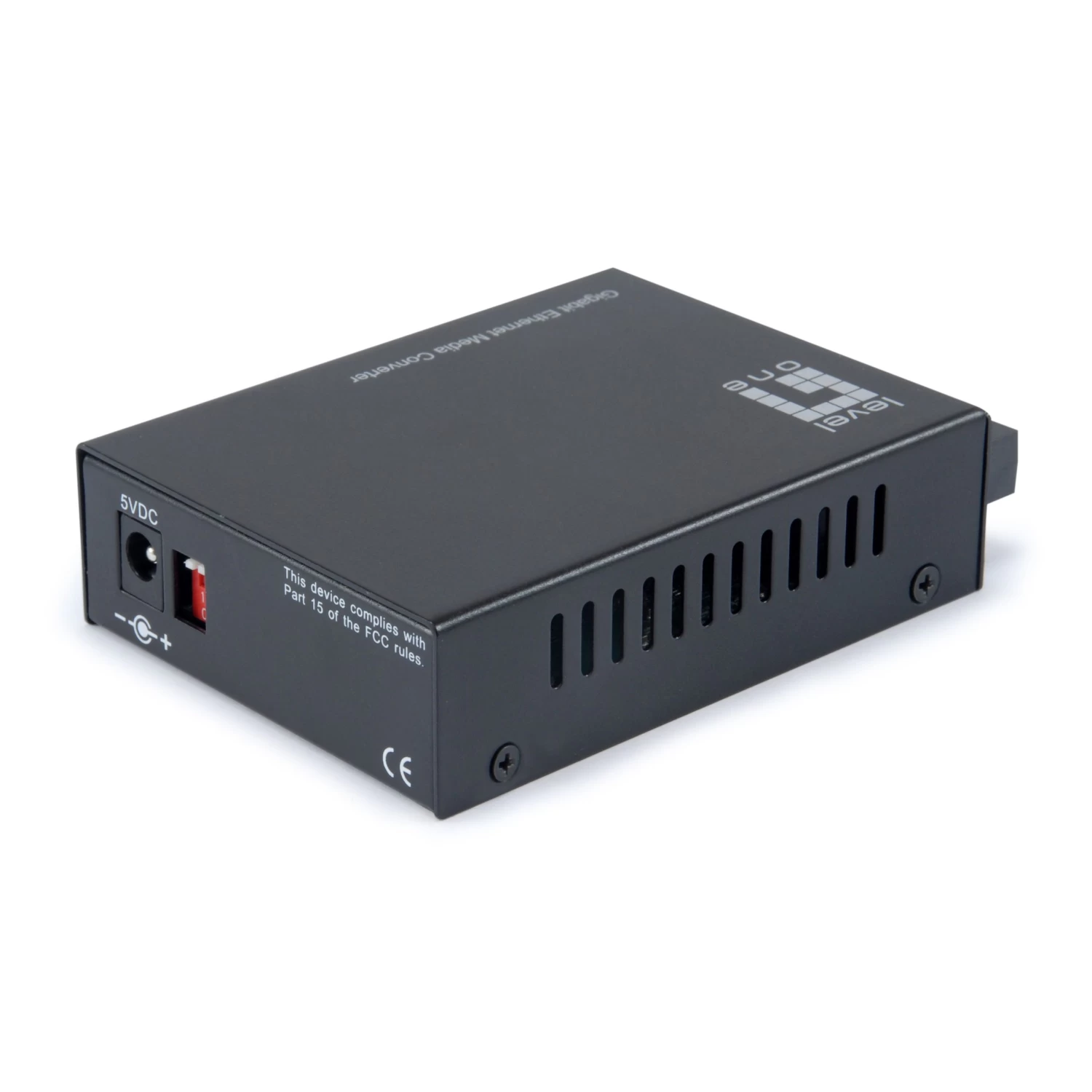

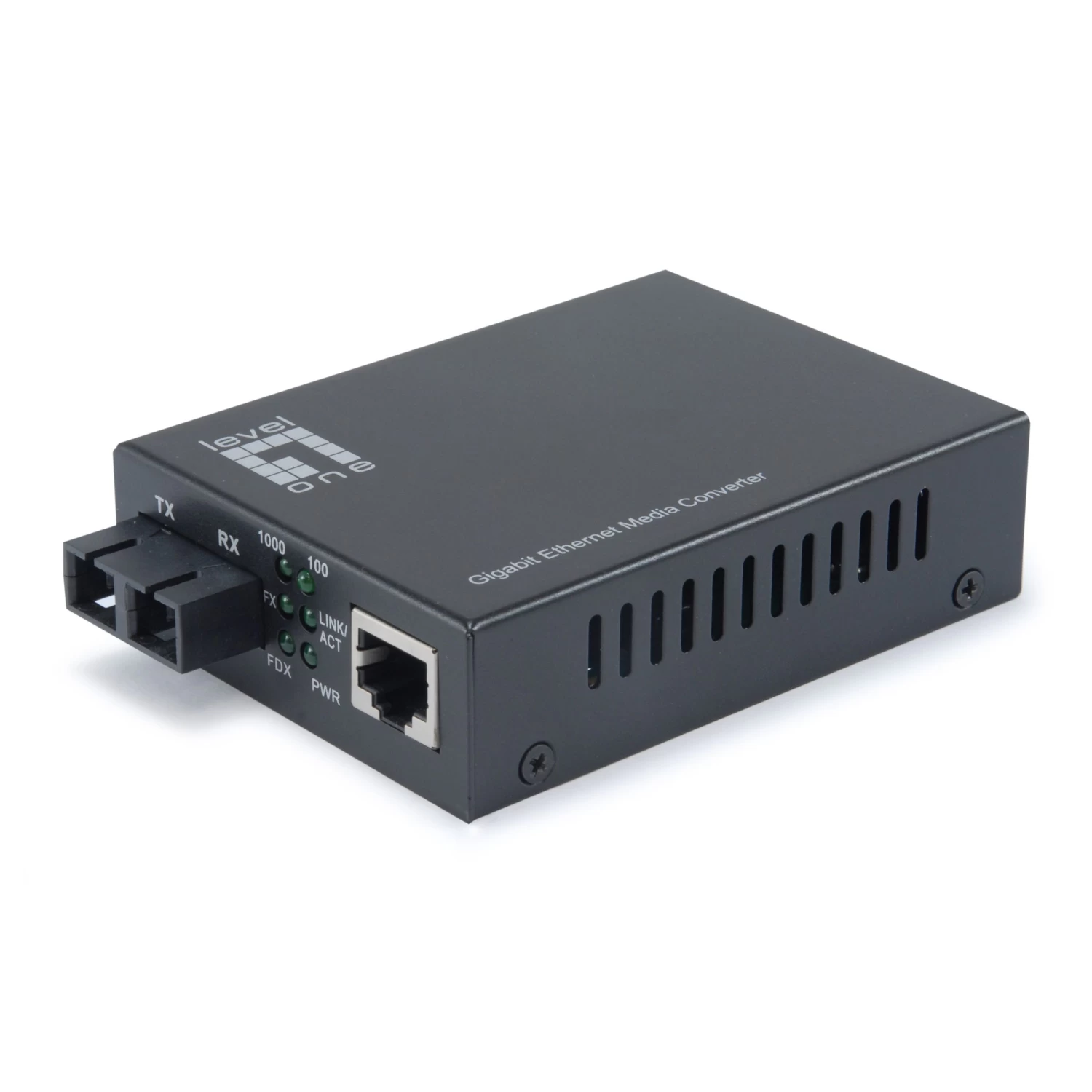

The 71F1-201SC media converter is able to convert network signals between UTP and fiber optic cable based networks. This allows extension of networks over a longer distance in multi-mode via fiber-optic cabling. This Media Converter provides a 10/100/1000BaseT auto-negotiating RJ-45 connector port that supports full duplex and half duplex switch connectivity and MDI/MDI-X Auto Crossover. The Smart Link Fault Pass-through technology (Link Lost Forwarding) enables the switch to shut down data transmission when the link connection has failed.
This Media Converter provides a 10/100/1000BaseT auto-negotiating RJ-45
connector port that supports full duplex and half duplex switch connectivity
and MDI/MDI-X Auto Crossover. The Smart Link Fault Pass-through technology
(Link Lost Forwarding) enables the switch to shut down data transmission when
the link connection has failed.
- UTP to fiber switching multi-mode media converter
- Auto Negotiation Speed, Half/Full Duplex
- TX port support Auto MDI/MDI-X
- Build in Link Loose Forwarding Technology
- Can be used stand alone or mounted in converter chassis
- Hot-swappable when used in chassis

- Part #71F1-201SC
- Warranty:1 year
- UPC Number:878742002114
- Weight:1.96 lbs
Helpful Downloads
- PDF Spec Sheet

- Product Manual
