1000ft 12-Fiber OM4 Fiber Optic Cable 10-Gbit, Outdoor

Product Description

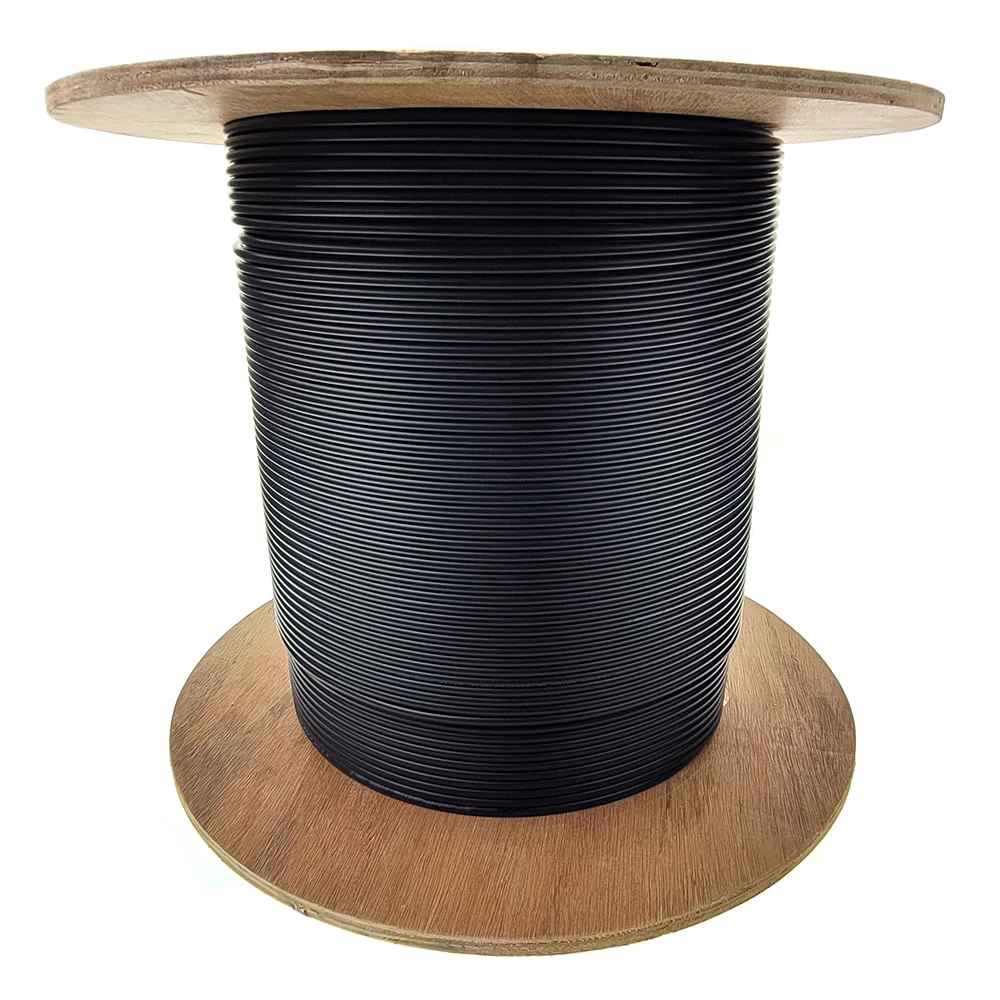

This is a black 1000 foot spool of indoor/outdoor rated fiber optic distribution cable intended for large installations of short range runs at 10 Gigabit speeds. It is composed of 12 Corning ClearCurve OM4 multimode fibers (50 micron core) inside a water blocking Aramid yarn wrapped in a black PVC outer jacket. Multimode fiber is optimized to work with fiber optic equipment using light wave lengths of 850nm (nanometers) or 1300nm. The cladding diameter is 125 microns. OM4 increases the available bandwidth from 2,500 megahertz to 4,700 megahertz which in turn increases the maximum distance of 10 Gigabit runs from 300 meters to 550 meters.

The Graded-Step core and cladding of our black bulk 50/125 indoor/outdoor fiber optic cable is constructed using a high quality multimode fiber that is compliant with TIA/EIA 455-220A and IEC 60793-1-49. It also maintains compliance with legacy and LED based systems per TIA/EIA 455-204 and IEC 607-1-41.

This particular cable is Riser Rated (CMR) meaning it complies with UL-1666. It is for usage in vertical tray applications without environmental air. Examples being: cable runs between floors through cable risers or in elevator shafts. These cables self extinguish and prevent the flame from traveling up the cable in a vertical burn test. This fiber optic cable is solidly constructed, UL rated and RoHS Compliant.

Details

• Part #10F3-412NH
• Warranty:Lifetime
• UPC Number:846568051401
• End 1:Bare end
• End 2:Bare end
• Length:1000 feet
• Color:Black
• Weight:30.00 lbs

Helpful Downloads

• PDF Spec Sheet
