1000ft Black 24 Fiber Outdoor Singlemode Fiber Optic Cable

Product Description

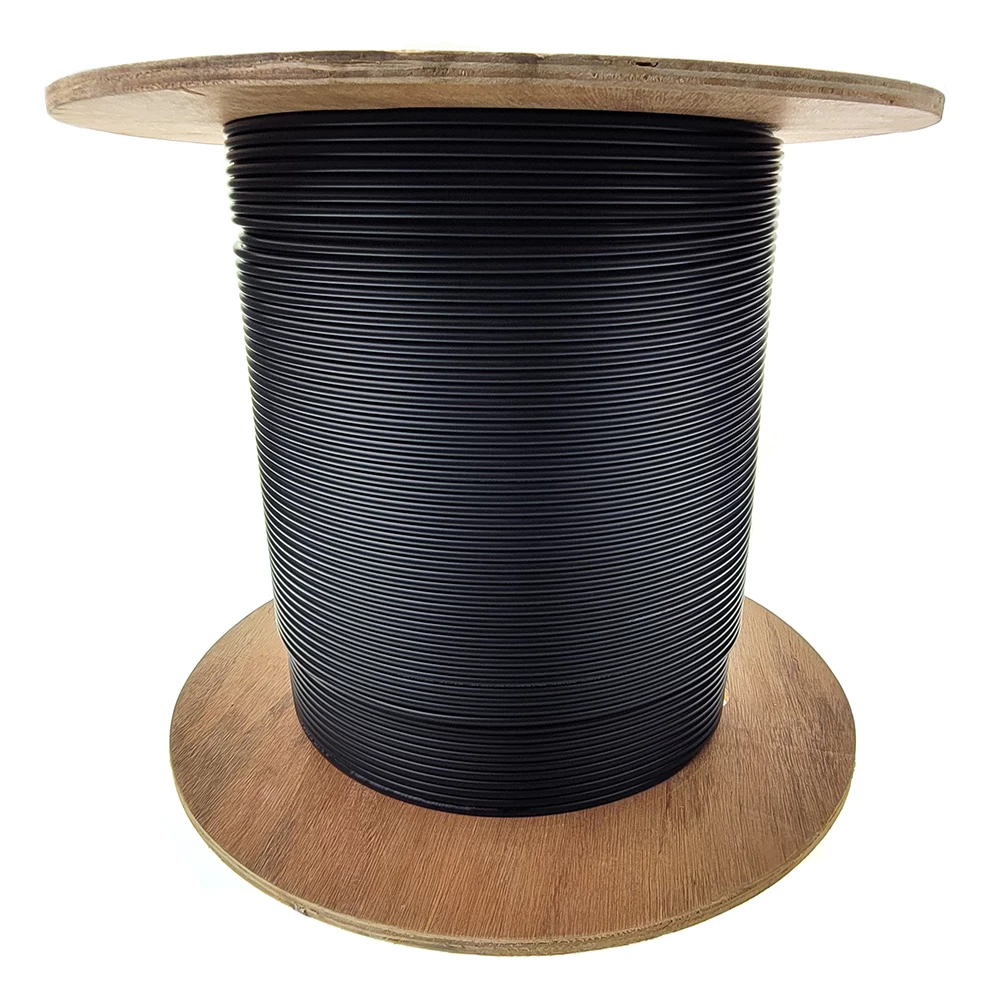

This is a black 1000 foot spool of indoor/outdoor rated fiber optic distribution cable intended for long distance runs at high speeds. It is composed of 24 singlemode fibers (9 micron core) inside a water blocking Aramid yarn wrapped in a black PVC outer jacket. Single mode fiber is optimized to work with fiber optic equipment using light wave lengths of 1310nm (nanometers) or 1550nm. The cladding diameter is 125 microns. The core and cladding of our black bulk indoor/outdoor fiber optic cable is constructed using a high quality Corning SMF-28 Ultra singlemode fiber that is ITU-T G.657.A1 compliant and backwards compatible with other legacy singlemode fibers. This particular cable is Riser Rated (CMR) meaning it complies with UL-1666. It is for usage in vertical tray applications without environmental air. Examples being: cable runs between floors through cable risers or in elevator shafts. These cables self extinguish and prevent the flame from traveling up the cable in a vertical burn test. This fiber optic cable is solidly constructed, UL rated and RoHS Compliant.

Details

• Part #10F3-024NH
• Warranty:Lifetime
• UPC Number:846568051364
• End 1:Bare end
• End 2:Bare end
• Length:1000 feet
• Color:Black
• Weight:43.00 lbs

Helpful Downloads

• PDF Spec Sheet
