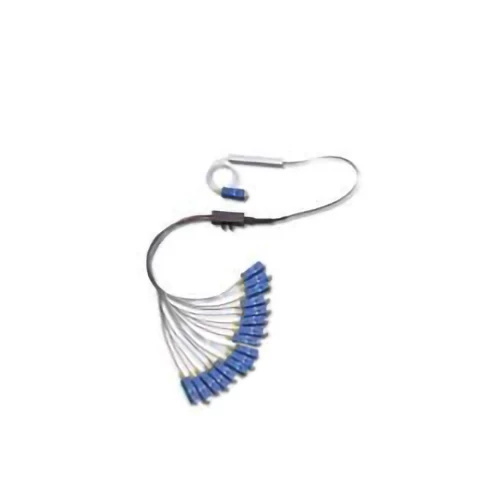

1×16 PLC With Fan Out And SC/UPC Connectors

Product Description

Today’s high-port-count applications for broadband system applications demand the best performance and the highest reliability under the most adverse of environments. Planar Lightwave Circuit Splitters deliver on all these requirements. We provide a variety of PLC’s. The PLC is a device used to divide one or two light beams to multiple light beams uniformly or combine multiple light beams to one or two light beams. This unit is pre-terminated with 16 SC/UPC connectors.

Features

• Very low insertion loss
• Broad operation
• Low PDL
• High reliability and Stability
• Passed Telcordia GR-1209-CORE and GR-1221-CORE
• RoHS Compliant

Specifications

• Operating Wavelength: 1260nm – 1650nm
• Insertion Loss (dB) MAX (P/S):13.5/14
• Uniformity (dB) MAX (P/S): 1.0
• Return Loss MIN (P/S): 50/55
• Loss (dB) MAX (P/S): 0.3/0.15
• Directivity MIN (P/S): 55
• Fiber Type: SMF-28e
• Wavelength Dependent Loss (dB): 1.0

Details

• Part #15F2-20116
• Warranty:1 year manufacturer’s warranty
• End 1:SC/UPC Simplex Connector
• End 2:16 x SC/UPC Male Connectors
• Length:1.2 meters
• Connector:Blue
• Weight:0.50 lbs
