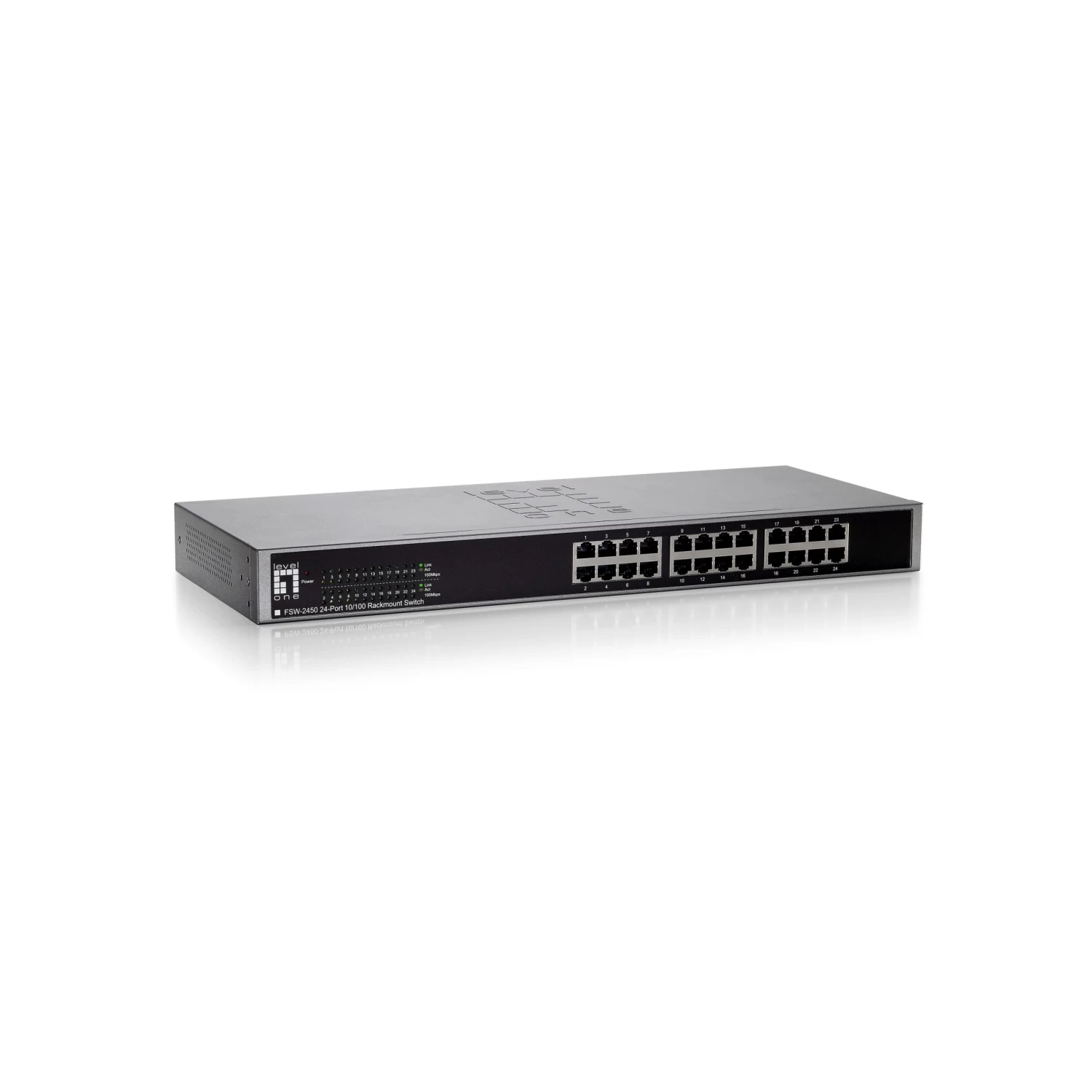

The 71X5-00224 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
The 71X5-00224
is a wire-speed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an
internal power supply. It provides a network with an 8K MAC address table,
4.8Gbps backplane throughput, asymmetrical flow-control support for full-duplex
network connectivity, auto-negotiation and Auto-MDIX. The 24-port Fast Ethernet
Switch utilizes packet store-and forwarding switching for error-free data
transmissions and IEEE802.3x backpressure flow control to control data flow
between the sending and receiving nodes as well as to prevent any data packet
loss.
Compact Design
The 71X5-00224 is a compact designed network switch. Users can place the switch
on any desktop area or mount it in a 19-inch server rack or cabinet by using
the included rack-mounting accessory kit.
Quick Configuration and Easy Maintenance
The 71X5-00224
does not require any software configuration. It is Plug-and-Play enabled for
quick set-up and immediate use within the Local Area Network. The 24 port Fast
Ethernet Switch is equipped with a full range of LEDs for instant error
detection, networking monitoring and network troubleshooting.
- Provides 24 Fast Ethernet port connections
- Supports a total back plane of up to 4.8Gbps
- Wire-speed and non-blocking forwarding rate
- Support IEEE 802.1P QoS (WRR 8:1)
- Supports Auto-negotiation on all ports
- Store-and-forward switching for error-free transmission
- Supports full-duplex IEEE802.3x flow control
- Accessory kit for mounting into a 19″server rack
- Internal power supply
- Power save up to 14% compare to Non Green Switch with similiar funtions

- Part #71X5-00224
- Warranty:2 years
- UPC Number:878742005597
- Connection:24 Ethernet Ports
- Weight:6.51 lbs
