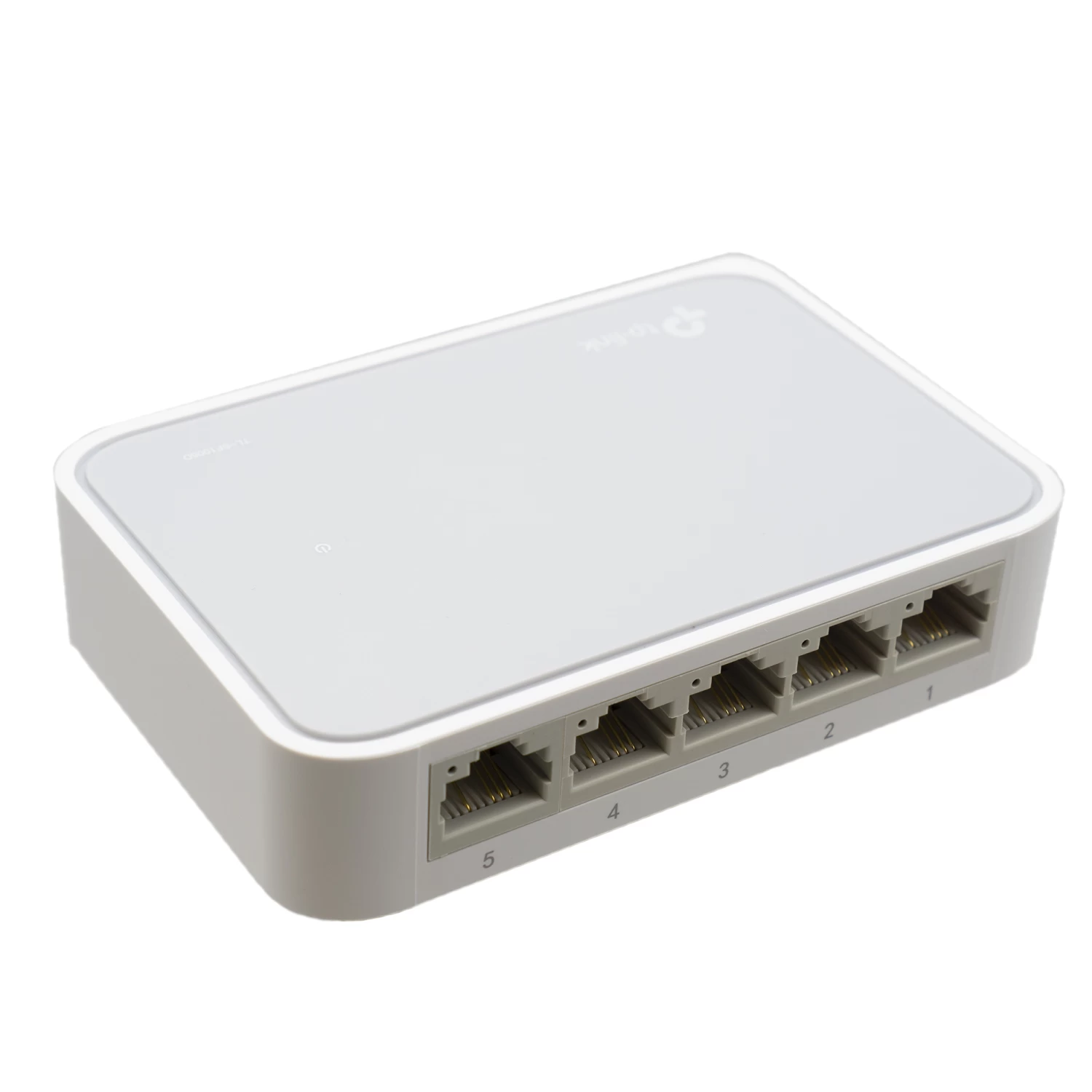

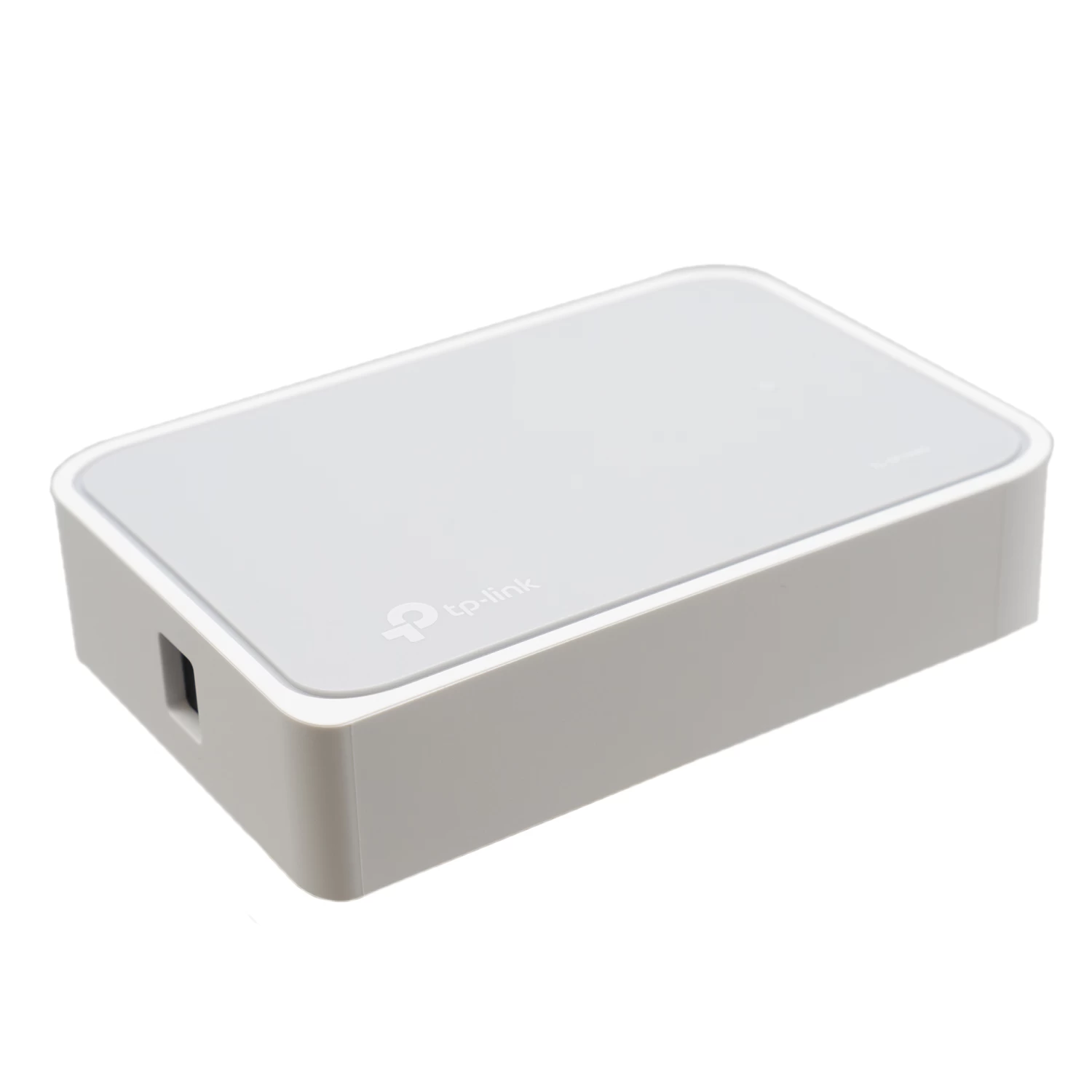

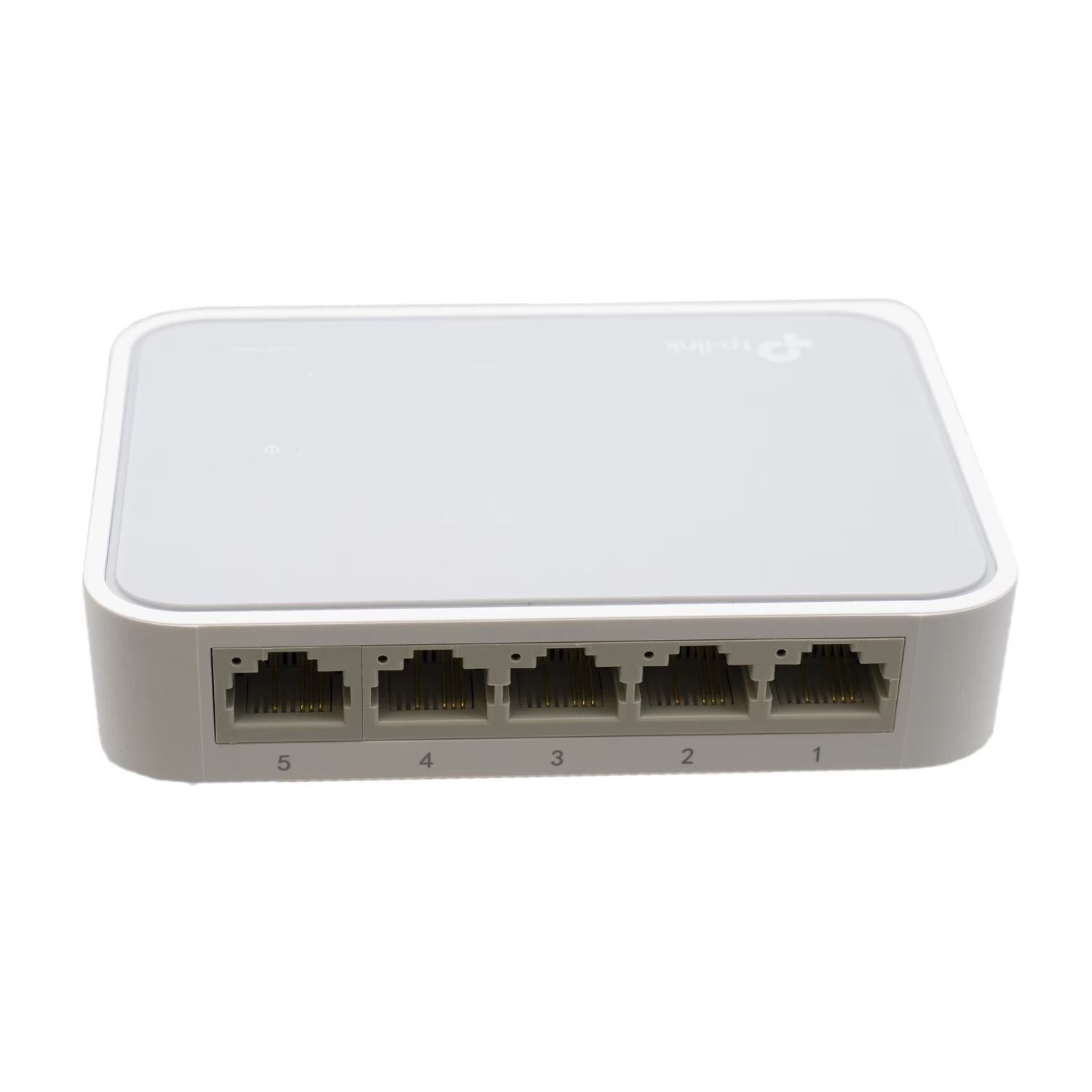

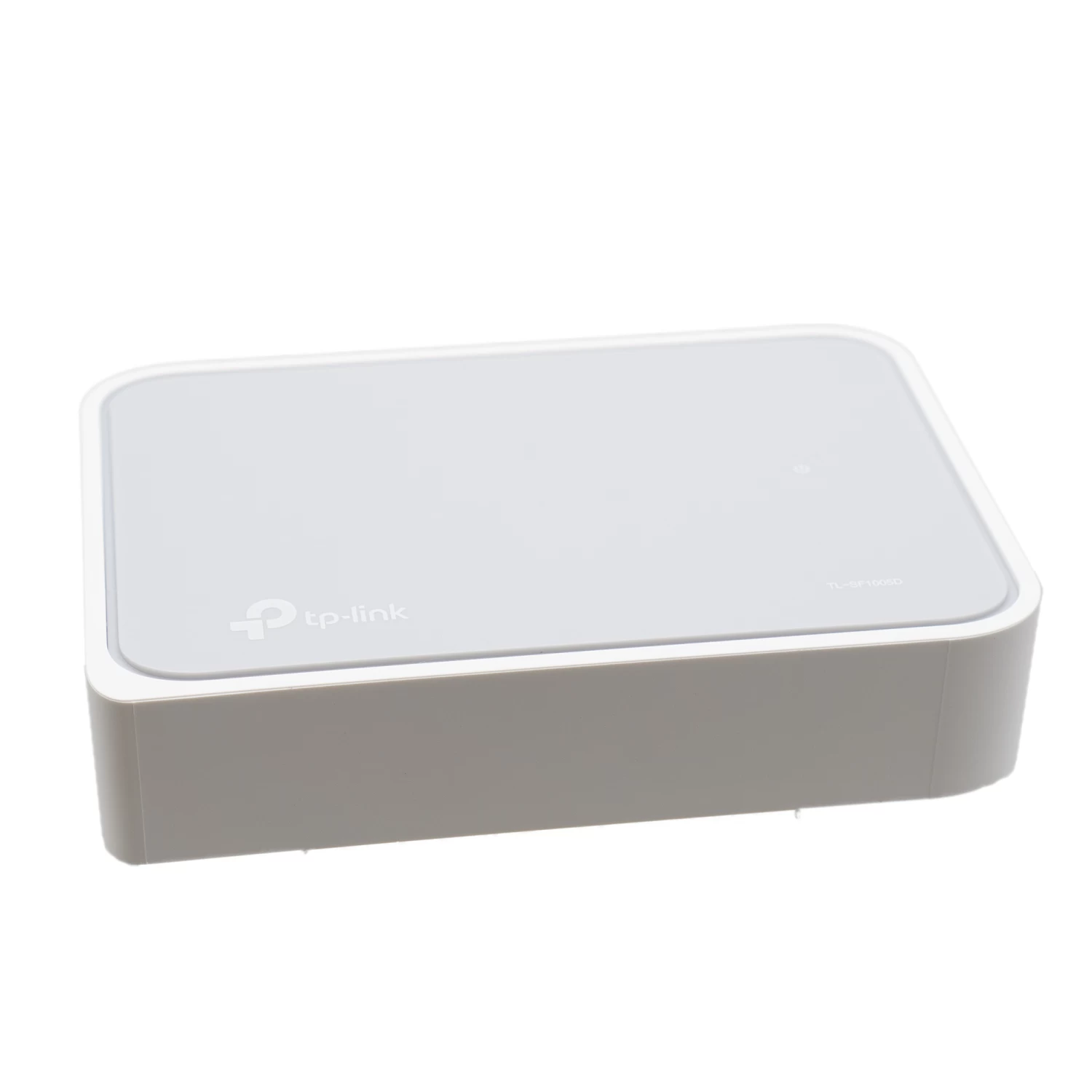

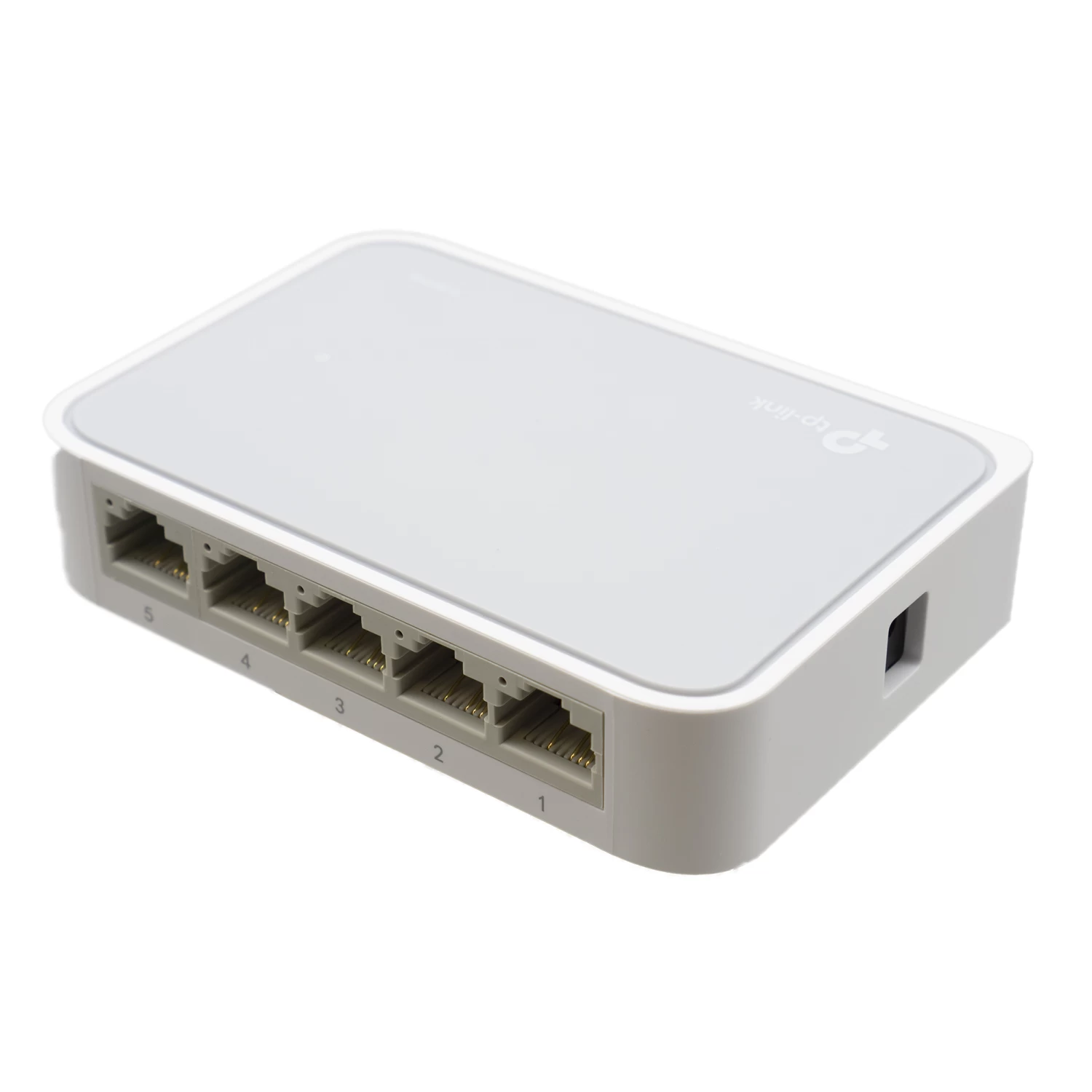

5 Port Fast Ethernet Switch, 10/100, Auto-Negotiation

Product Description

This 5-Port fast Ethernet switch is perfect for a home or small office network. This switch provides your LAN with high-speed, 10/100 Mbps auto-sensing connectivity for as many as 5 devices, perfect for a small network or a small network expansion. Just plug in your Ethernet cables, connect a power cord, and you’re ready to go there’s no software to configure. All ports also automatically sense half or full duplex connections for high-speed server or switch-to-switch configurations.

This switch is most suited to the following applications : 1. It can be placed near the core of the network to eliminate bottlenecks and improve the overall network throughput. 2. It can extend the span of a network
that has the maximum allowed hubs connected in series. 3. When used as a desktop connectivity device, it provides the highest possible performance for connecting users to your network.

The compact and slim design allows direct placing on the desktop or conveniently mounted on the wall or the side of a desk to accommodate cabling consideration.

Key Features

• Auto-Negotiation – Plug and Play
  Every individual port is capable of automatic sensing the connected device’s speed (10Mbps or 100Mbps) and duplex(Half or full) mode. It’s 100% transparent to users – a truly plug and play device.
• Full Duplex
  The full duplex feature can double the network throughput on every port. It is used for high speed server or switch-to-switch connections.
• Non-Blocking
  This switch delivers non-blocking performance at full-duplex on all ports. This feature provides full wire speed to the connected devices and greatly increases the network performance.
• Store and Forward
  This switch is designed with store and forward architecture that eliminates error packets in the network, improving efficiency.

Specification

• Standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX
• 10/100M Ports: 5 ports with RJ-45 connectors
• Architecture: Store and Forward
• Auto-Negotiation: On all ports
• Full/Half Duplex: On all ports
• Switch LED: Power

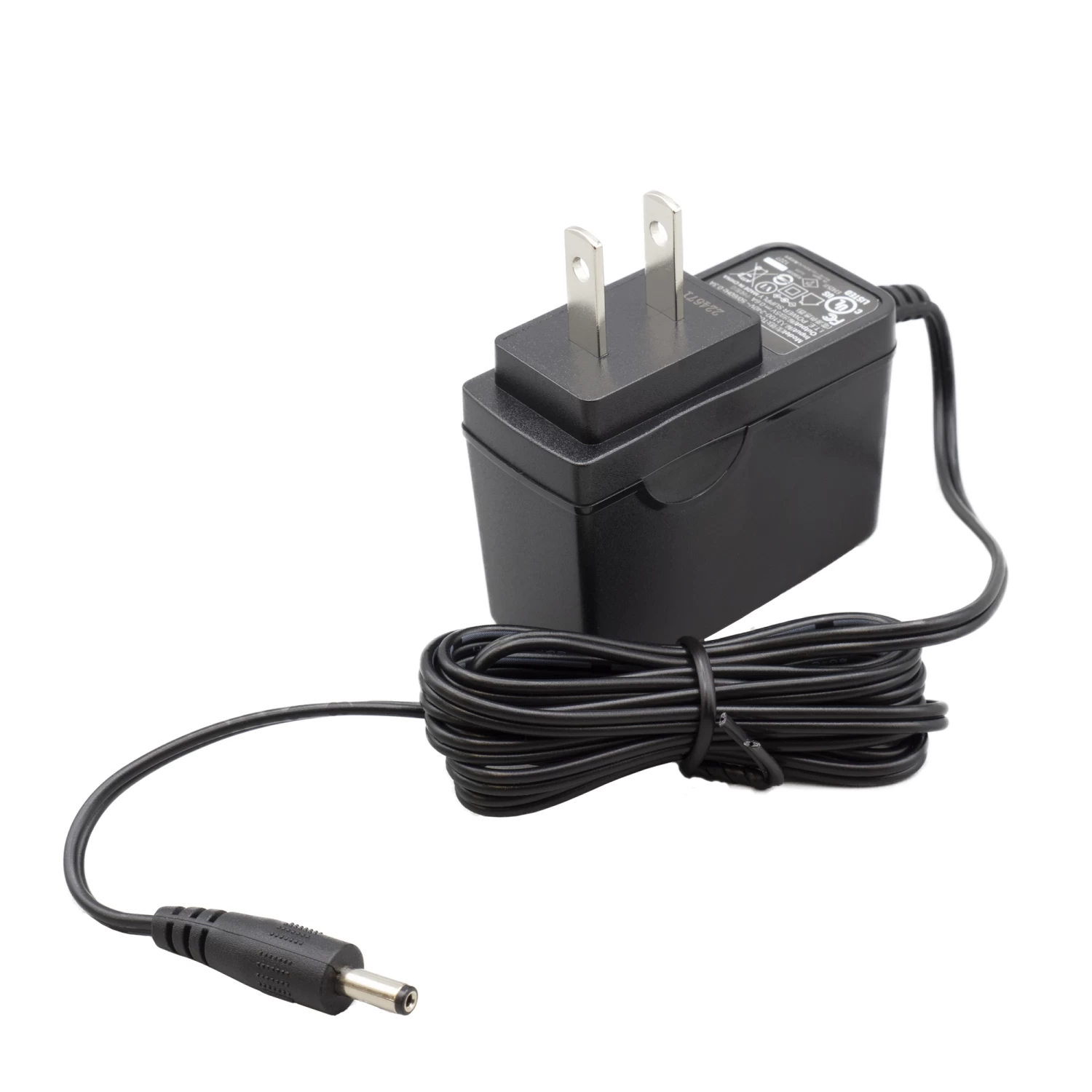

• Power: 12V DC, 0.5A
• Temperature 32-131F / 0-55C
• Humidity: 10-95% (Non-condensing)
• Certification: FCC Class B, CE Mark
• Warranty: Five years

Details

• Part #ES-3105P
• Warranty:5 years
• Connection:5 Ethernet Ports
• Weight:1.00 lbs

Helpful Downloads

• Product Manual
