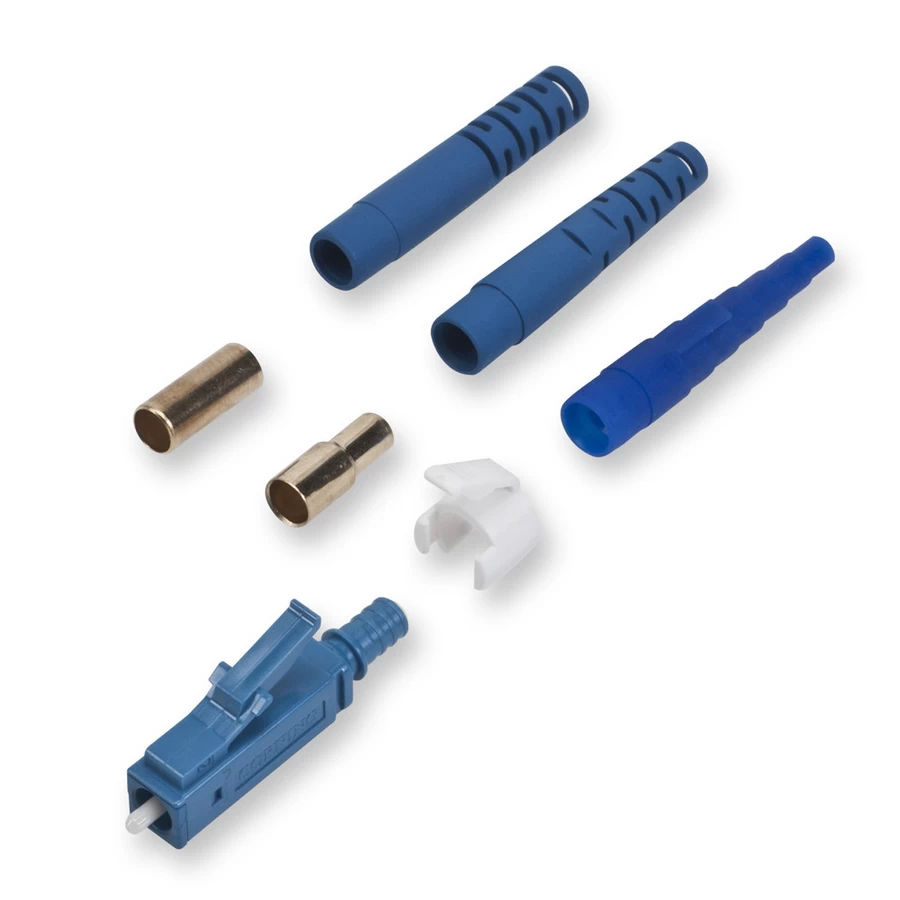

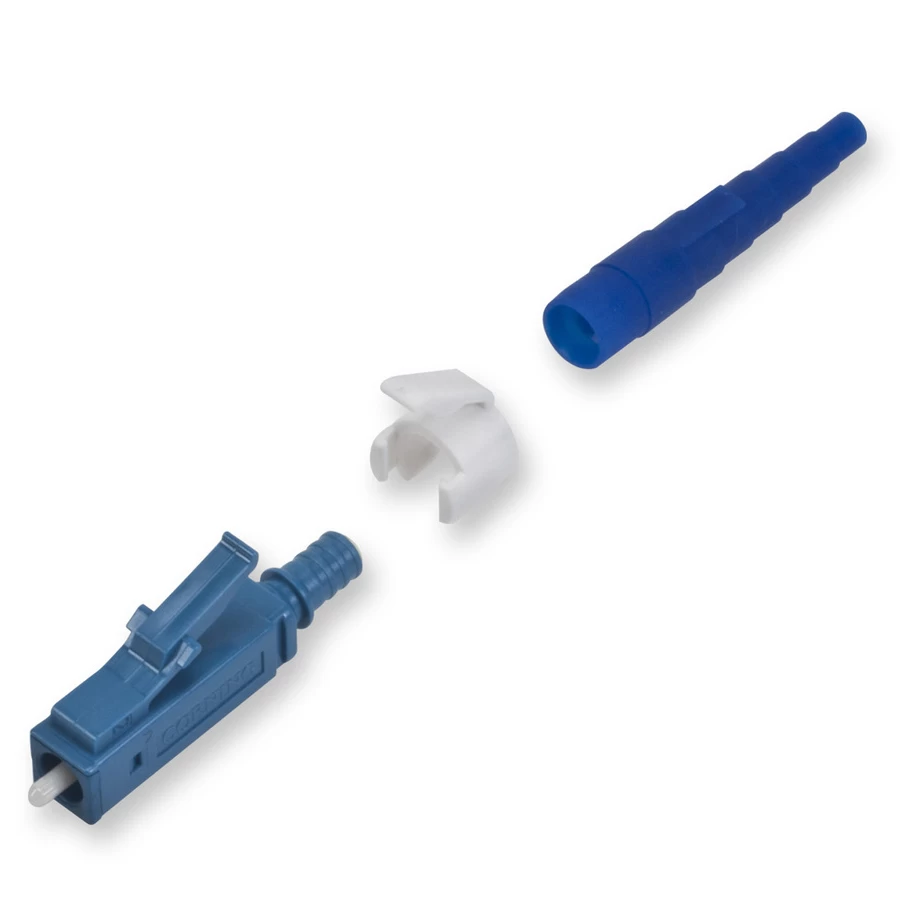

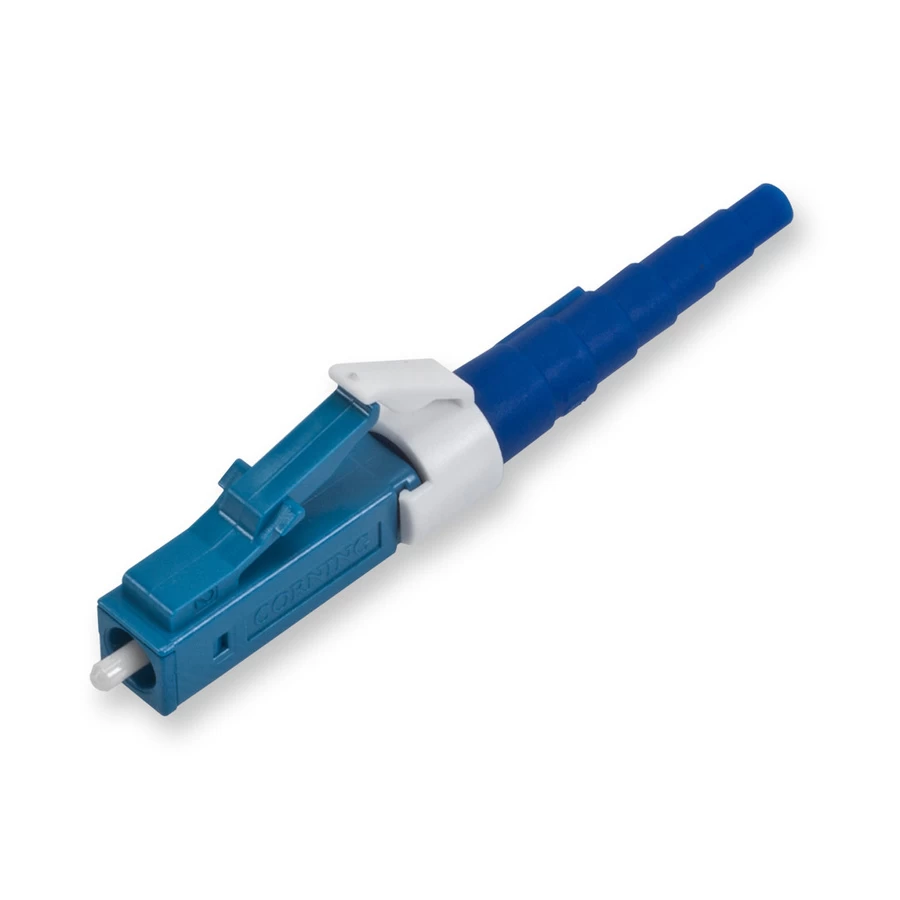

95-201-98-SP Corning Anaerobic Connector,LC, 9um OS2

Product Description

Corning anaerobic-cured connectors offer optical performance in a fast, easy field-termination solution designed for fiber-to-the-workstation applications for single-mode and multi-mode connections. This connector combines the quick-cured convenience of anaerobic adhesive with the performance of epoxy-and-polish connectors. Ideal for enterprise networks and any installations requiring field-installed connectors, the anaerobic-cured technology enables fiber optic networks to be installed cost effectively with minimal tools. Installation of the connector can be accomplished in minutes with the anaerobic adhesive two-part epoxy process. The adhesive is first injected into the connector ferrule, and then the fiber is dipped into the primer and inserted into the connector. Curing takes only one minute without the use of lamps or ovens. With the hand-polish process, an average insertion loss of 0.2 dB is achieved.

Intermateability: Compliant with TIA/EIA 604-10; Free of hazardous substances according to RoHS 2002/95/EG

Features:

• Fiber Category: Single-mode (OS2)
• Keyed: No
• Product Type (FOJP): Field-Installable Connectors
• Technology: Field Polish (anaerobic)
• Boot Color: Blue
• Connector Ferrule Material: Ceramic
• Connector Housing Color: Blue
• Connector Housing Material: Composite
• Design – Connector Type: LC
• Temperature Cycling: = 0.3 dB IL, -40° to +75°C, 21 cycles
• Insertion Loss, Max_ (Connector): = 0.75 dB
• Insertion Loss, Typical (Connector): = 0.2 dB
• Reflectance (Connector): = -40 dB
• Quick-cure epoxy
• No lamps or ovens needed Minimal tools and no index-matching gel
• Low installation cost Hand polished for minimum insertion loss
• Reliability and optical performance

Details

• Part #32LC-01295
• Warranty:1 year manufacturer’s warranty
• Weight:0.04 lbs

Helpful Downloads

• PDF Spec Sheet
