Cat5e Pass Through Crimp Plugs, Blue Tint, 50pc, Simply45

Product Description

Simply45 RJ45 ends for Cat5e networking are used for crimping and terminating Gigabit Ethernet cables. These 8P8C connectors can be used for solid or stranded cable applications on internet and phone networks. Simply45 Cat5e crimp connectors have gold-plated contacts that give you a solid, corrosion-free connection for life. Ordering RJ45 connectors in bulk from CableWholesale means you will have enough to set up or modify your infrastructure. We have a full lifetime warranty on these cat5e tips with full support from our knowledgeable team.

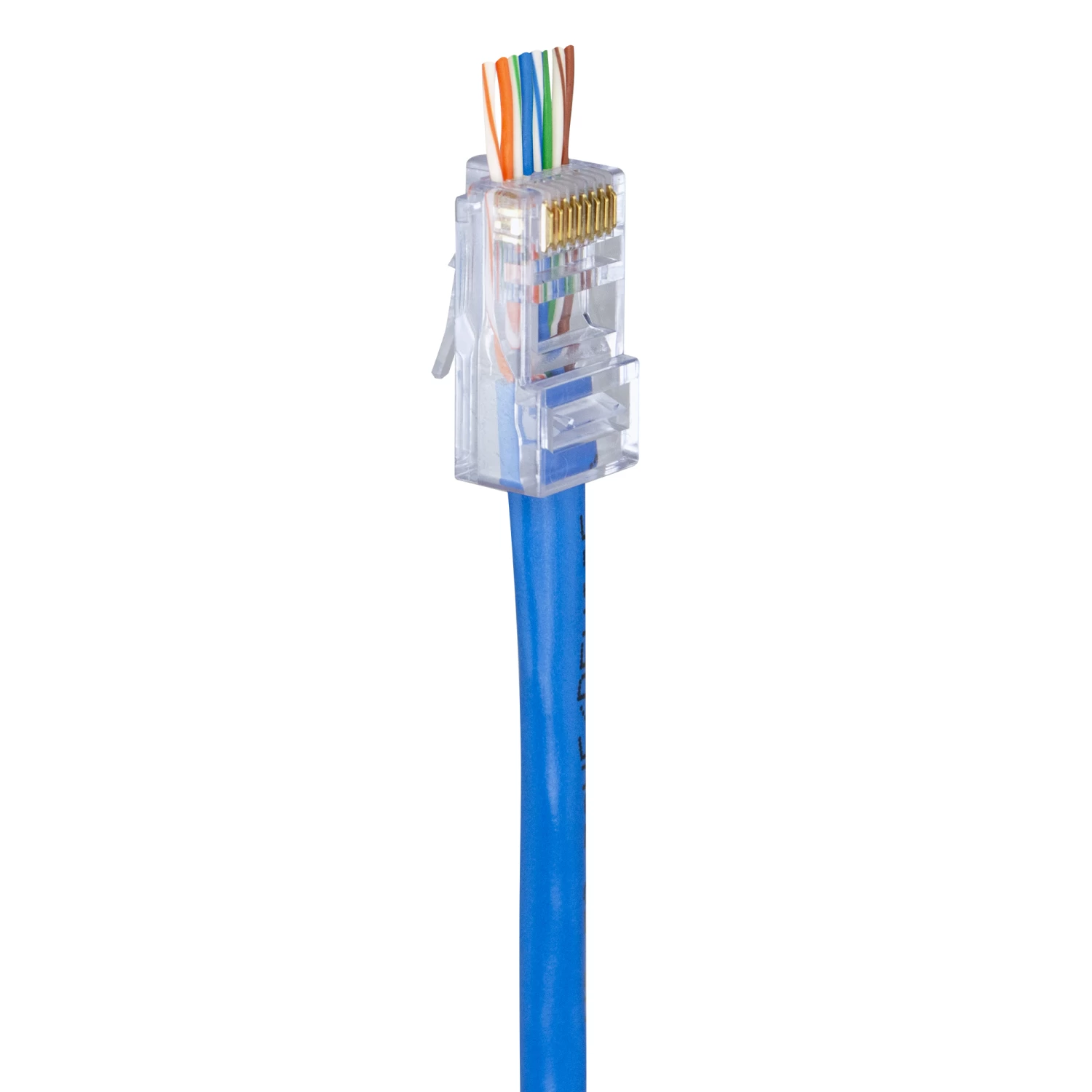

The blue tint of the RJ45 plug helps you easily identify this as a cat5e mod plug. The individual wires go all the way through this connector head and allow you to make sure everything is lined up before you crimp down. The unique internal design of the S45-1501 pass-through RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance.

Features

• Category/Cable Type: Cat5e/UTP
• Conductor AWG/Range: 24AWG/0.95-1.05mm
• Max OD: 6.5mm
• 24AWG Solid, 28-26AWG Stranded
• 3 Pin Contact Design
• UL94V-0, Commercial ‘Fire’ Rated
• UL94V-0 Application: CMP, LSZH, and CMR
• Meets Requirements for PoE/PoE+. HDBaseT Approved
• USA Designed. TAA Compliant

Details

• Part #S45-1501
• Warranty:Lifetime
• UPC Number:817777017656
• Connection:RJ45 Male Plug
• Weight:0.25 lbs
