Cat6a Gray Ethernet Cable, Solid 500Mhz, Spool, 1000ft

Product Description

Our gray bulk 1000 foot solid Cat6a Ethernet cable comes in a convenient spool and is ideal for the person looking to make longer permanent network runs during installation/expansion of network infrastructure.

Cat6a was developed to achieve maximum distance of 100 meters for full 10-Gigabit network speeds. This robust spec will afford you the extra headroom across your network that Cat6 can not. The 500 Mhz performance is double that of Category 6 and five times the bandwidth capacity of Category 5e. The extra performance is ideal for Power over Ethernet (PoE) and Voice Over Internet Protocol (VoIP) applications where data loss is audibly and visually seen and heard. The latest draft declares a new measurement for Power-Sum Alien Crosstalk to ensure neighboring pairs do not cause disturbance to the other cables. The cable’s center isolator/spline maintains strict pair separation optimizing NEXT performance. Our Cat6a bulk cable is tested for compliance with all ANSI/TIA-568.2-D Category 6a specifications.

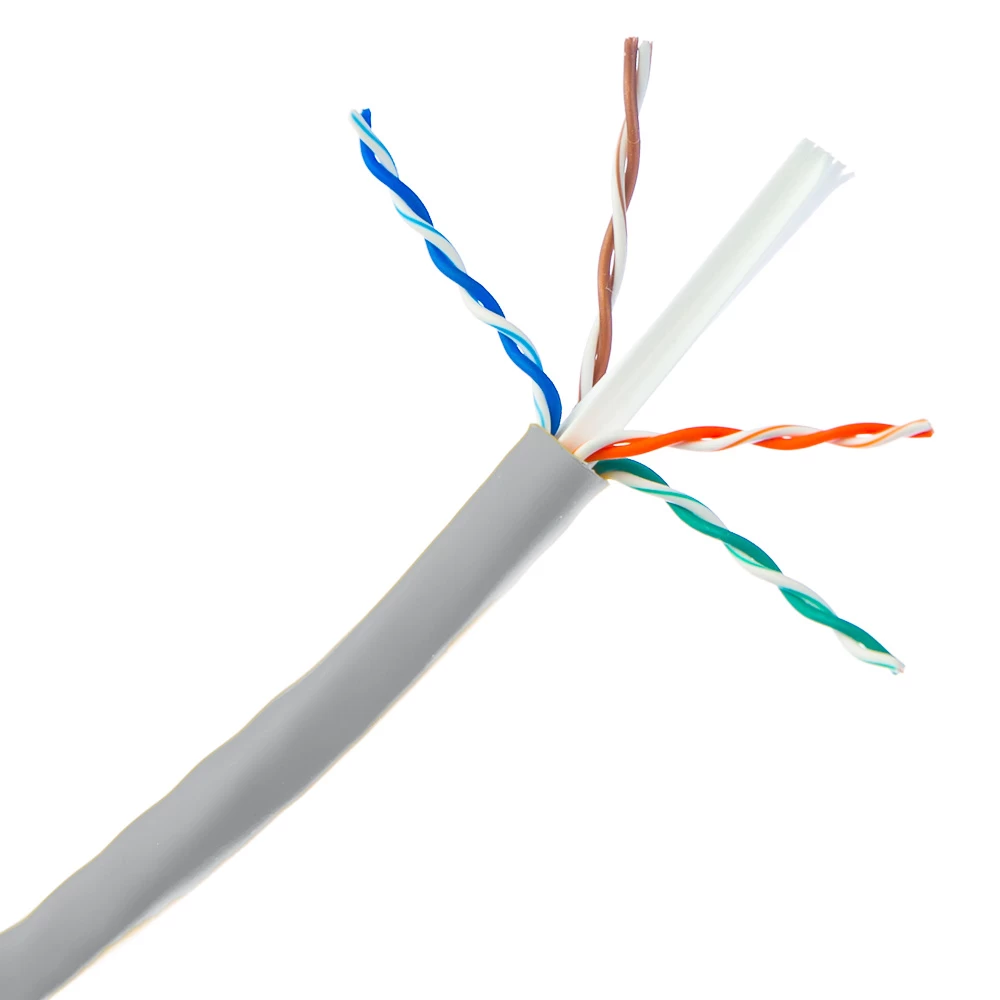

This particular cable is a gray UTP (Unshielded Twisted Pair) solid cable. Cat6a cable includes a spline and ribbing to help ensure separation between the pairs which limits cross talk. The individual conductors are 23 AWG (American wire gauge) solid pure copper. Pure copper conductors provide the best signal possible.

This bulk Cat6a cable will not be able to be crimped onto any connectors. The wires are simply too thick to fit. This cable should be punched down into a Cat6a keystone jack on one end and patch panel on the other end.

Details

• Part #13X6-021NH
• Warranty:Lifetime
• UPC Number:846568046186
• End 1:Bare end
• End 2:Bare end
• Length:1000 feet
• Color:Gray
• Wire Gauge:23 AWG
• Shield Type:unshielded

Helpful Downloads

• PDF Spec Sheet
