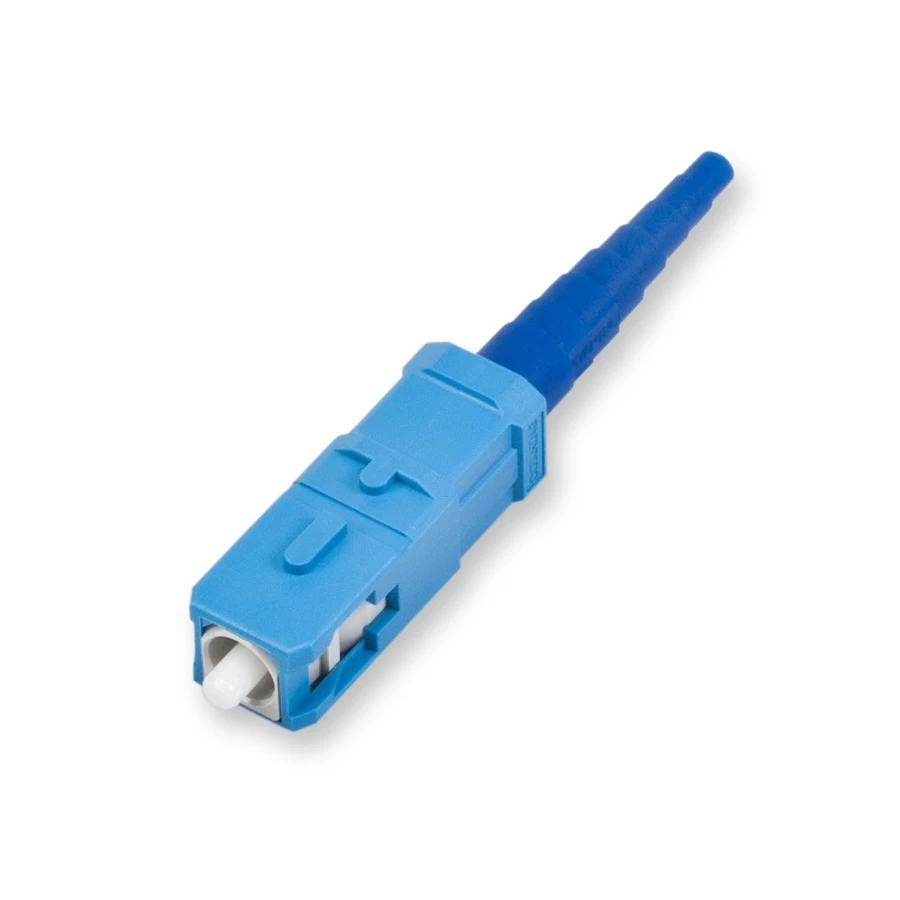

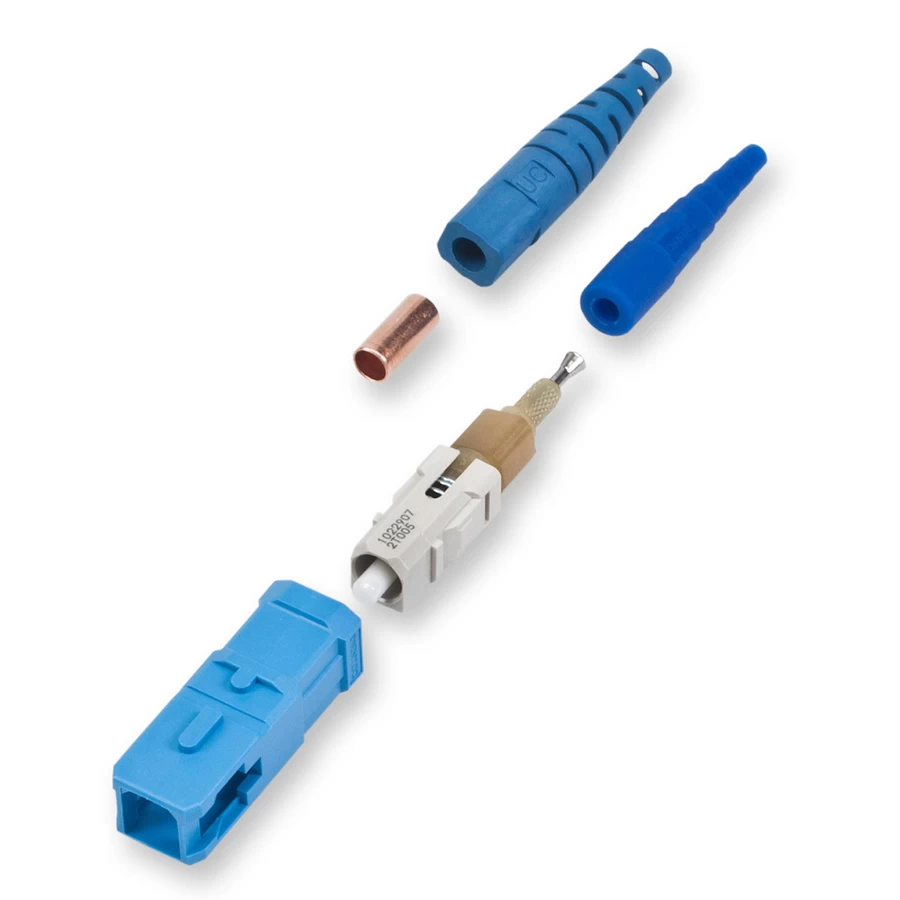

Corning SC Unicam Connector, 8.3um, OS2, Blue, 95-200-41

Product Description

Corning Cable Systems UniCam High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution.

Approval and Listings: Passed EIA/TIA 568-B.3; Intermateability: Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20; Free of hazardous substances according to RoHS 2002/95/EG

Features:

• Fiber Category: Single-mode (OS2)
• Keyed: No
• Product Type (FOJP): Field-Installable Connectors
• Technology: No-Epoxy/No-Polish
• Boot Color: Blue
• Connector Ferrule Material: Ceramic
• Connector Housing Color: Blue
• Connector Housing Material: Composite
• Design – Connector Type: SC
• Connector Durability: = 0.2 dB change by 500 rematings, FOTP-21
• Nominal Fiber Outer Diameter: 125 µm
• Temperature Cycling: = 0.3 dB IL, -40° to +75°C, 21 cycles
• Tensile Strength 900µ Cable (Metric): 4.9 N. change = 0.2 dB. FOTP-6
• Tensile Strength 900µ Cable (US): 1.1 lb. change = 0.2 dB. FOTP-6
• Tensile Strength Jacketed Cable (Metric): 44 N. change = 0.2 dB. FOTP-6
• Tensile Strength Jacketed Cable (US): 11 lb. change = 0.2 dB. FOTP-6
• Insertion Loss, Max_ (Connector): 0.5 dB
• Insertion Loss, Typical (Connector): 0.2 dB
• Polish: UPC
• Reflectance (Connector): = -55 dB
• Temperature – Operation (Metric): -40 °C to 75 °C exceeding EIA/TIA 568-B.3
• Temperature – Operation (US): -40 °F to 167 °F exceeding EIA/TIA 568-B.3

Details

• Part #31SC-01295
• Warranty:Lifetime
• Weight:0.04 lbs

Helpful Downloads

• PDF Spec Sheet
