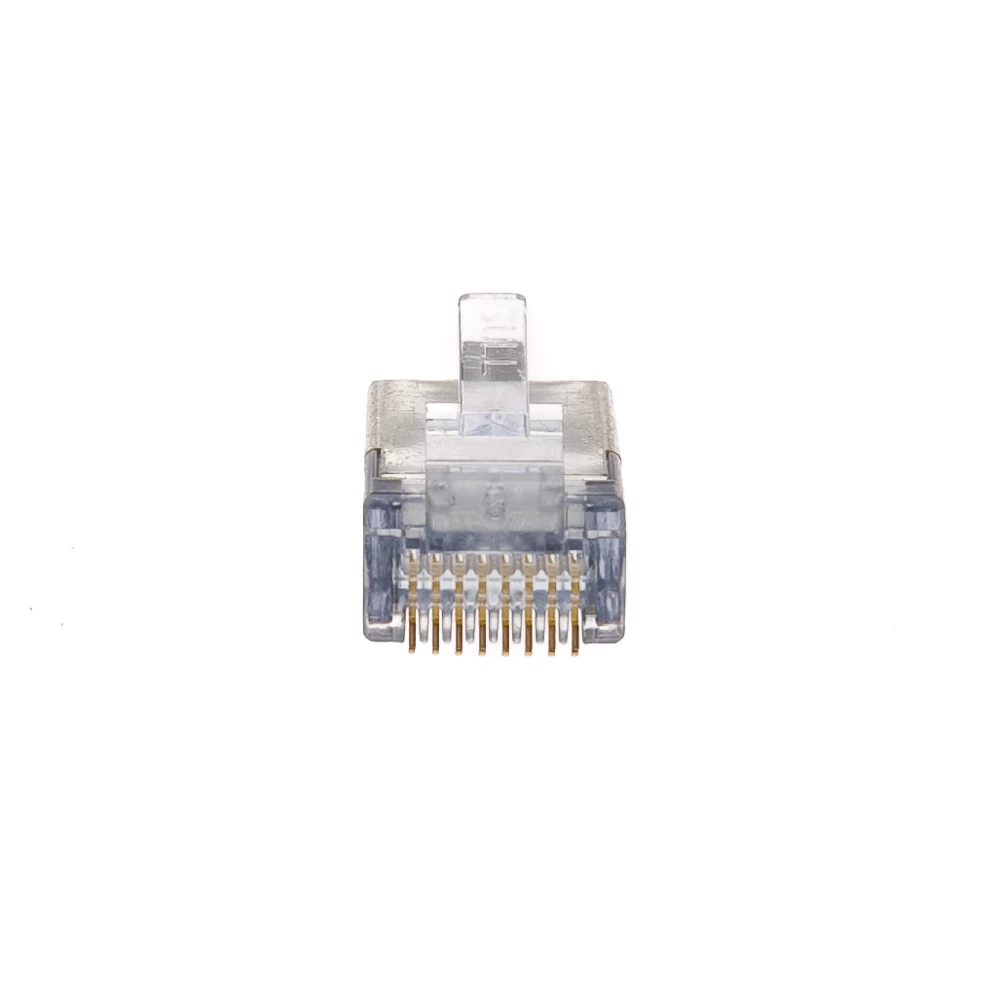

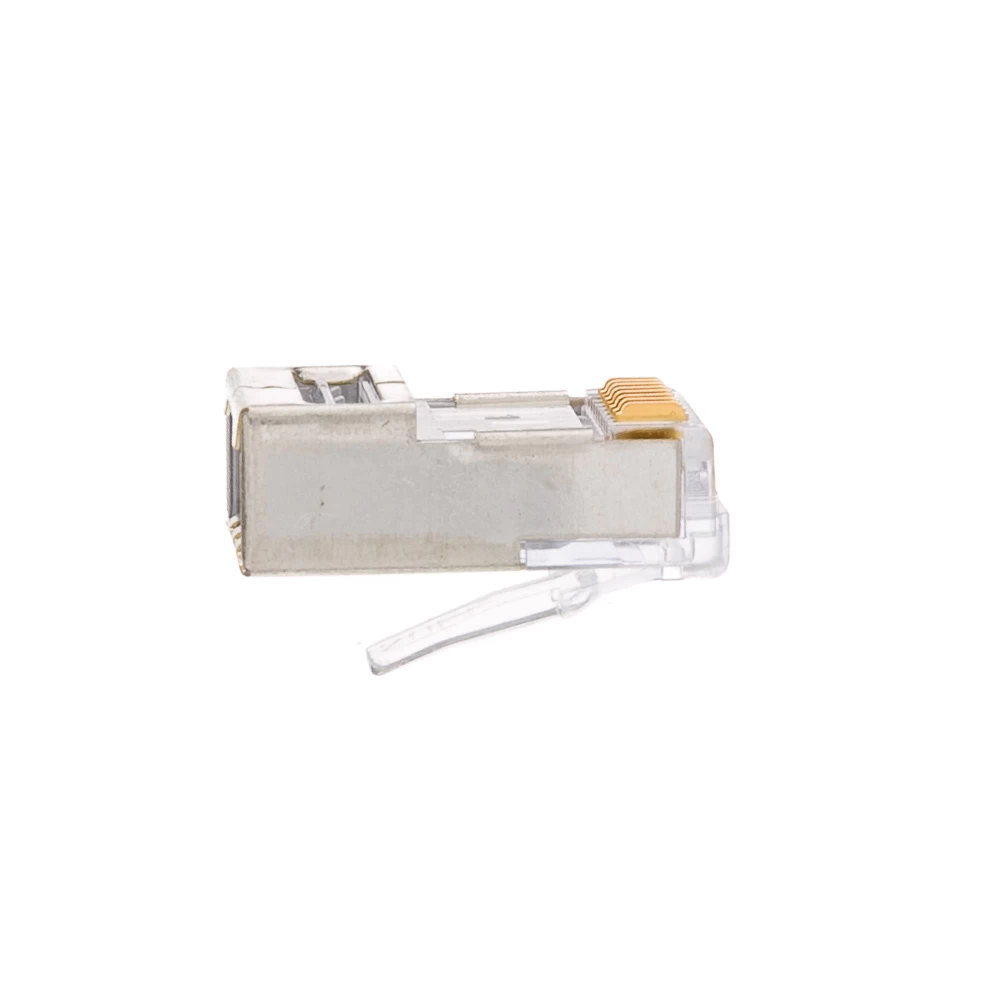

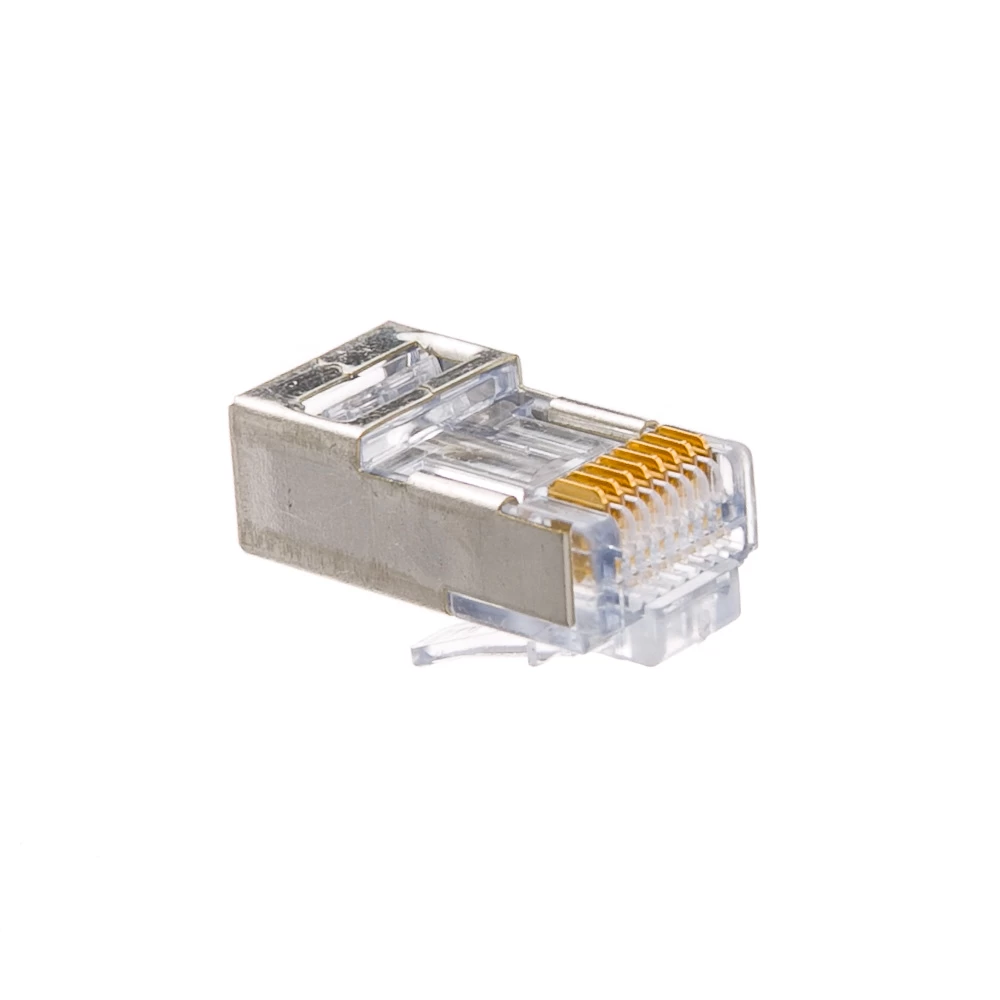

EZ-RJ45 Cat6 Shielded Crimp Plugs, 100 Pcs, Platinum Tools

Product Description
These EZ-RJ45 shielded Cat6 crimp plugs will help you crimp your own Cat6 cable with ease. They feature an internal ground for a seamless result. These only work with EZ crimp tools like Part #100054C and #100004C. These plugs come in a bag of 100 pieces.
Some shielded Cat6 cables may have an outside diameter large enough to require cutting off the shielding and grounding with the drain wire. In such cases mind the position of the leaf springs on the back side of the connector with respect to the positioning of the drain wire.

Details

• EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
• Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
• Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
• Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
• Max Cable OD: 6.60mm (0.260″), Max Insulated wire OD: 1.016mm (0.040″)
• For solid round or stranded wire cables.
• 1,000 Mating Cycles
• Operating Temperature: -40C to 85C
• Made in the USA
• TAA Compliant

Details

• Part #105020
• Warranty:Lifetime
• UPC Number:849160003755
• Connection:Cat5e Male Shielded Plug
• Wire Gauge:23 – 24 AWG
• Weight:0.59 lbs

Helpful Downloads

• PDF Spec Sheet
