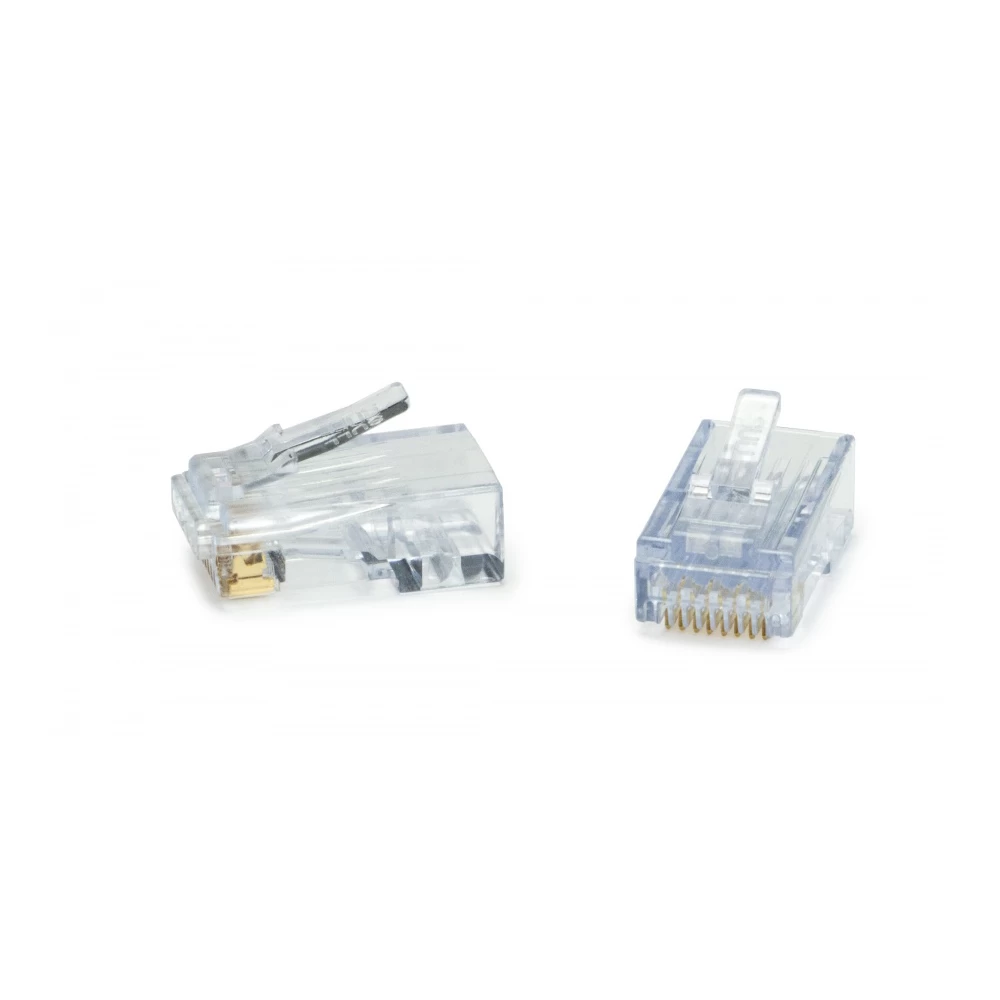

EzEX44-RJ45 Cat6 Crimp Plugs, 50 Pcs, Platinum Tools

Product Description
This RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Details

• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Insulation Diameter (Conductor) Size range: .039” – .044” (1.0 –1.12mm)
• Max Outer Diameter: .290” (7.36mm)
• 50 micron gold plated contacts
• 1,000 Mating Cycles
• Operating Temperature: -40C to 85C
• 5e/6/6A compliant
• Solid or Stranded 24-22 AWG
• TIA, TAA, RoHS, UL & FCC compliant
• Typically used with Cat6
• Made in the USA

Details

• Part #100028C
• Warranty:Lifetime
• UPC Number:849160008613
• Connection:RJ45 Male Plug
• Wire Gauge:22-24 AWG
• Weight:0.21 lbs
