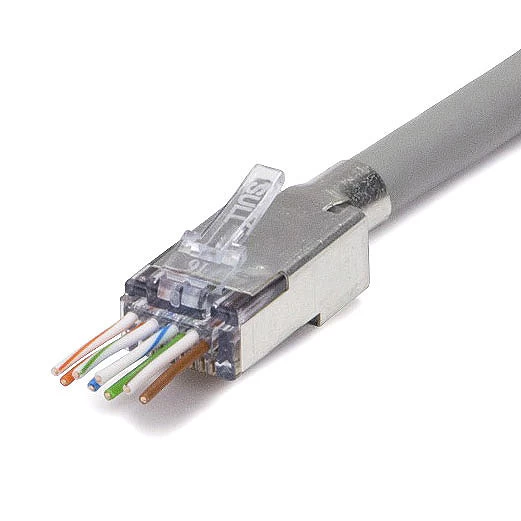

EzEX48 Cat6a Shielded Crimp Plugs, 100 Pcs, Platinum Tools

Product Description
Platinum Tools ezEX48 shielded RJ45 connectors with external ground feature a Hi-Lo stagger to isolate each connector. A simple to use one-piece design. For use with Cat6a cable. These connectors allow the conductors to pass through the front of the connector and must be used in conjunction with crimp tool 100061C. This product comes in a 100 piece bag. This product is RoHS2 and UL compliant Details

• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Shielded 6/6A compliant
• Insulation Diameter (Conductor) – Size range: 0.043” – 0.048” (1.09 –1.22mm)
• Max Outer Diameter: 0.305” (7.75mm)
• Solid or Stranded 23-22 AWG
• 50 micron gold plated contacts
• 1,000 Mating Cycles
• Operating Temperature: -40C to 85C
• TAA, TIA, RoHS, UL & FCC compliant
• Made in the USA

Details

• Part #105029
• Warranty:Lifetime
• UPC Number:849160009924
• Connection:RJ45 Male Plug
• Wire Gauge:22 – 23 AWG
• Weight:0.70 lbs
