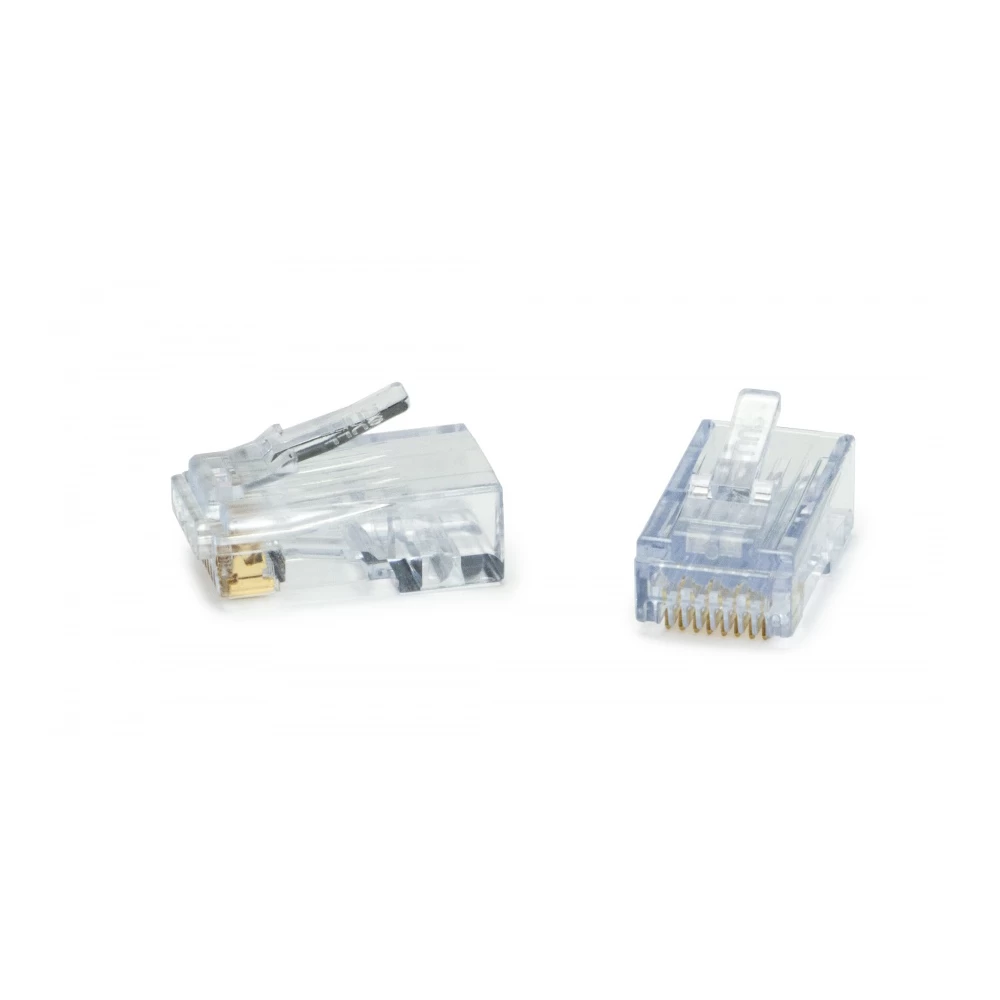

EzEX48-RJ45 Cat6a Crimp Plugs, 50 Pcs, Platinum Tools

Product Description
This ezEX48 Connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows larger conductors to pass through the front end of the connector. Making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6a and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Details

• Hi-Lo stagger isolates each conductor for higher performance
• Simple one piece/pass through design, no bars or liners
• Insulation Diameter (Conductor) Size range: .043” – .048” (1.09 –1.22mm)
• Max outer diameter: .290” (7.36mm)
• 50 micron gold plated contacts
• 1,000 Mating Cycles
• Operating Temperature: -40C to 85C
• Solid or Stranded 23-22 AWG
• TIA, TAA, RoHS, UL & FCC compliant
• Typically used with Cat6A
• Made in the USA

Details

• Part #100029C
• Warranty:Lifetime
• UPC Number:849160008637
• Connection:Cat6a Male Plug
• Wire Gauge:22 – 23 AWG
• Weight:0.21 lbs
