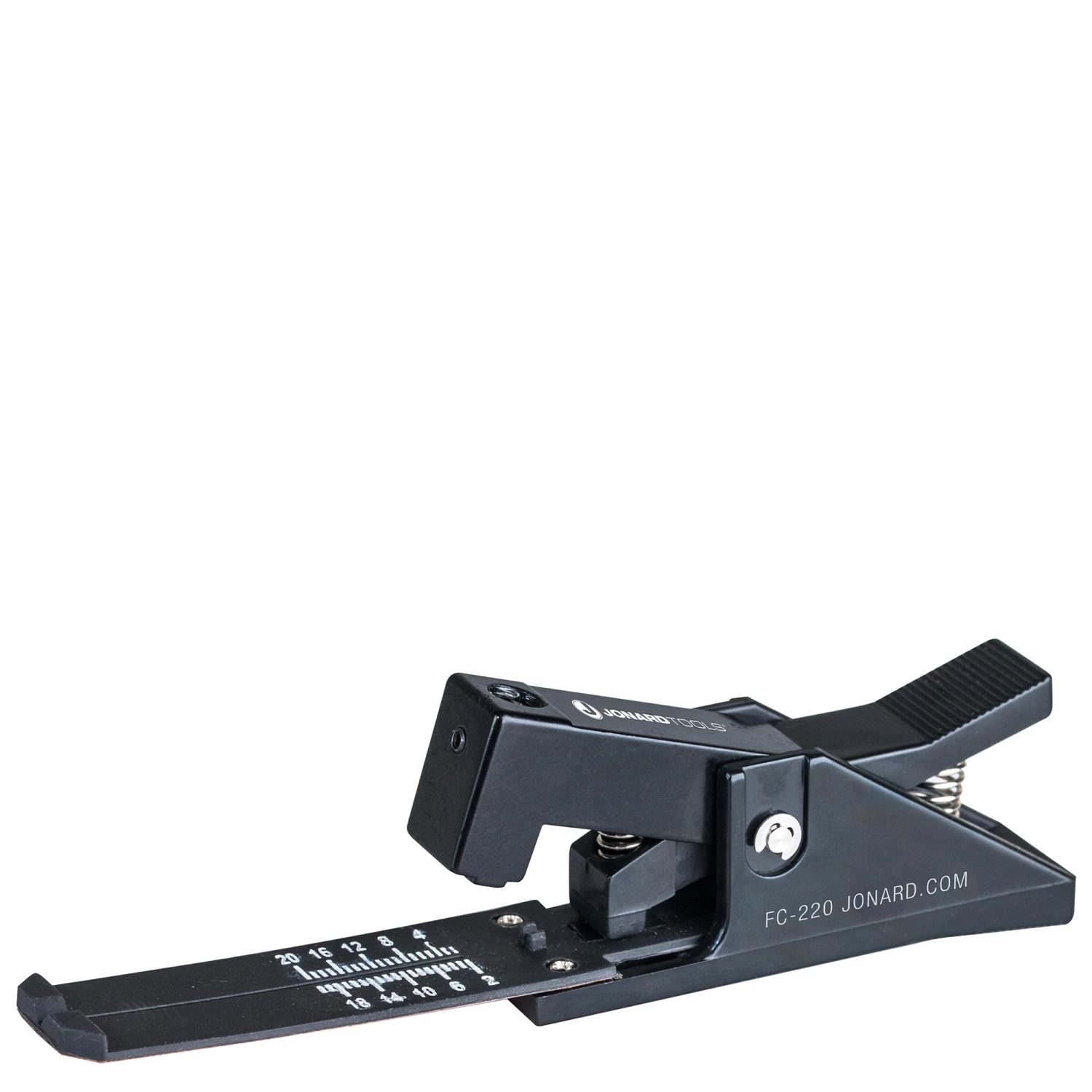

Jonard Tools Fiber Cleaver, 2.0 – 20.0 Mm Cleave Length

Product Description

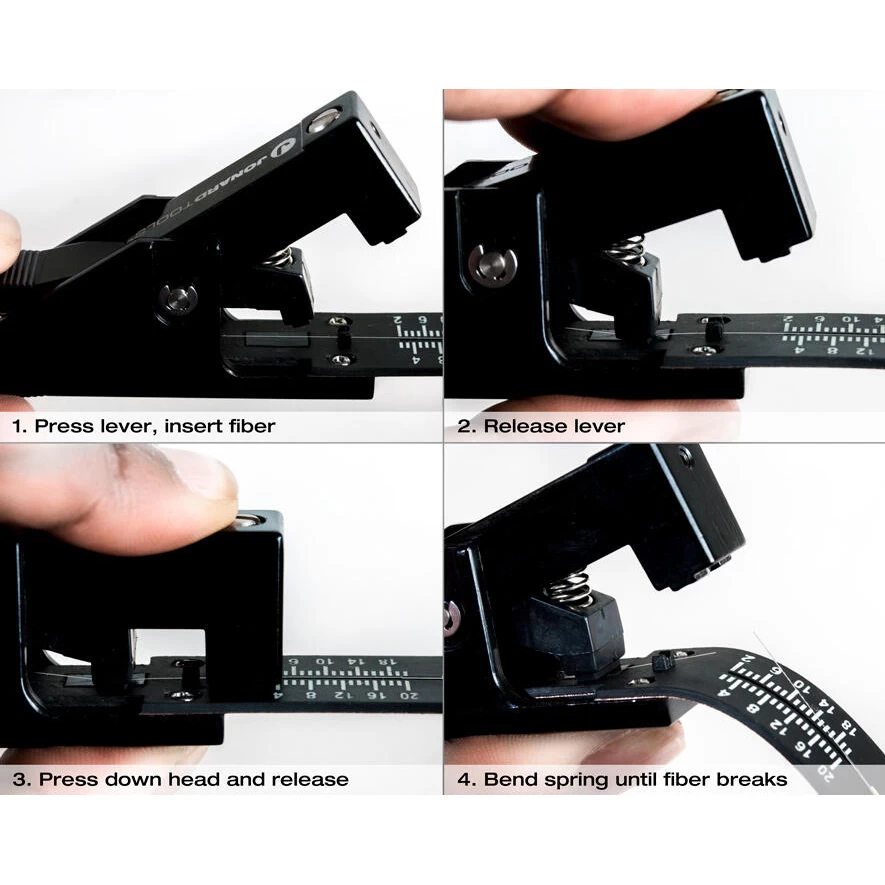

Designed to cleave either 900 µm buffered or 250 µm coated fiber, this fiber cleaver’s quick and easy three step operation is perfectly suited for mechanical splicing and quick field termination of fiber connectors. This fiber cleaver features the following:

Leaf spring scale is ruled to allow accurate and precise cleave lengths from 2 to 20 mm (0.079 inch to 0.79 inch)

Ultra-strong carbide blade will last up to 6,000 cleaves before needing to be replaced

Handles both single and multi-mode fibers with 125 µm cladding

Replacement Parts: FC-4 Replacement Blade and FC-65 Replacement Leaf Spring

Specifications

• Cleave Length 2.0 mm to 20.0 mm (0.079 inch to 0.79 inch)
• Dimensions 4.89 x 0.787 x 1.57 inches (124 mm x 20 mm x 40 mm)
• Operating Temperature 0 to 40°C
• Storage Temperature -20 to 60°C

Details

• Part #90J1-00022
• Warranty:Manufacturer Defect Limited
• UPC Number:811490017078
• Weight:0.11 lbs

Helpful Downloads

• PDF Spec Sheet
