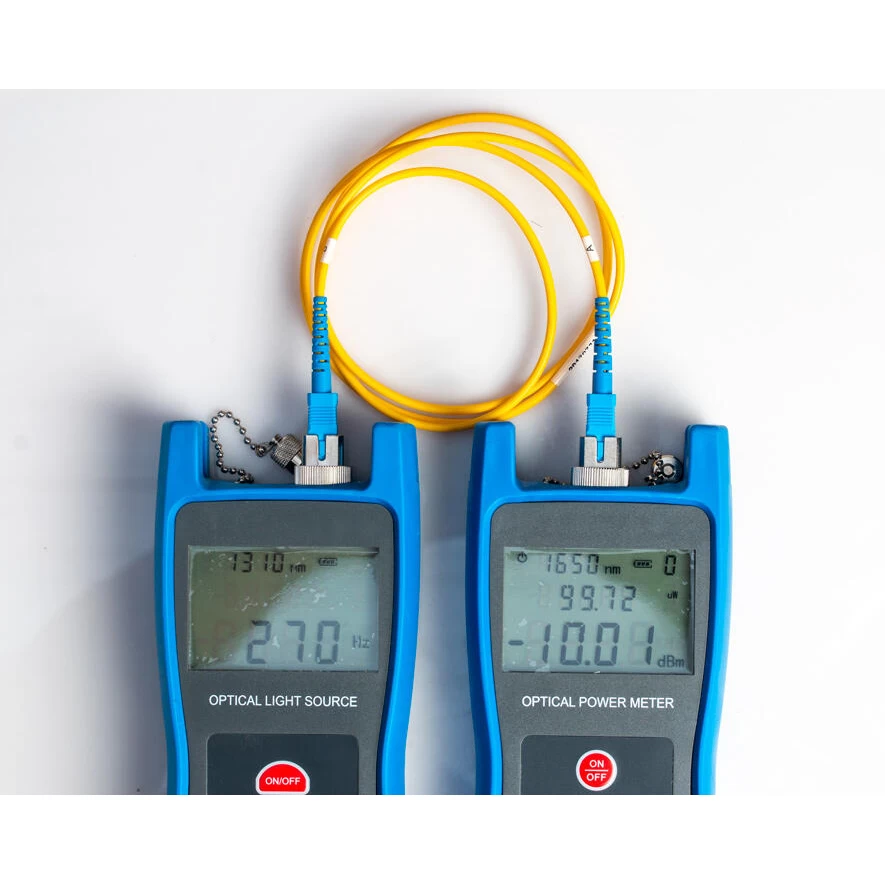

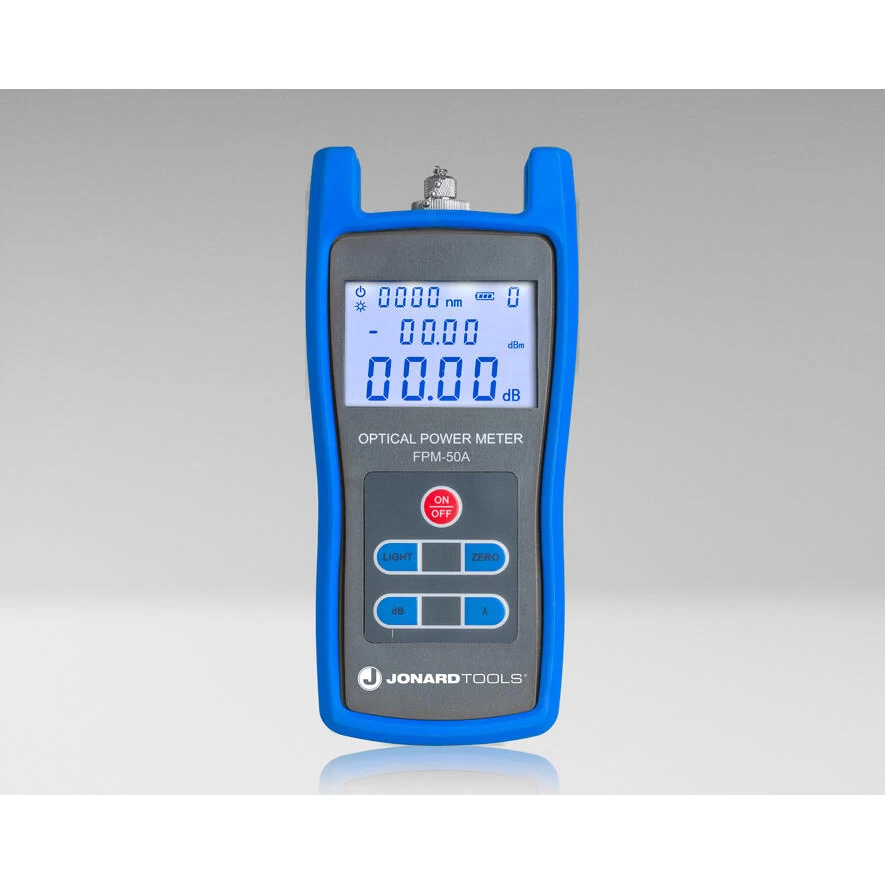

The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
- Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
- Special function of the unit allows the device to be manually calibrated as needed
- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime

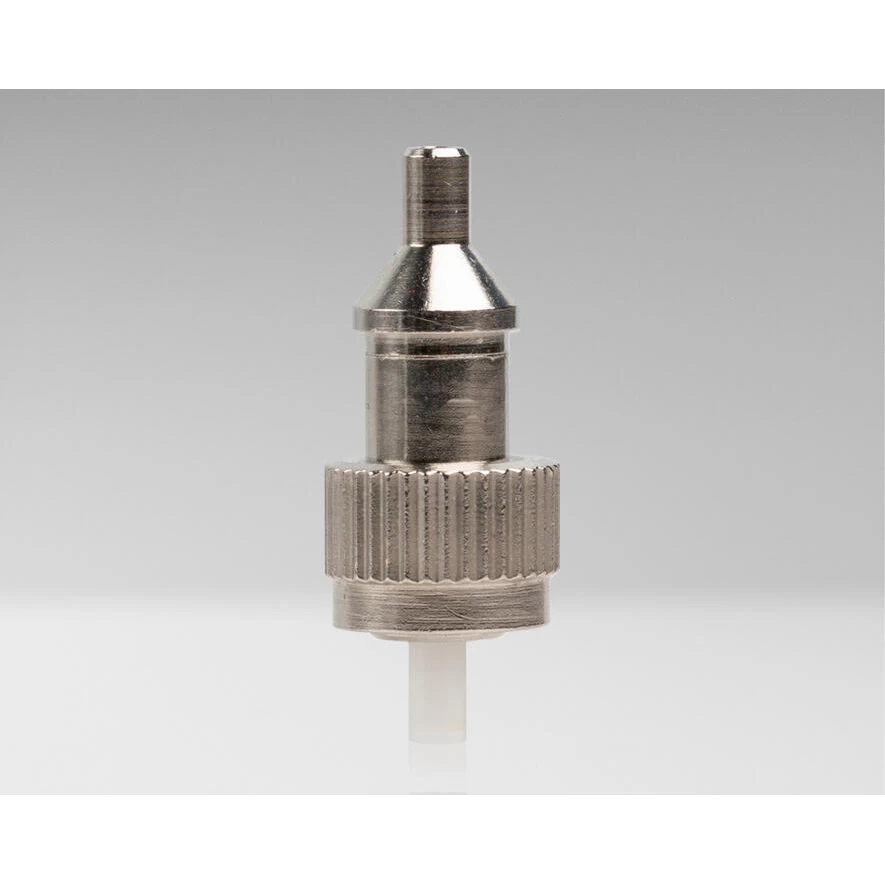

- Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only

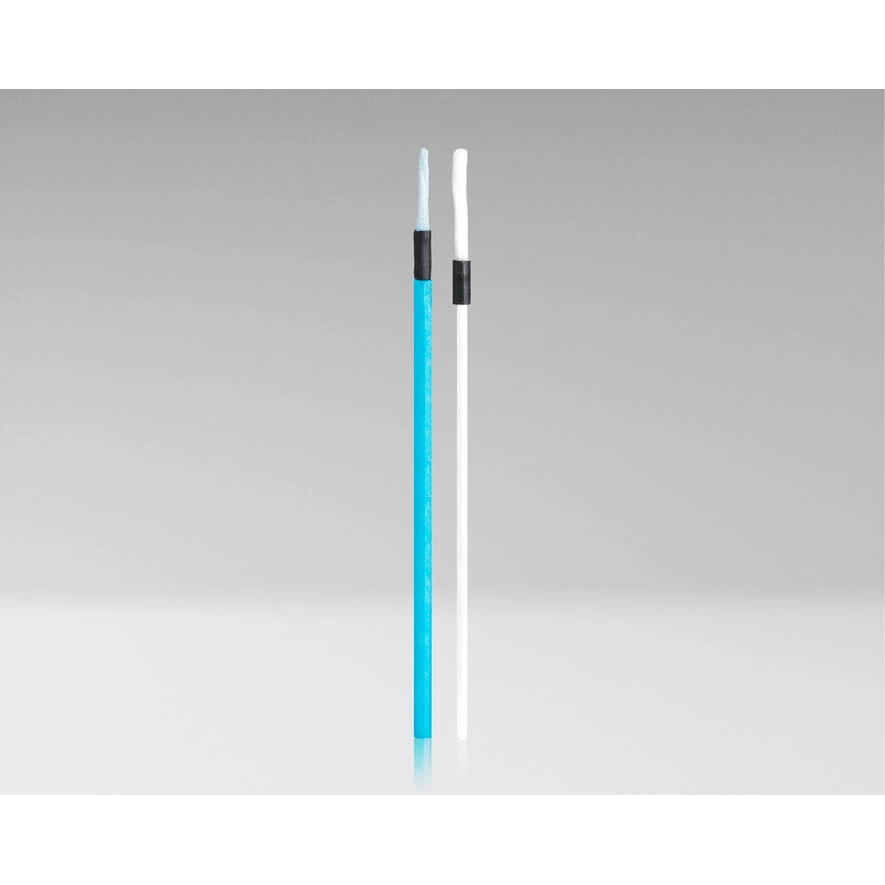

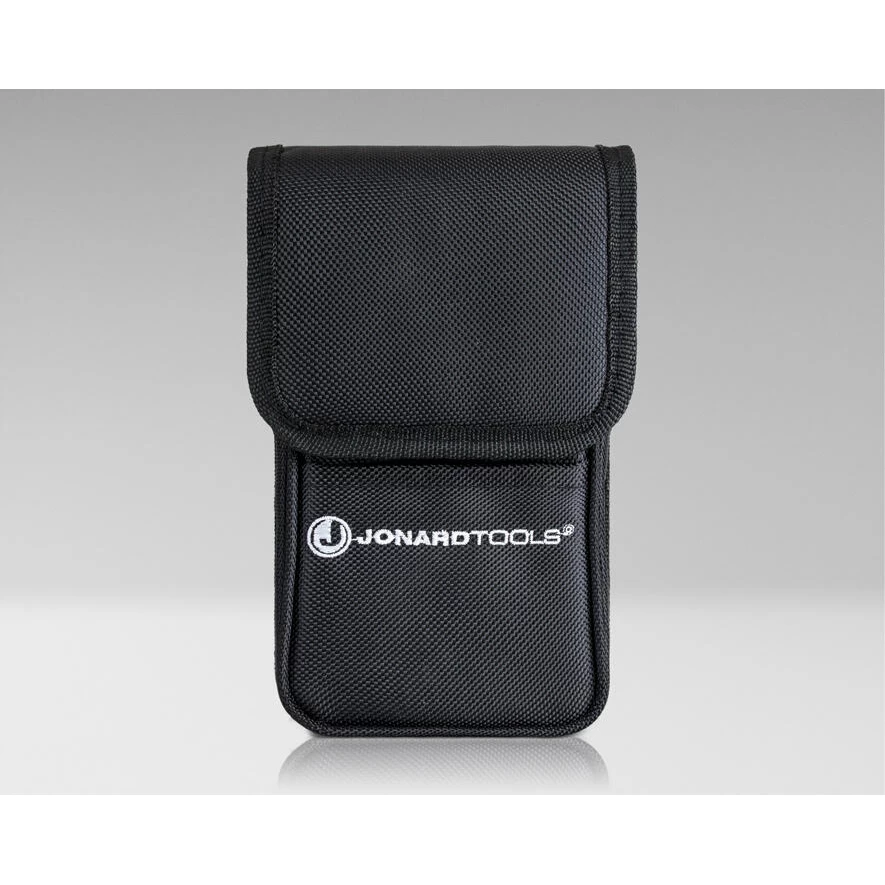

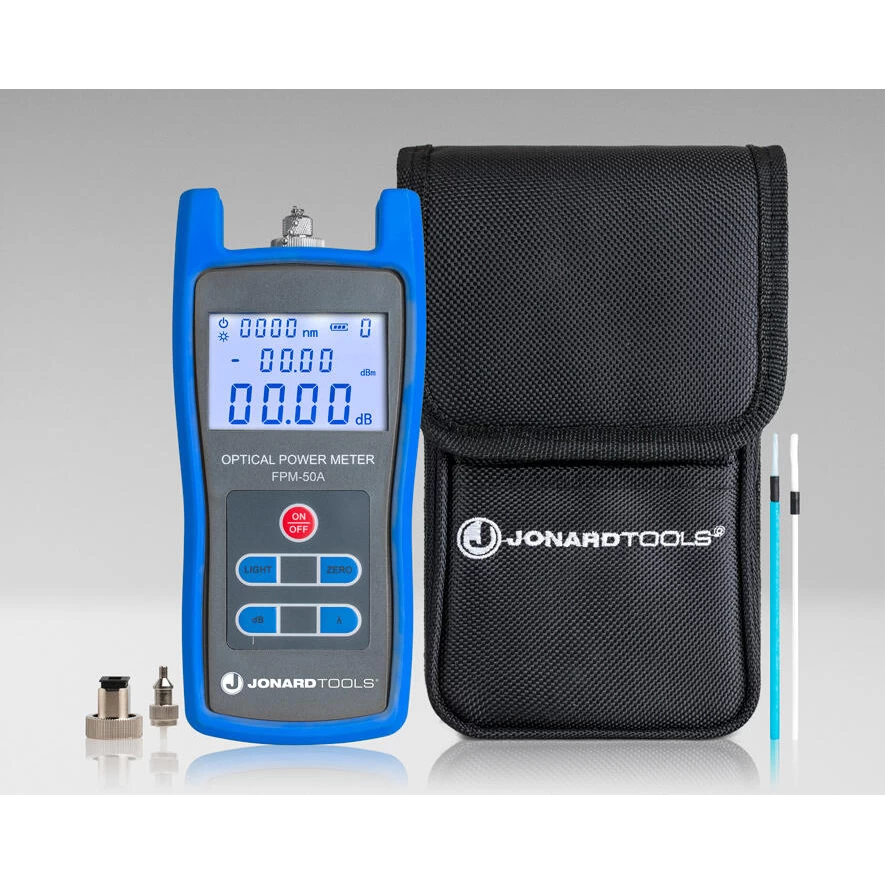

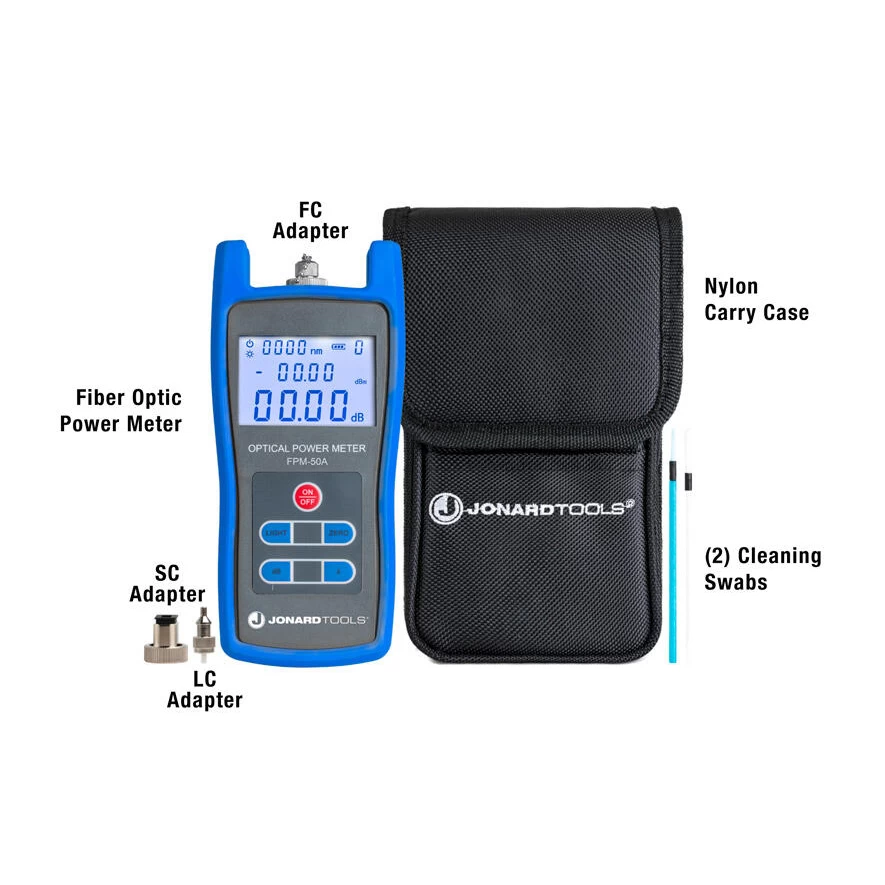

Includes: Fiber Optic Power Meter, Instruction Manual, Protective Cover, (3) AA Batteries (required for operation), (2) Cleaning Swabs, FC Adapter, LC Adapter, SC Adapter, & Nylon Carry Case
Measurement Range
- Measurement Range: -50 dBm to +26 dBm
- Included Adapters: FC, SC, LC
- Part #90J1-00007
- Warranty:Manufacturer Defect Limited
- UPC Number:811490019966
- Weight:0.50 lbs
Helpful Downloads
- PDF Spec Sheet
