Jonard Tools Multi Function OTDR

Product Description

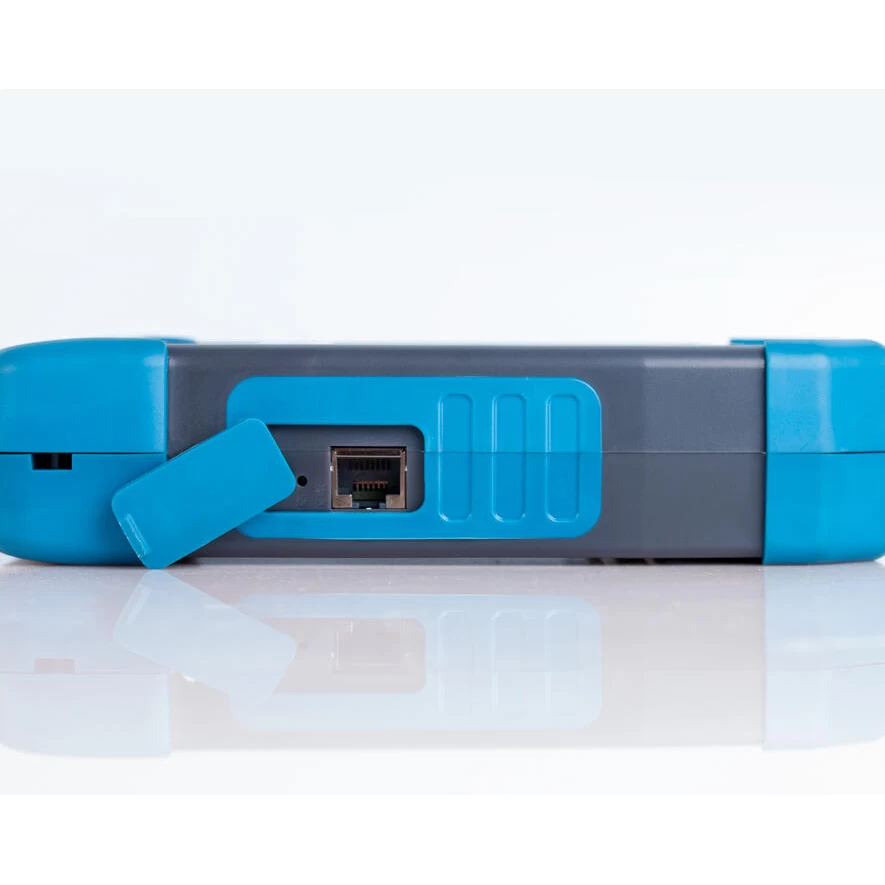

Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This Mini Pro OTDR also features the following:

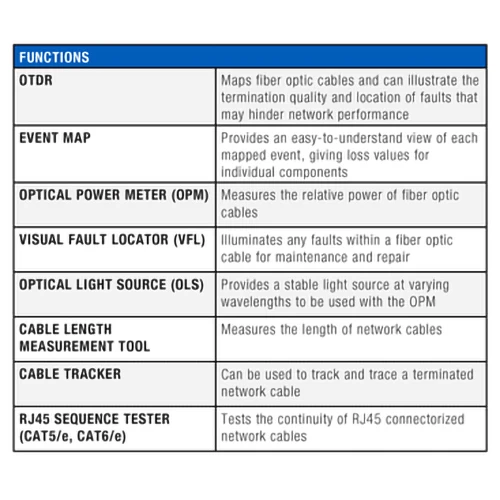

Includes 8 different functions for testing and evaluating fiber optic and network cables

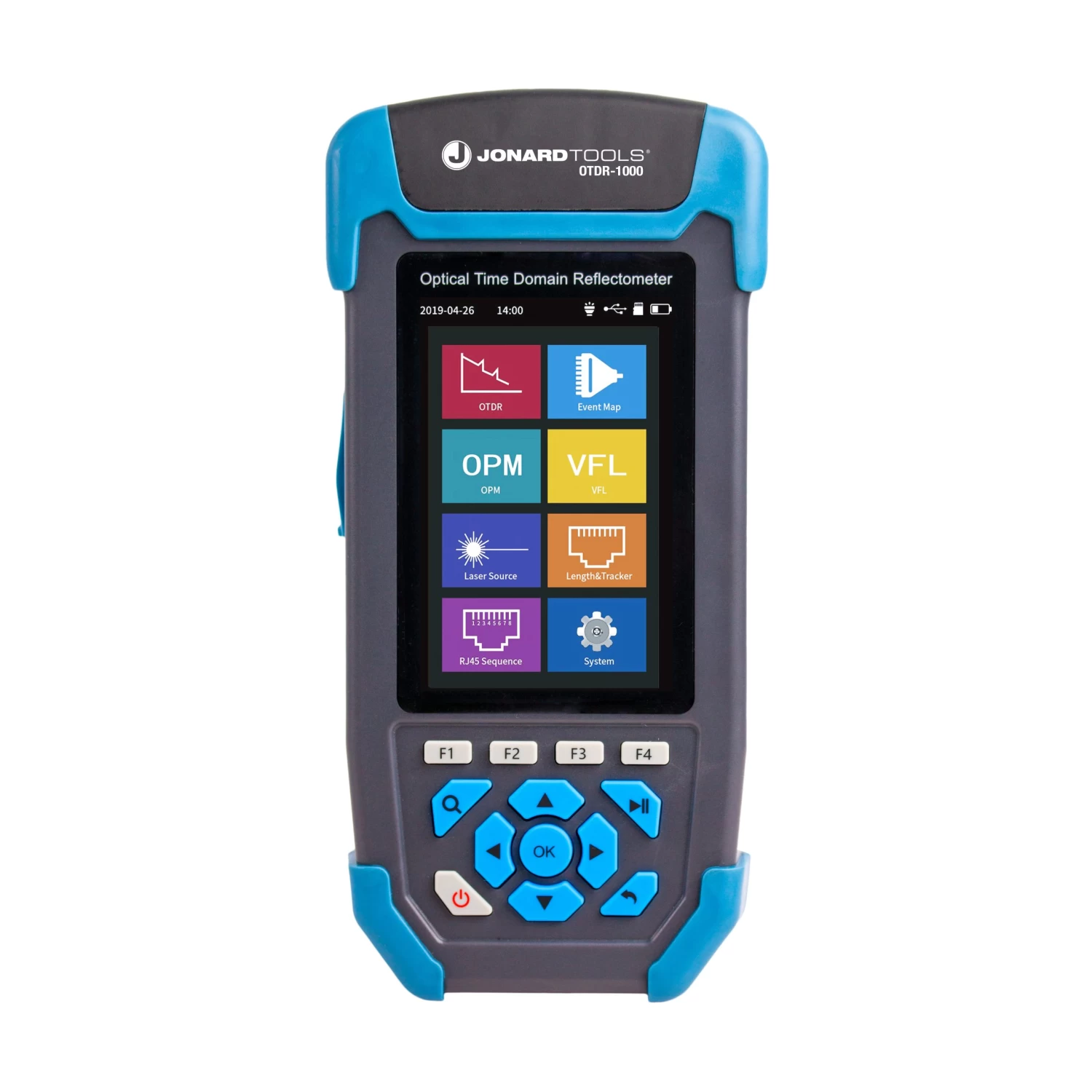

Bright 3.5 inch color LCD screen makes it quick and easy to evaluate data

Rubberized hard plastic case is shock-proof and drop-proof for maximum durability

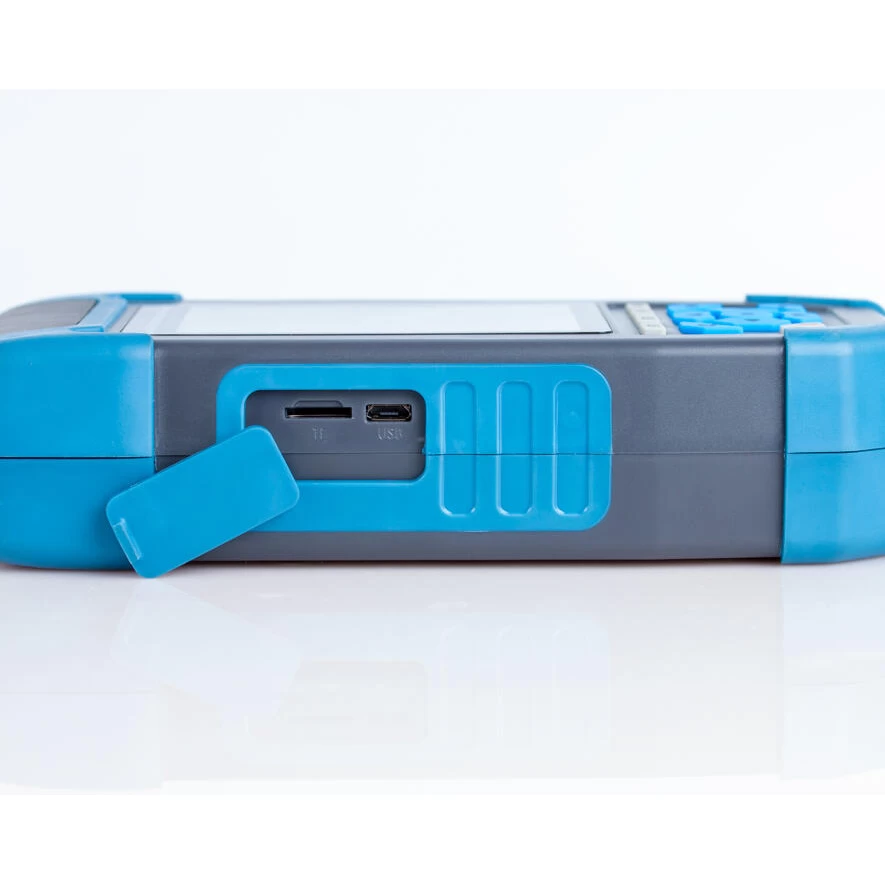

600 MB Internal storage with MicroSD/TF card slot for additional memory

Built-in rechargeable lithium ion battery provides power on-the-go

Can be charged or connected to a computer for data transfer via included micro-USB cable

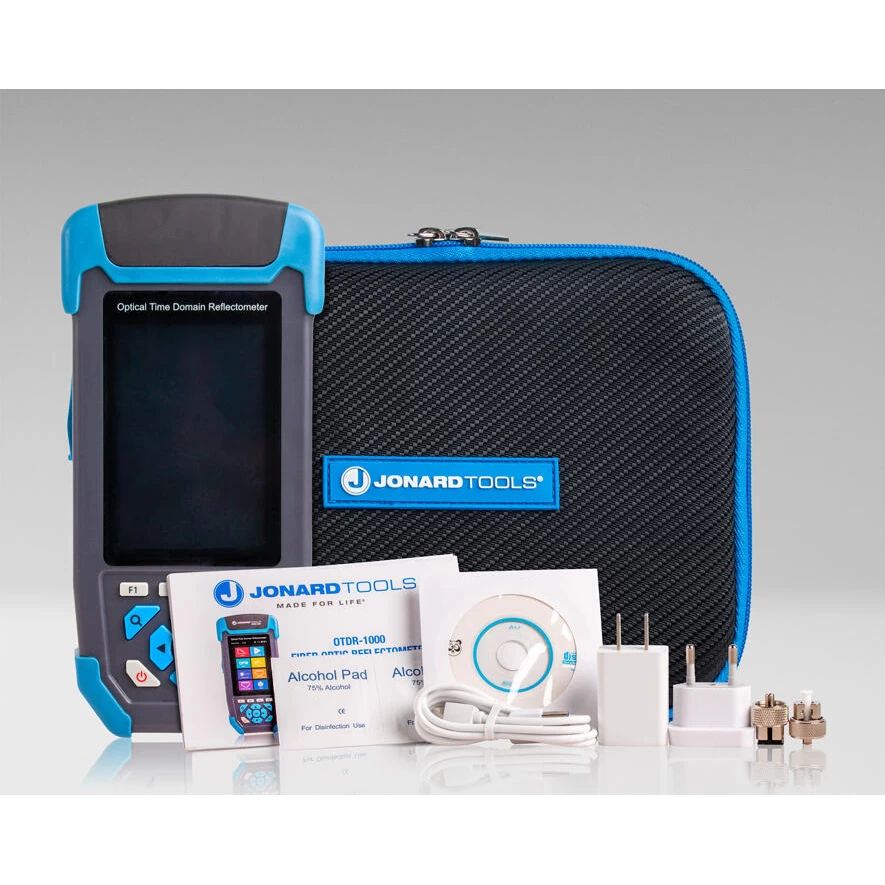

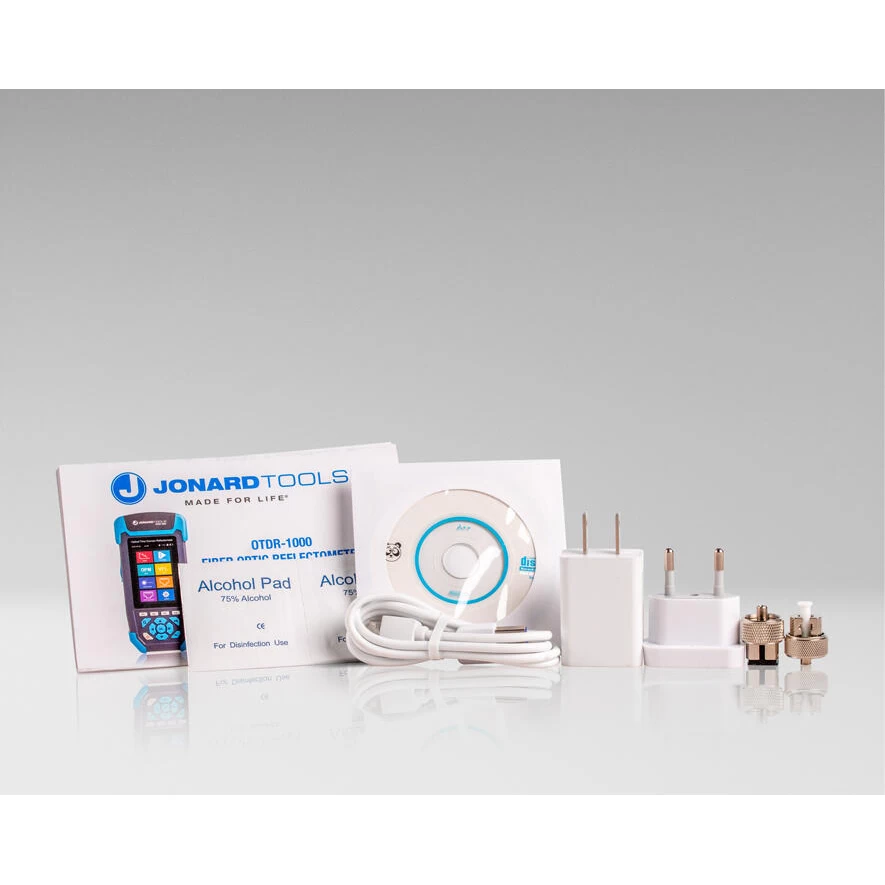

Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual

Specifications

• Wavelengths 1310nm/1550nm±20nm
• Fiber Type G.652 SingleMode Fiber
• Dynamic Range 24dB/22dB
• Event Blind Zone 3m
• ATT Blind Zone 8m
• Test Range 500m~60km
• Pulse Width 3ns~10us
• Range Accuracy ±（1m+Sampling Interval +0.005％×Test Distance)
• Loss Accuracy ±0.2dB/dB
• # of Sampling Points 16k~128k
• Sampling Resolution 0.05m~8m
• Reflection Accuracy ±3dB
• Data Storage Internal：≥600；External：TF Card
• Laser Safety Level Class IIIA
• File Format SOR Standard File Format

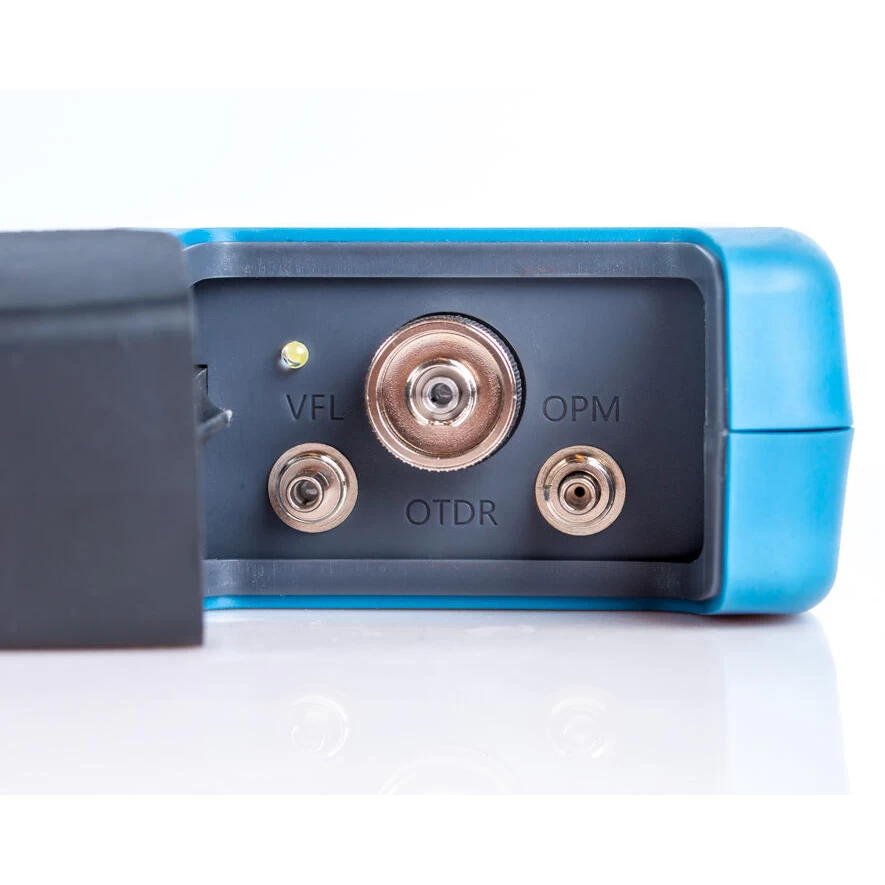

• Included Connectors for OTDR FC, SC, LC (PC/UPC)

Details

• Part #90J1-00009
• Warranty:Manufacturer Defect Limited
• UPC Number:810053350669
• Weight:2.06 lbs

Helpful Downloads

• PDF Spec Sheet
