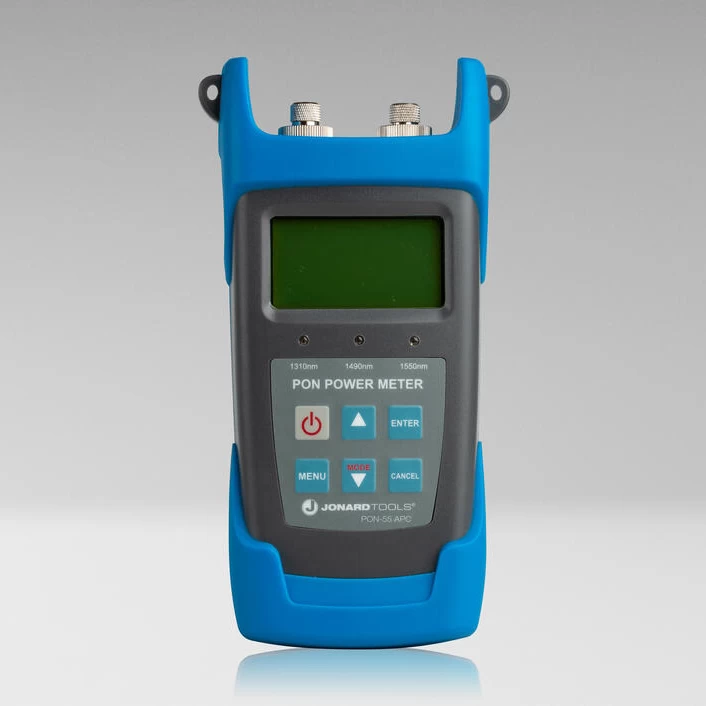

Jonard Tools Passive Optical Network Power Meter For BPON/EPON/GPON, APC

Product Description

Designed to perform live testing with OLT equipment, this PON Power Meter with APC connectors is perfect for use during FTTx/PON service turn-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems. This Power Meter also features the following:

Includes APC/FC Adapters and APC/SC Adapters to directly connect to UPC/PC FC and SC fiber connectors

Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems

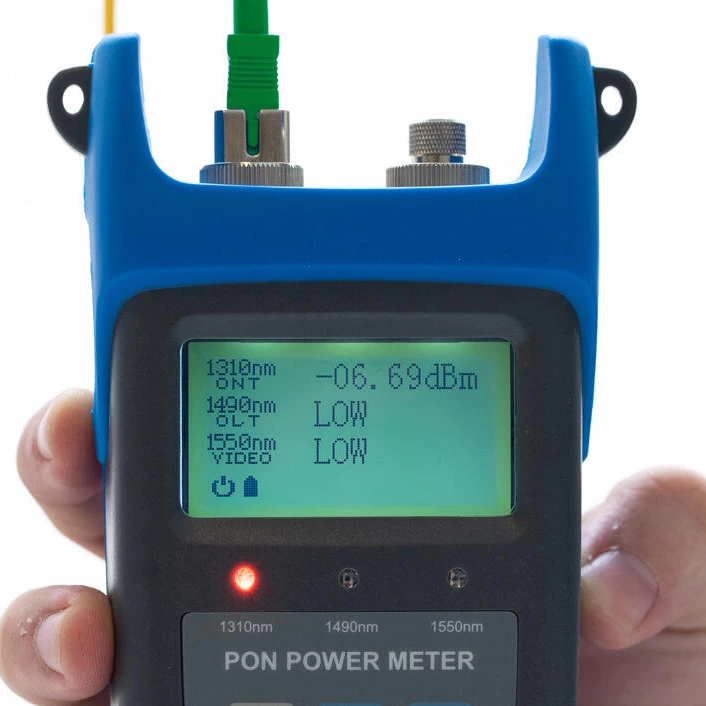

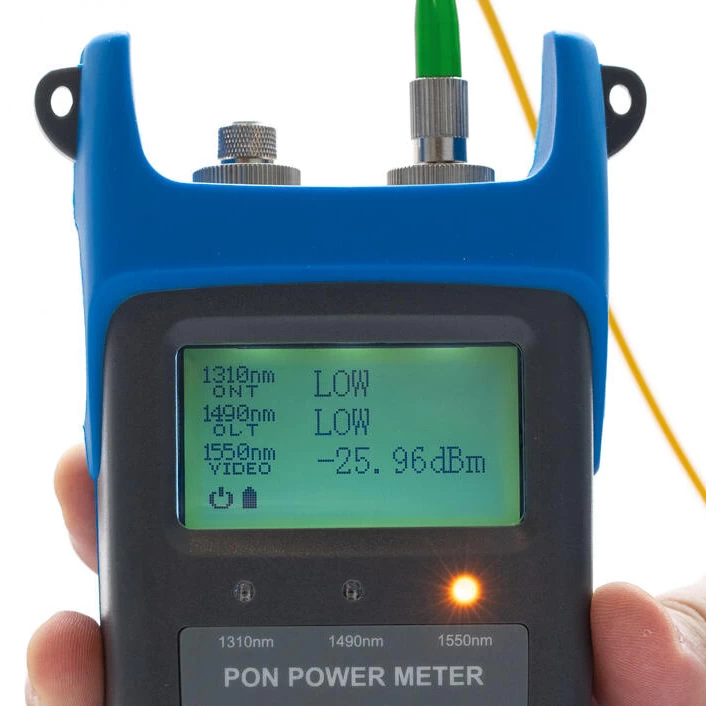

Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network

Three pass, warning, and fail LED indicators to allow you to quickly assess your network’s power level

Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements

USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once

Optional 10 minute auto-off can be activated or deactivated

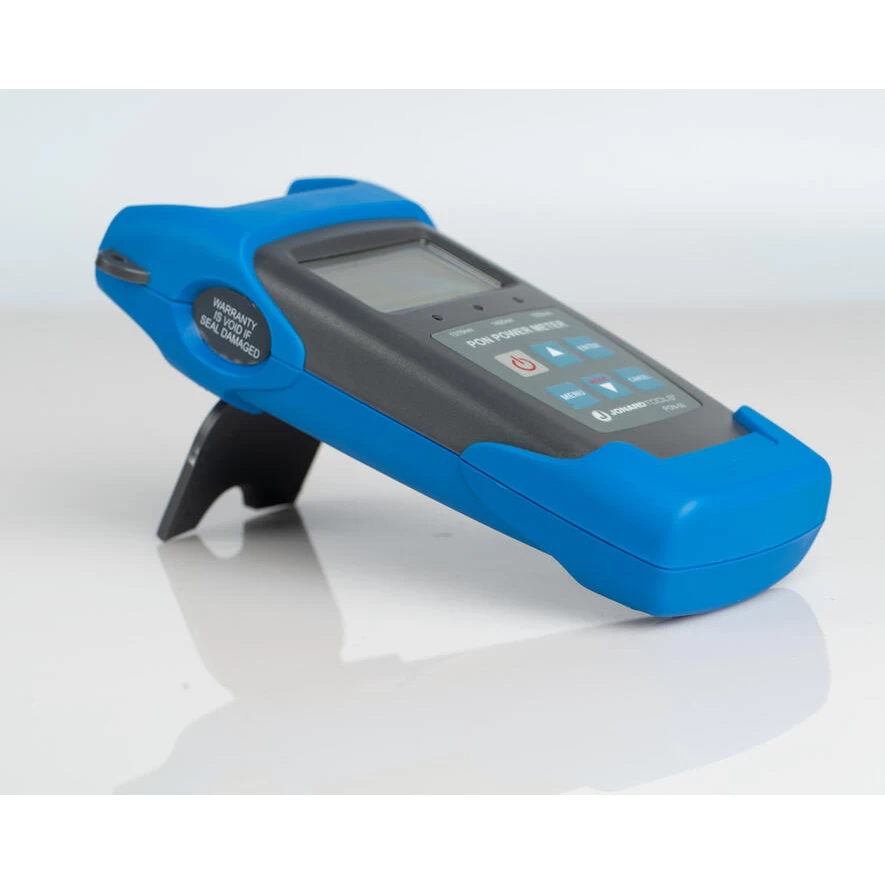

Shatter-resistant sleeve protects it from accidental falls or other damage

Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC

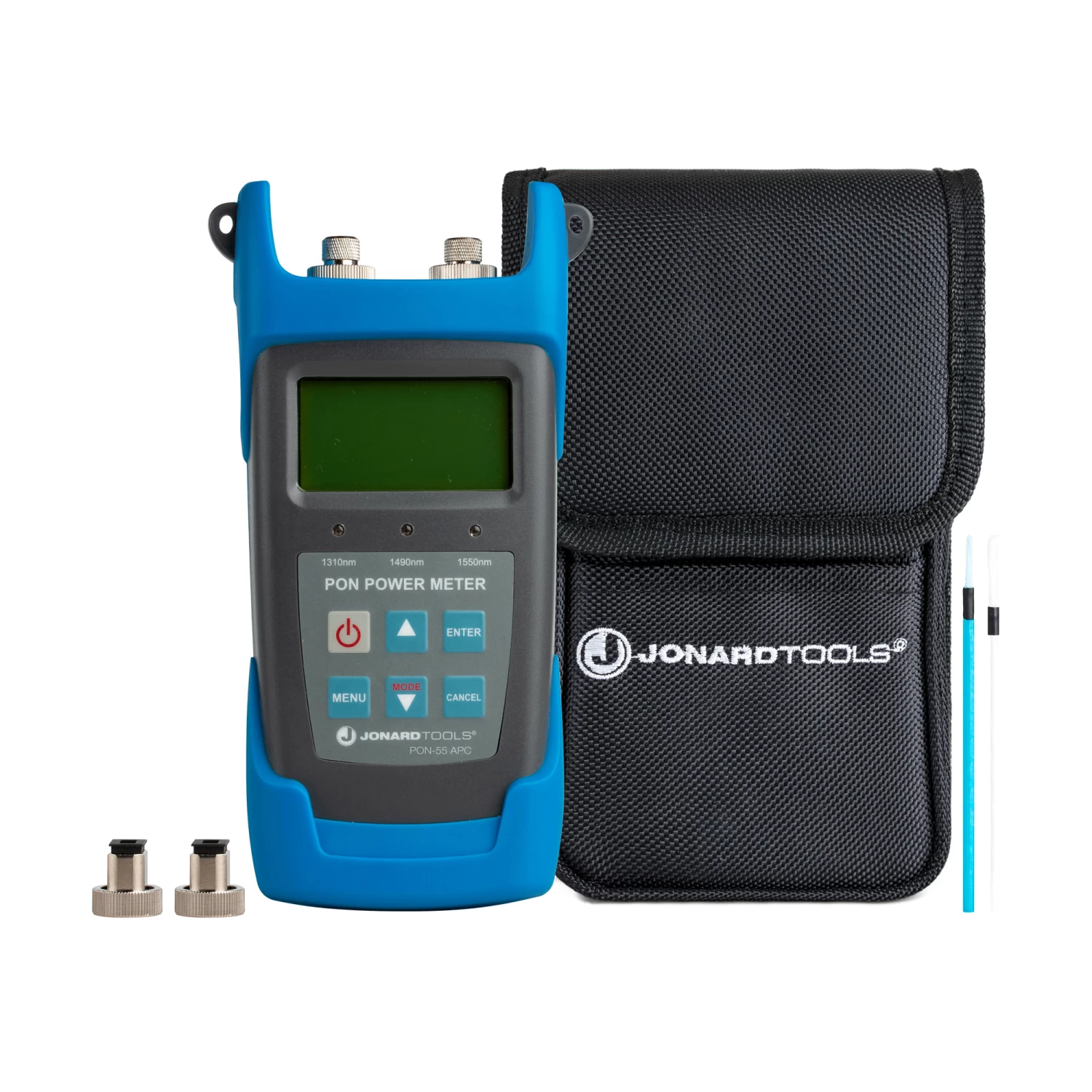

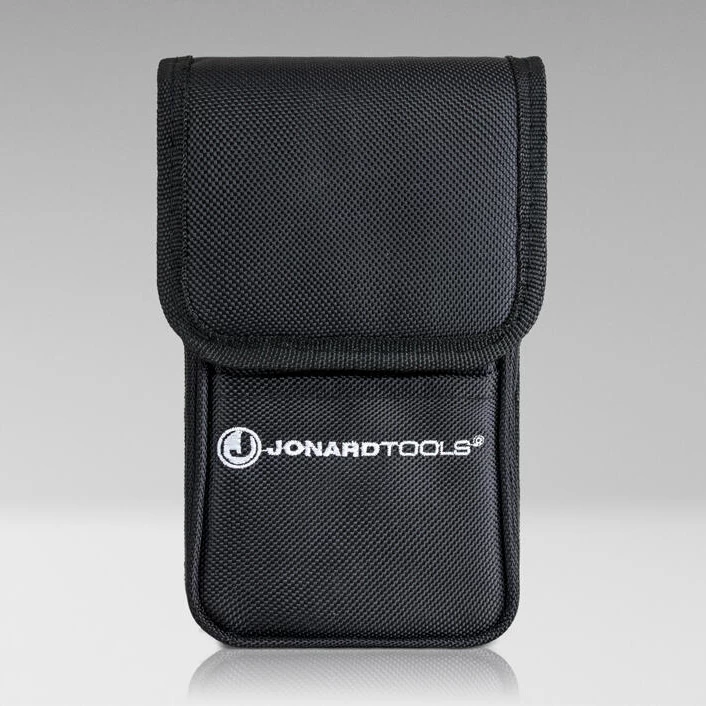

Includes: PON Power Meter, (2) APC/FC Adapters, (2) APC/SC Adapters, Carrying Case, Instruction Manual, Mini USB Cable, and (3) AA Batteries

Specifications

• Network Types BPON/EPON/GPON

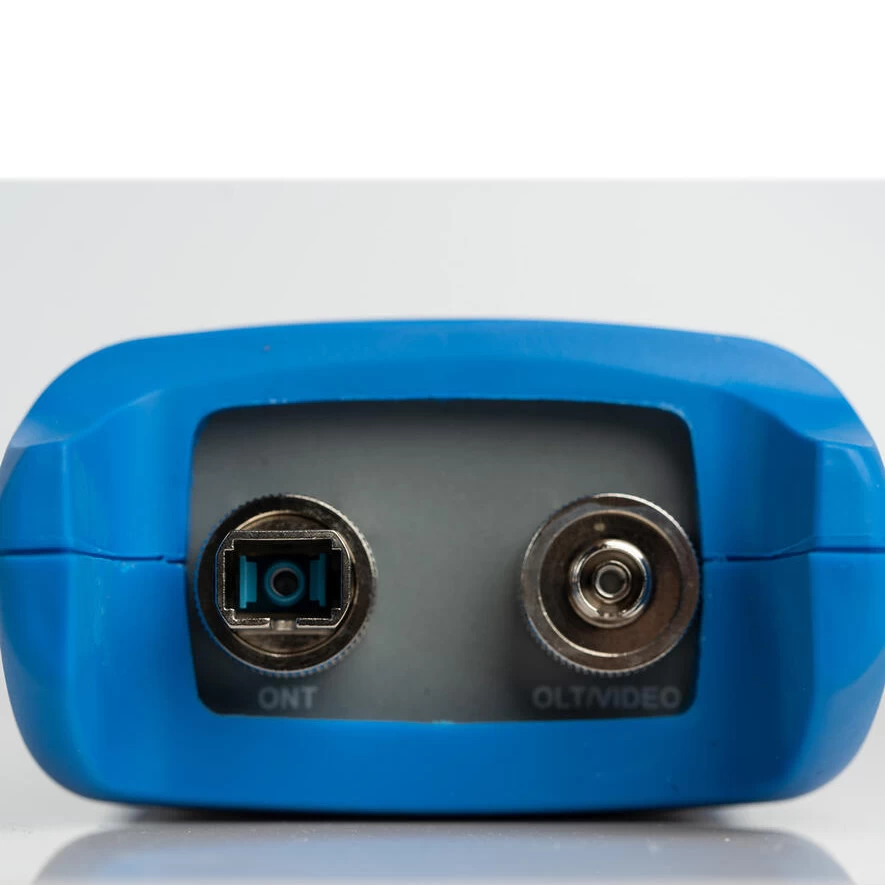

• Connector Types FC/SC (APC)
• Wavelengths 1310 nm, 1490 nm, 1550 nm
• Measurement Range -35 dBm～+10 dBm @ 1310/1490 nm, -35dBm～+10dBm @ 1550 nm
• Max Output Power 15 dBm @ 1310/1490/1550 nm
• Detector Type InGaAs
• Connatural Uncertainty (dB) ±0.5 dB
• Linearity (dB) ±0.1 dB
• Batteries (3) 1.5V AA
• Battery Life 90 Hours
• Operation Temperature -10℃～60℃

Details

• Part #90J1-00008
• Warranty:Manufacturer Defect Limited
• UPC Number:810053350348
• Weight:0.93 lbs

Helpful Downloads

• PDF Spec Sheet
