Jonard Tools Singlemode Fiber Optic Launch Cable, 350 M, SC/UPC-LC/UPC

Product Description

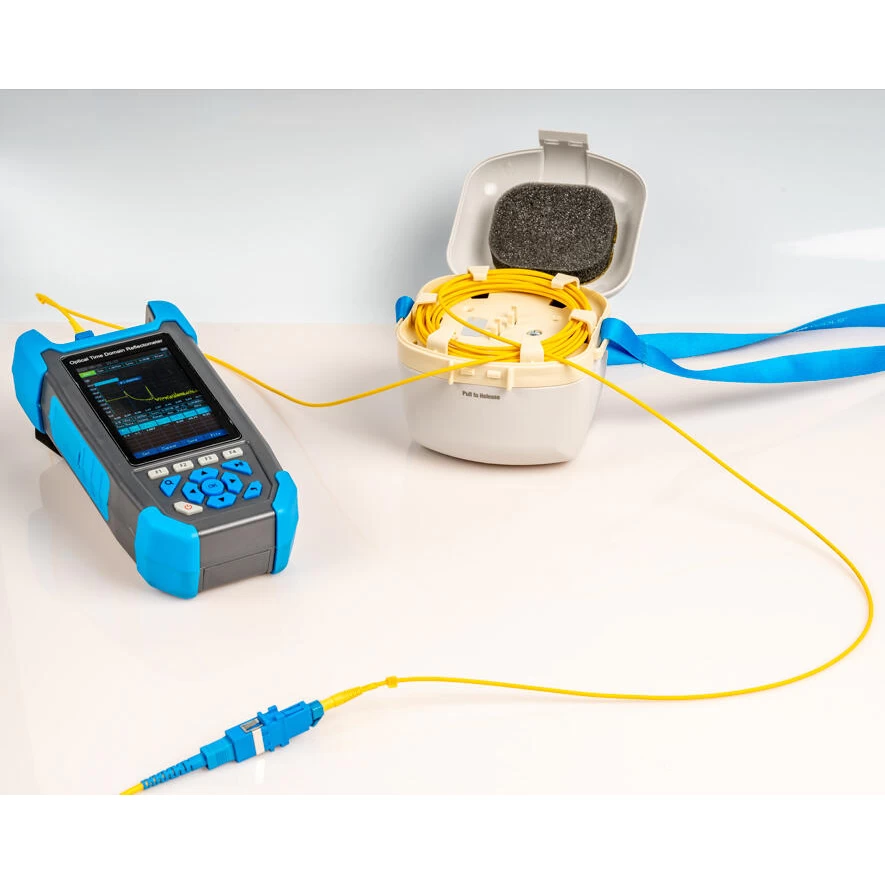

Designed with unique compact housing and 350 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following:

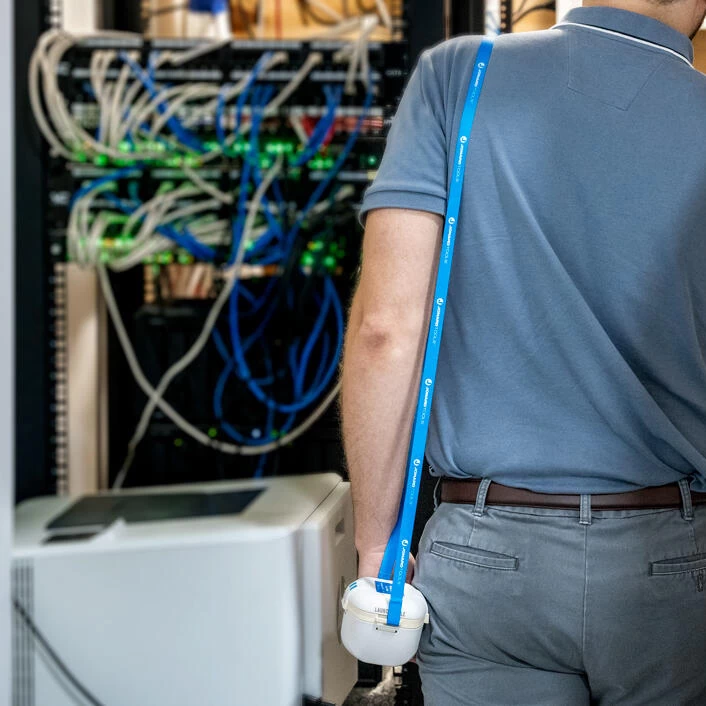

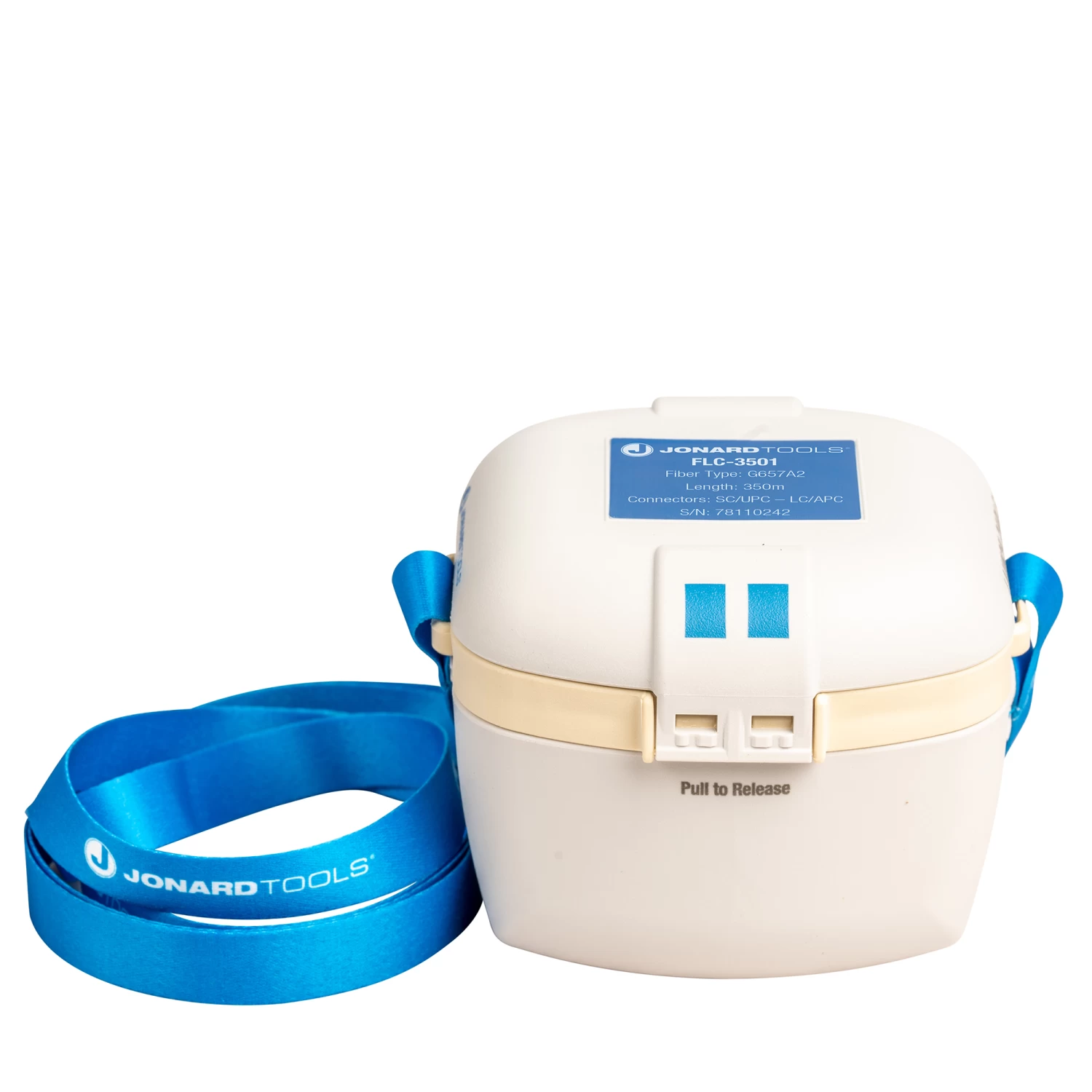

Compact housing and shoulder strap make this perfect for on-the-go use

Terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility

Polishing types are color coded for quick and easy identification of the launch cable

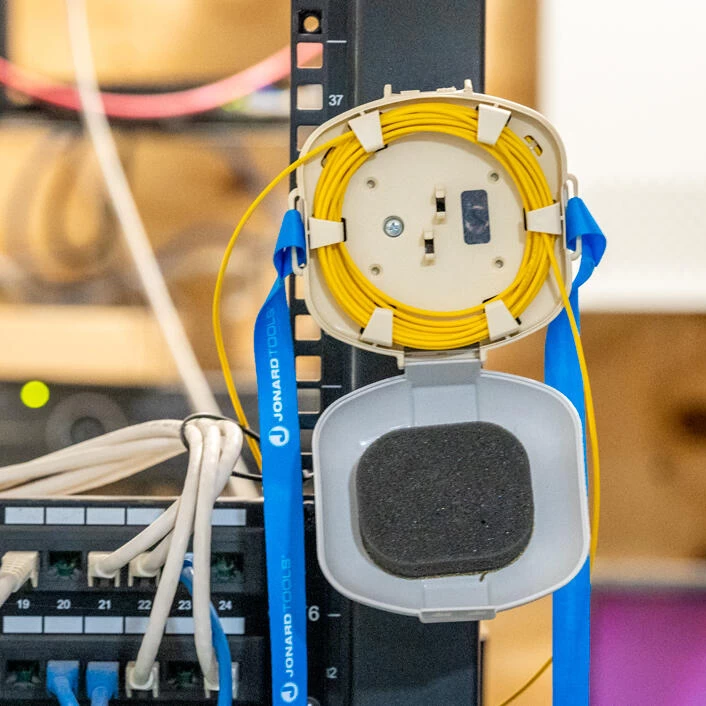

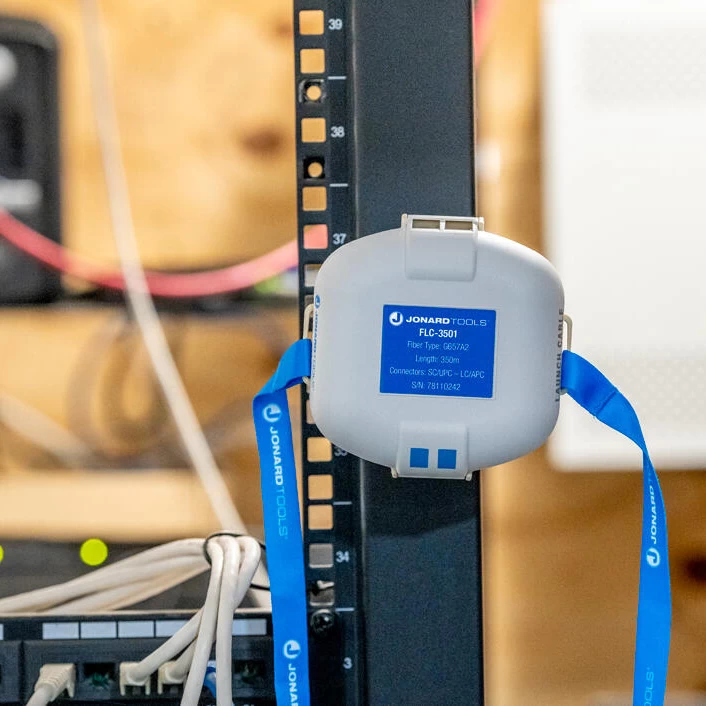

Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks

1148 ft (350 m) length of fiber is perfect for most OTDR testing applications

Specifications

• Cable Length 1148.29 ft (350 m)
• Connector Types SC/UPC, LC/UPC
• Input/Output Length 4.9 ft (1.5 m)
• Max Insertion Loss @ 1310 nm ≤ 0.35 dB/km
• Max Insertion Loss @ 1550 nm ≤ 0.22 dB/km
• Max Insertion Loss @ 800 nm ≤ 2.50 dB/km
• Max Insertion Loss @ 1300 nm ≤ 0.70 dB/km
• SM Connector Insertion Loss ≤ 0.1 dB
• Return Loss RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC)

Details

• Part #90J1-00024
• Warranty:Manufacturer Defect Limited
• UPC Number:810053352298
• Weight:0.98 lbs
