Jonard Tools Visual Fault Locator Kit – FC, SC, ST, & LC

Product Description

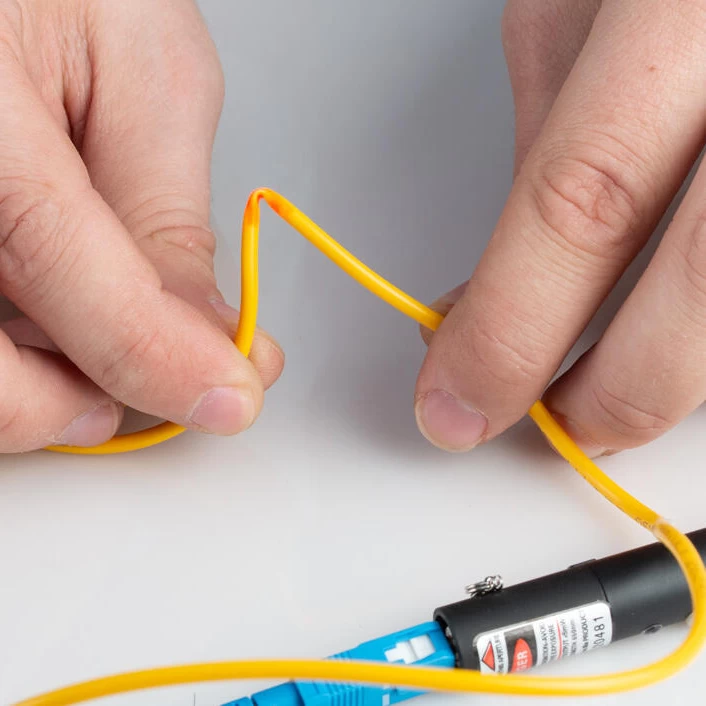

Designed to detect fiber breakpoints, fiber leaks, poor connections, and stress points, this visual fault locator is perfect for field personnel detecting faults in fiber optic cables. This VFL Kit features the following:

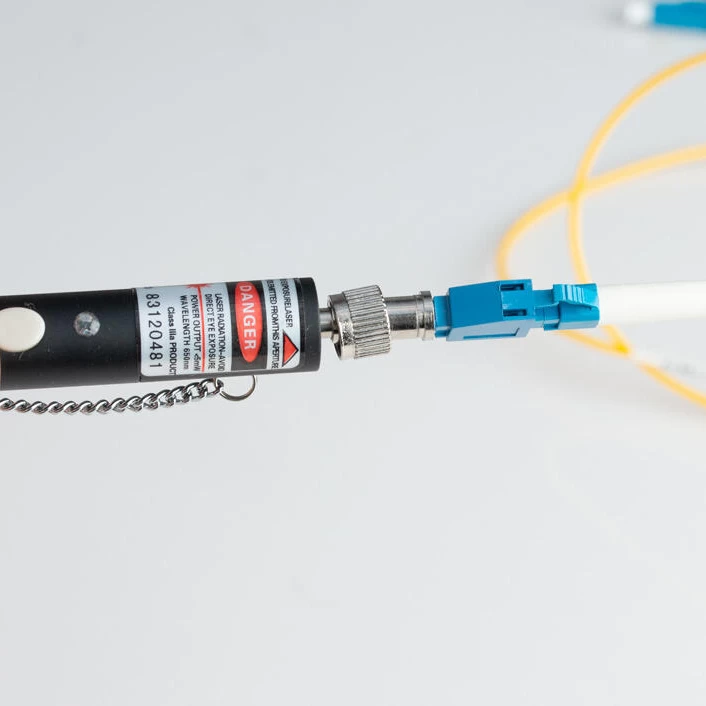

Includes adapter for 1.25 mm LC connectors

650 nm Class IIIA laser diode identifies faults in single and multi-mode fiber up to 3 miles long

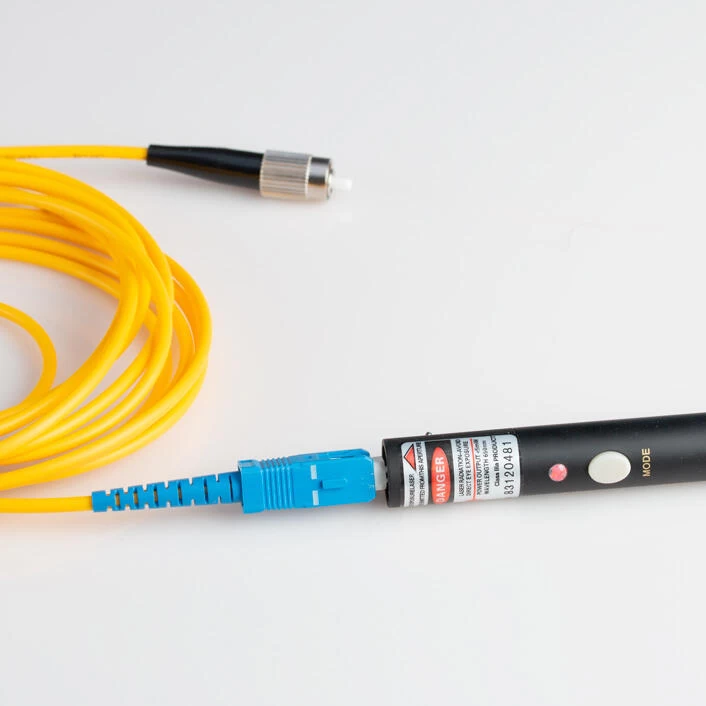

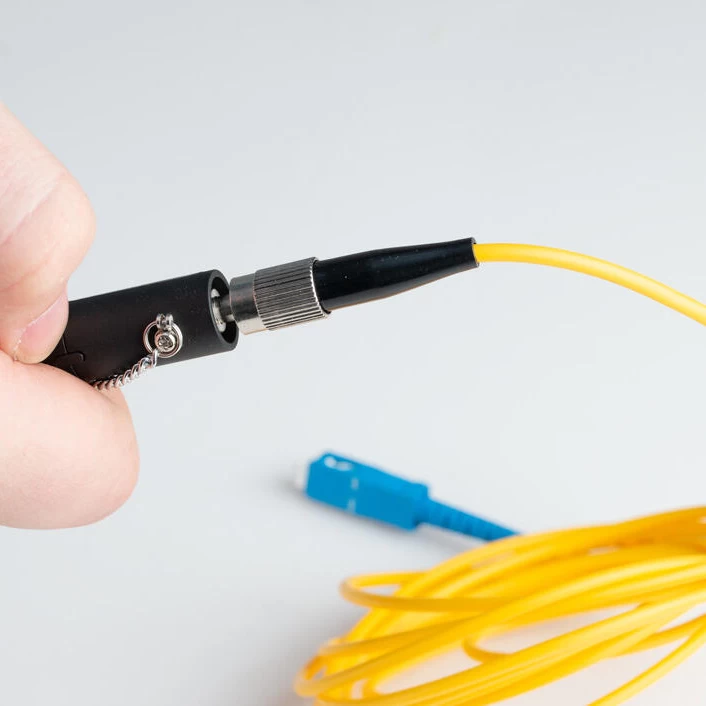

Universal connector accommodates 2.5 mm ferruled connectors, such as FC, SC, and ST connectors

Has three different modes: Continuous wave, pulsing, and slower pulsing mode

Works in OTDR dead zones and is used for end-to-end visual fiber identification

Light and portable pen-style design is perfect for on the go use

60 hours of battery life powered by two AAA batteries (included)

Kit includes

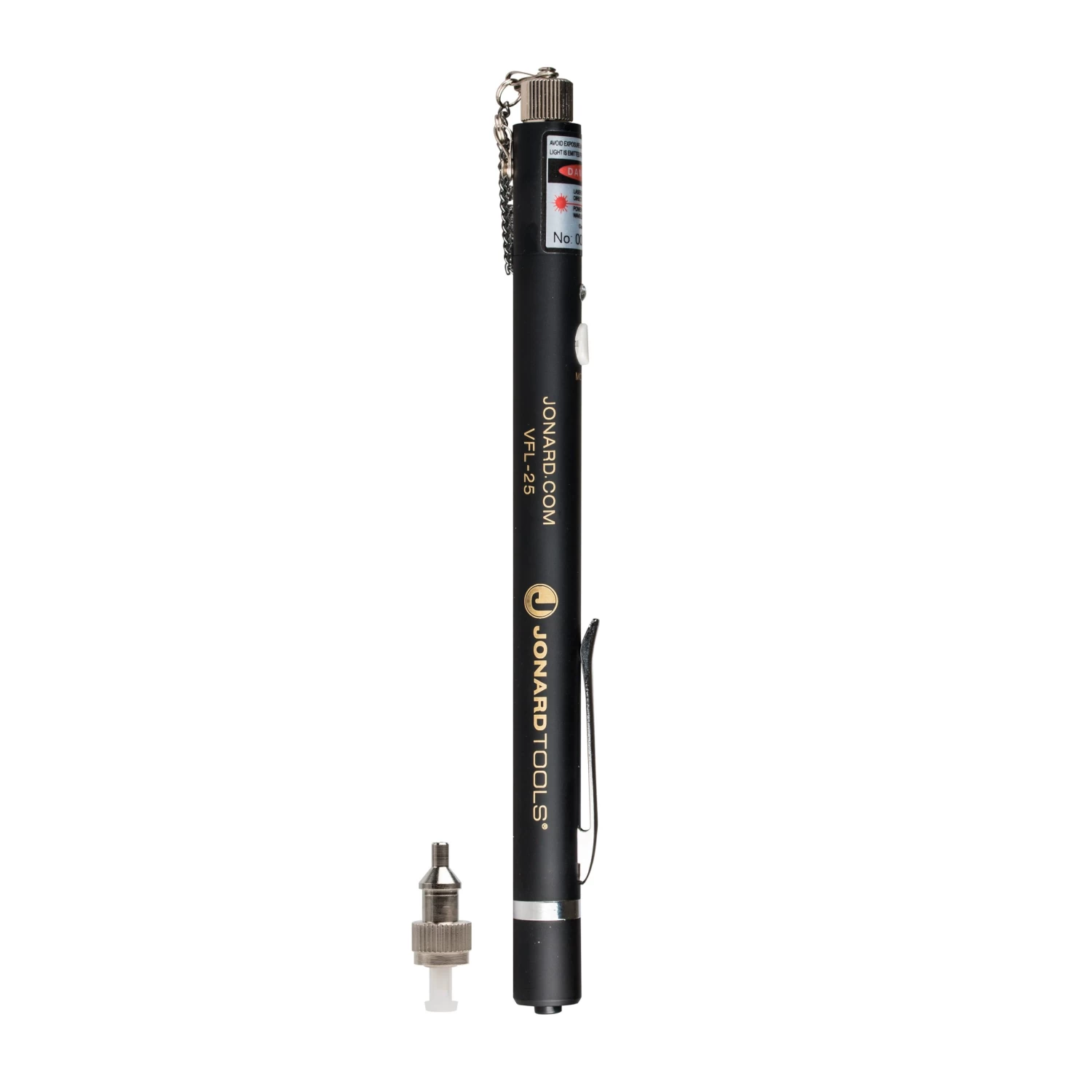

• VFL-25 Visual Fault Locator
• VFL-25125 FC to LC Adapter

Specifications

• Fiber Connector FC, SC, ST & LC
• Light Source Class IIIA Laser Diode
• Distance Up to 5 km (3.10 miles)
• Wavelength 650 nm
• Working Temperature -4°F to 140°F (-20°C to 60°C)
• Storage Temperature -40°F to 185°F (-40°C to 85°C)
• Power 2 AAA Batteries
• Battery Life 60 hours

Details

• Part #90J1-00014
• Warranty:Manufacturer Defect Limited
• UPC Number:811490016002
• Weight:0.16 lbs

Helpful Downloads

• PDF Spec Sheet
