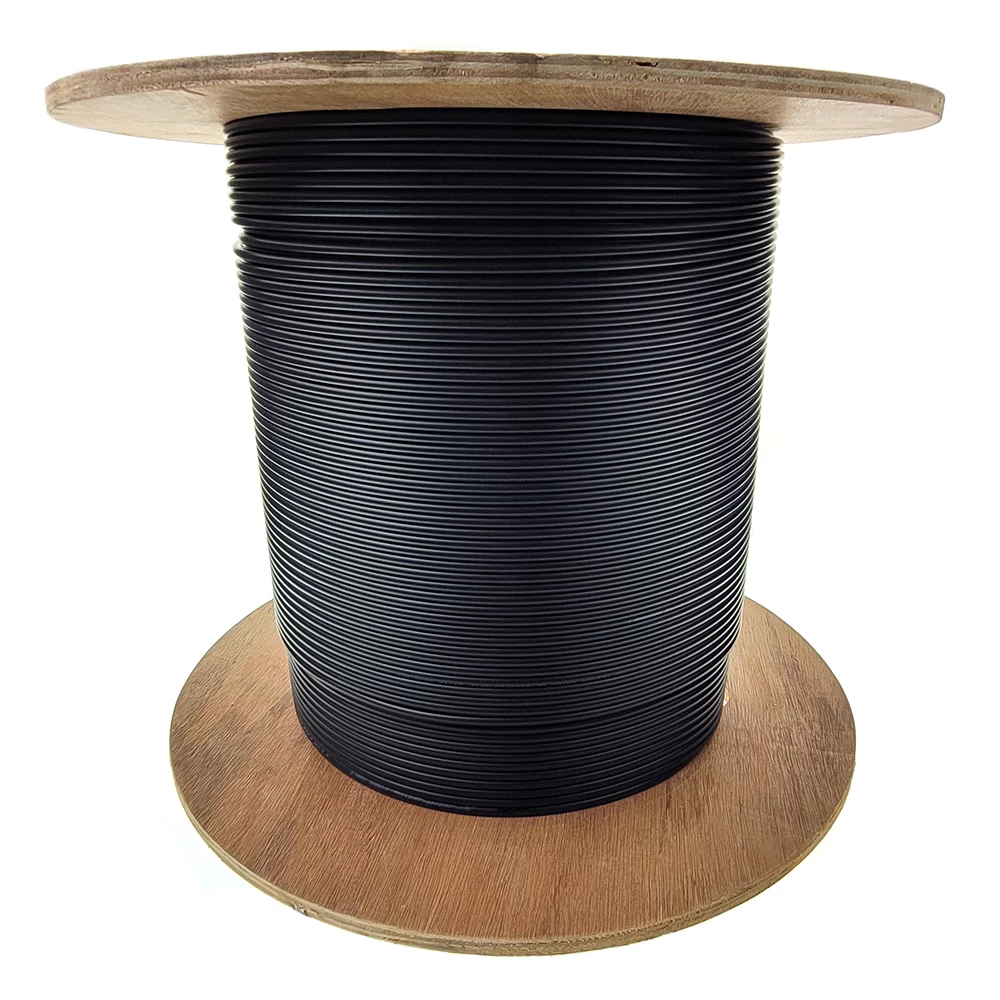

Outdoor Riser 2-Strand OS2 Black Fiber Optic Cable, Spool 1000ft

Product Description

Cablewholesale 2-strand Indoor/outdoor Tight-Buffered singlemode fiber optic Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is light weight, softness and easy to peel. The core and cladding of our black outdoor and riser rated 9/125 fiber optic cable is constructed using YOFC FullBand® Plus fiber complies with the ITU-T Recommendation G.652.D and the IEC 60793-2-50 type B1.3 Optical Fiber Specification. It is widely used as pigtails and jumpers for communication equipment.

Application

• Widely used in FTTH access network
• Telecommunication Networks
• CCTV Networks
• Data Communications Networks
• Local Area Networks

Features

• Widely used between wiring closet and equipment rooms
• Tested to meet or exceed TIA&GR-409-CORE standards
• Non-unitized tight-buffered distribution indoor cable
• Light weight and buffered to 900μm for easy stripping and handling
• Characteristic of fiber color: blue/orange/green/brown /grey/white/red/black/yellow/purple/pink/aqua

Details

• G.652.D and the IEC 60793-2-50 type B1.3 Optical Fiber Specification compliant
• Designed for operation over the full optical spectrum from 1260-1625 nm
• Lower attenuation over the full optical spectrum from 1260 nm to 1625 nm
• Supports high-speed transmission technologies such as DWDM and CWDM
• Compatible with existing 1310 nm equipment
• Good protection and excellent strip force stability
• Accurate geometrical parameters that insure low splicing loss and high splicing efficiency

Details

• Part #10E3-002NH
• Warranty:Lifetime
• UPC Number:846568051876
• End 1:Bare end
• End 2:Bare end
• Length:1000 feet
• Color:Black
• Weight:15.00 lbs

Helpful Downloads

• PDF Spec Sheet
