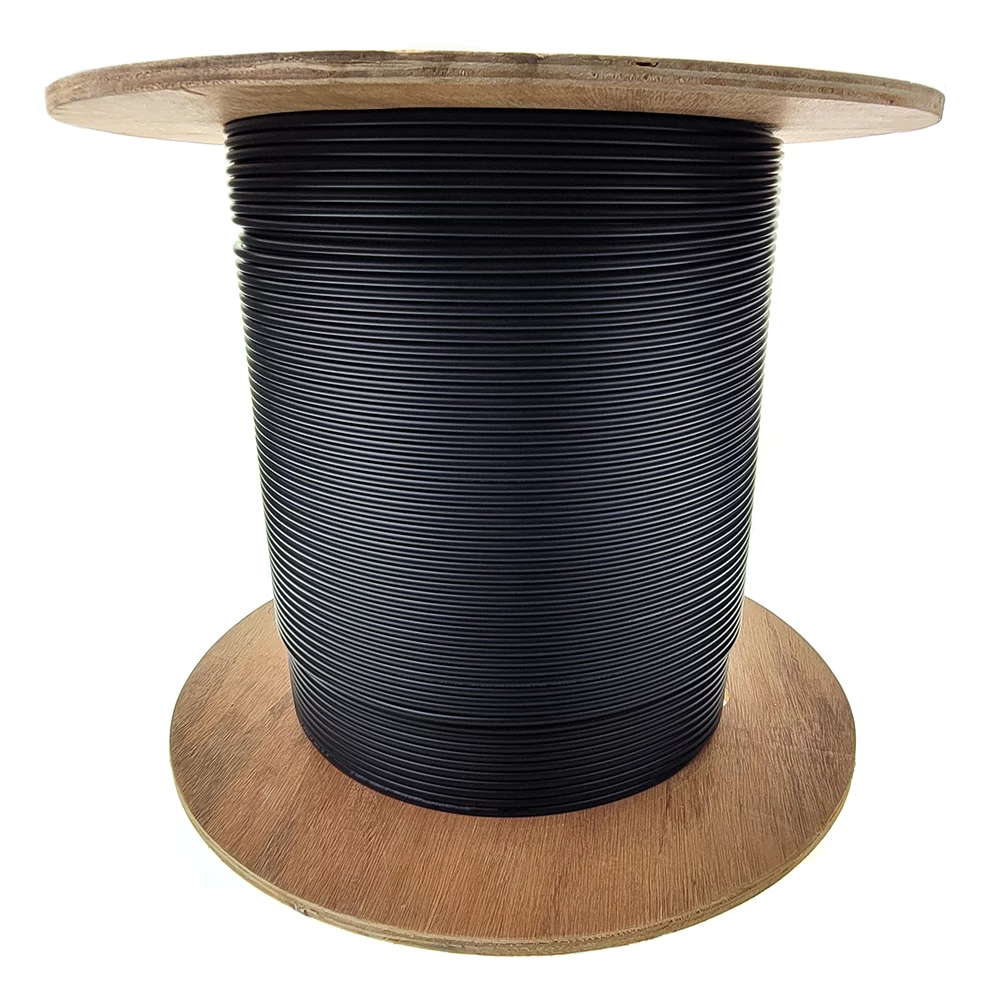

Plenum 12-Strand Indoor/Outdoor OS2 Fiber Optic Cable

Product Description

CableWholesale indoor/outdoor plenum rated fiber optic distribution cable intended for long distance runs at high speeds comes in a black 1000 foot spool. It is composed of 12 singlemode fibers (9 micron core) inside a water blocking Aramid yarn wrapped in a black PVC outer jacket. Single mode fiber is optimized to work with fiber optic equipment using light wave lengths of 1310nm (nanometers) or 1550nm. The cladding diameter is 125 microns. The core and cladding of our black bulk indoor/outdoor fiber optic cable is constructed using YOFC FullBand® Plus fiber complies with the ITU-T Recommendation G.652.D and the IEC 60793-2-50 type B1.3 Optical Fiber Specification. This particular cable is Plenum Rated. Plenum spaces are the area between floors or above office areas for heating/cooling airflow. If an office were to catch fire, this plenum area could easily allow the spread of the fire to more floors or across the entire building. Plenum rated cables are jacketed with a fire-retardant plastic jacket of either a low-smoke polyvinyl chloride (PVC) or a fluorinated ethylene polymer (FEP) for less toxicity during a fire.

Details

• G.652.D and the IEC 60793-2-50 type B1.3 Optical Fiber Specification compliant
• Designed for operation over the full optical spectrum from 1260-1625 nm
• Lower attenuation over the full optical spectrum from 1260 nm to 1625 nm
• Supports high-speed transmission technologies such as DWDM and CWDM
• Compatible with existing 1310 nm equipment
• Good protection and excellent strip force stability
• Accurate geometrical parameters that insure low splicing loss and high splicing efficiency

Details

• Part #11E3-012NH
• Warranty:Lifetime
• UPC Number:846568051432
• End 1:Bare end
• End 2:Bare end
• Length:1000 feet
• Color:Black
• Weight:30.00 lbs
