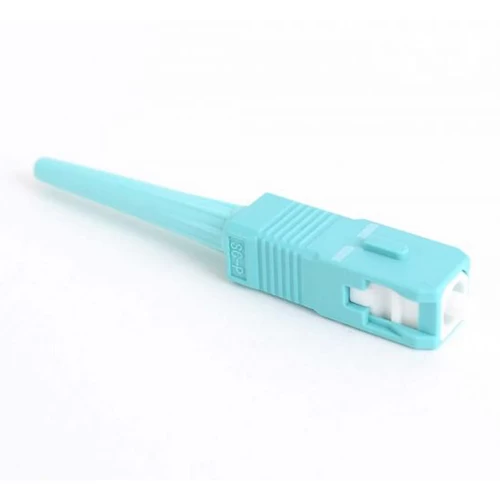

SC OM3 50um Optical Fiber Splice Connector

Product Description

This Multimode OM3 ST 50/125 um fiber optic Splice-On Connector (SOC) is a factory-terminated and pre-polished connector designed to meet and exceed industry standards for loss and back reflection. Featuring a 900um aqua boot this fiber optic SOC comes with a factory-cleaved 900um fiber stub to ensure ease of use and optimal performance.

Designed to work with many fusion splicers (cordage fiber holders & Universal SOC Oven is required).

Specifications

• Boot: Aqua, 900umm
• Core: 50um
• Insertion loss: 0.4dB (0.25dB typical)
• Return loss: 35dB (typical)
• Ferrule: Zirconia Pre-Polished
• Operating Temperature: -40 to 85C / -40 to 185F
• Telecordia GR-326-CORE Compliant
• Cable Retention: 2.5lb

Details

• Part #31F1-52310
• Warranty:1 year manufacturer’s warranty
• Connection:SC Male Fiber Connector
• Connector:Aqua
• Weight:0.18 lbs
