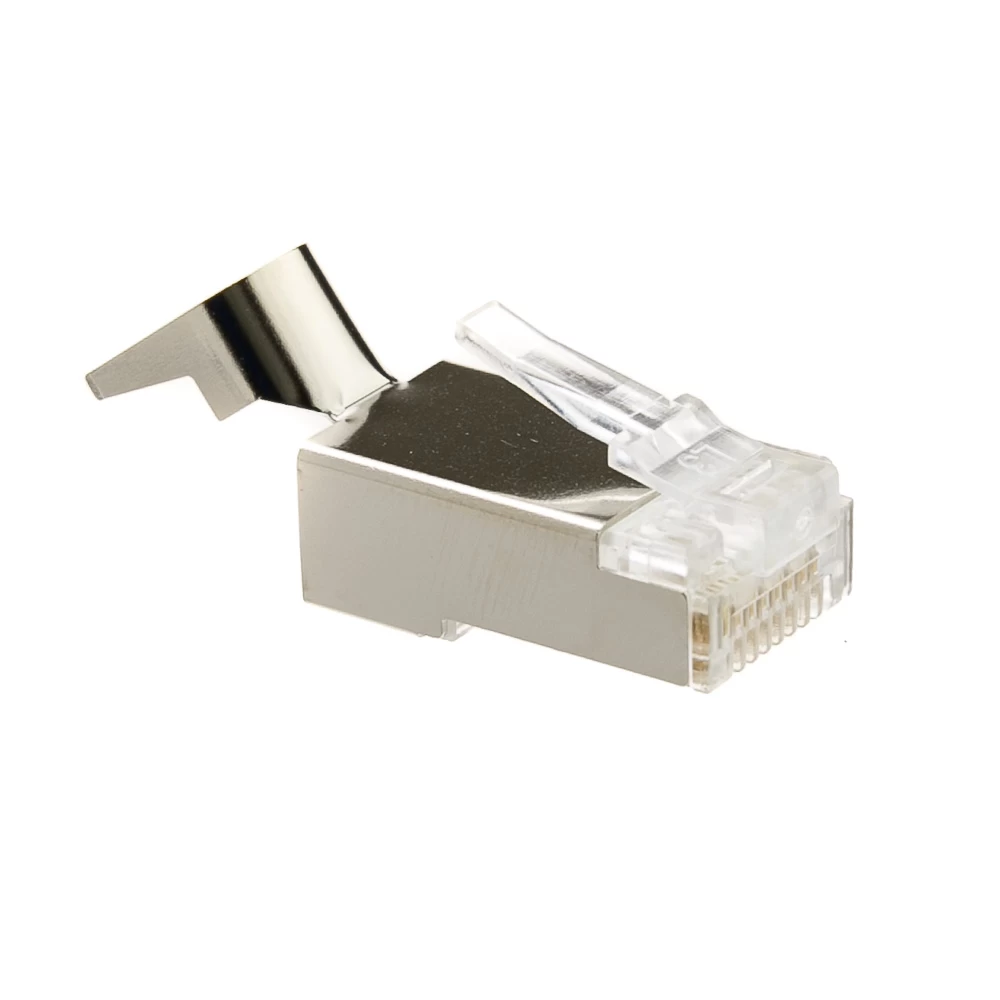

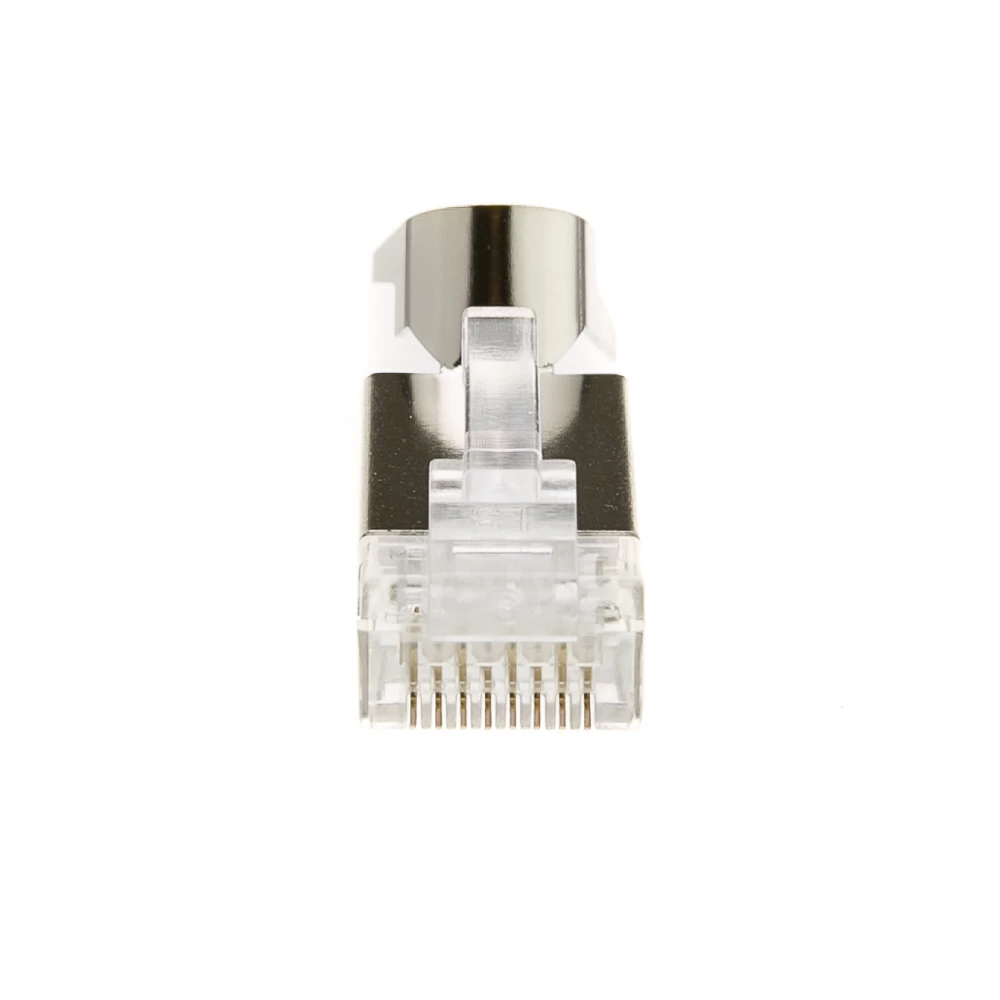

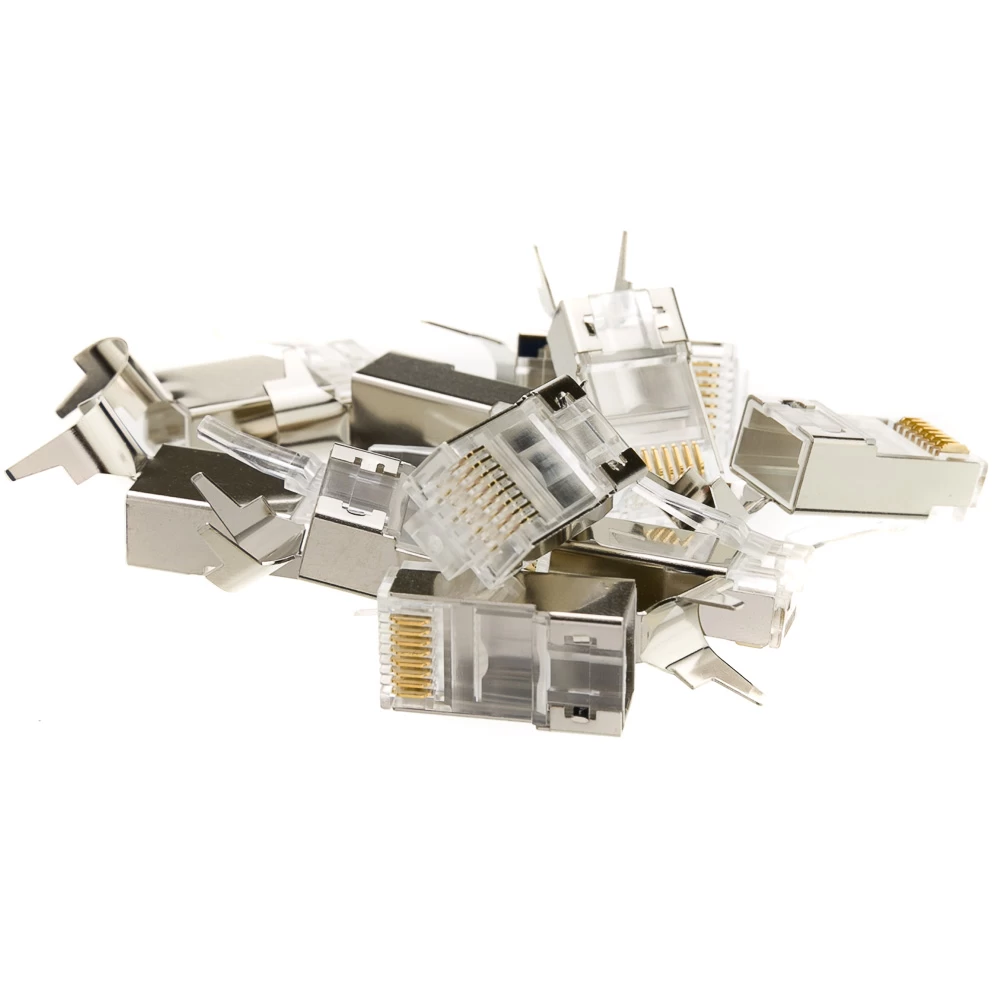

Platinum Tools shielded Cat6a RJ45 Crimp Connectors are designed for use with solid shielded Cat6a cable. So when you are ready to deploy a shielded 10 Gigabit network or merely the infrastructure for one look no further. These connectors are composed of two pieces, the RJ45 modular plug and a wire guide insert which helps keep the individual conductors in the appropriate alignment.
Please be advised that this connector is only compatible with the Platinum Tools Tele-TitanXg(12515C) and Tele-TitanXg 2.0 Crimp Tool(12516C).
Details
- Max cable OD: 8.5mm/0.335″
- Max conductor OD: 1.35mm/0.053″
- Individual conductor OD range: 0.042โ – 0.053โ (1.07mm-1.35mm)
- Wire gauge range (AWG) 24โ22
- Designed for both shielded and unshielded cabling
- 50ยต Gold Contacts
- 1,000 Mating Cycles
- Operating Temperature: -40C to 85C
- UL and RoHS compliant
- Part #106190
- Warranty:1 year
- UPC Number:849160005155
- Wire Gauge:22 – 24 AWG
- Weight:0.85 lbs
