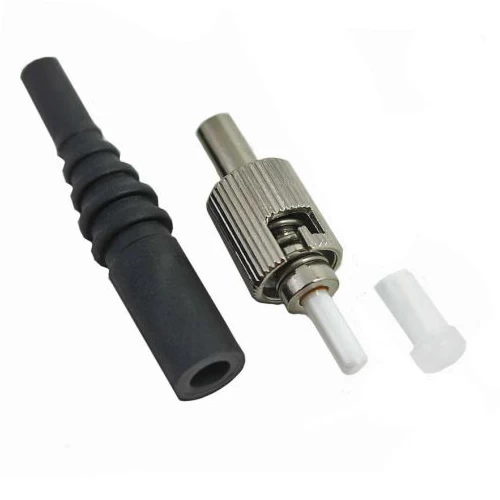

ST Multimode 127um Epoxy Connector, 100 Pack

Product Description

Fiber Optic ST (Straight Tip) Connectors are most commonly used in networking applications, for both short and long distance fiber optic applications. The fiber optic ST Connector provides a versatile, reliable, and cost-effective fiber optic termination method. The design of the fiber optic ST Connector enables it to be easily inserted and removed, featuring a bayonet twist-lock connection with 2.5mm ferrule.

Details

• Body: Nickel Plated Zinc
• Coupling Mechanism: Die-Cast Zinc, Nickel Plated
• Ferrule: Zirconia Ceramic
• Strain Relief Boot: Thermoplastic Elastomer
• Ferrule Hole Diameter: 127µm +2/-1
• Ferrule Outer Diameter: 2.5mm + 0/0.003
• Back Shell Cable Acceptance:
  • Max Diameter 3.0mm Cable
  • Min. Diameter 0.9mm Buffered Fiber

• Tensile Strength (Crimped to 3mm Cable): 20lb Before Pull Out
• Attenuation: ≤0.3dB
• Max Temp: -40 to +85 °C
• Mating Durability: 200 Total, Clean every 25
• Intermatability: TIA 604-2 (FOCUS-2)

Details

• Part #30F1-221HD
• Warranty:1 year manufacturer’s warranty
• Connection:ST Simplex Male Fiber Plug
• Color:Black
• Connector:Black
• Weight:1.00 lbs
