STP Cat6a Crimp Plugs, Ext Grnd, Orange Tint, 50pc, Simply45

Product Description

Simply45 RJ45 ends for Cat6a/7/7a networking are used for crimping and terminating Gigabit Ethernet cables. These 8P8C connectors can be used for solid or stranded cable applications on internet and phone networks. Simply45 Cat6/7/7a crimp connectors have gold-plated contacts that give you a solid, corrosion-free connection for life. Ordering RJ45 connectors in bulk from CableWholesale means you will have enough to set up or modify your infrastructure. We have a full lifetime warranty on these cat6a/7/7a tips with full support from our knowledgeable team.

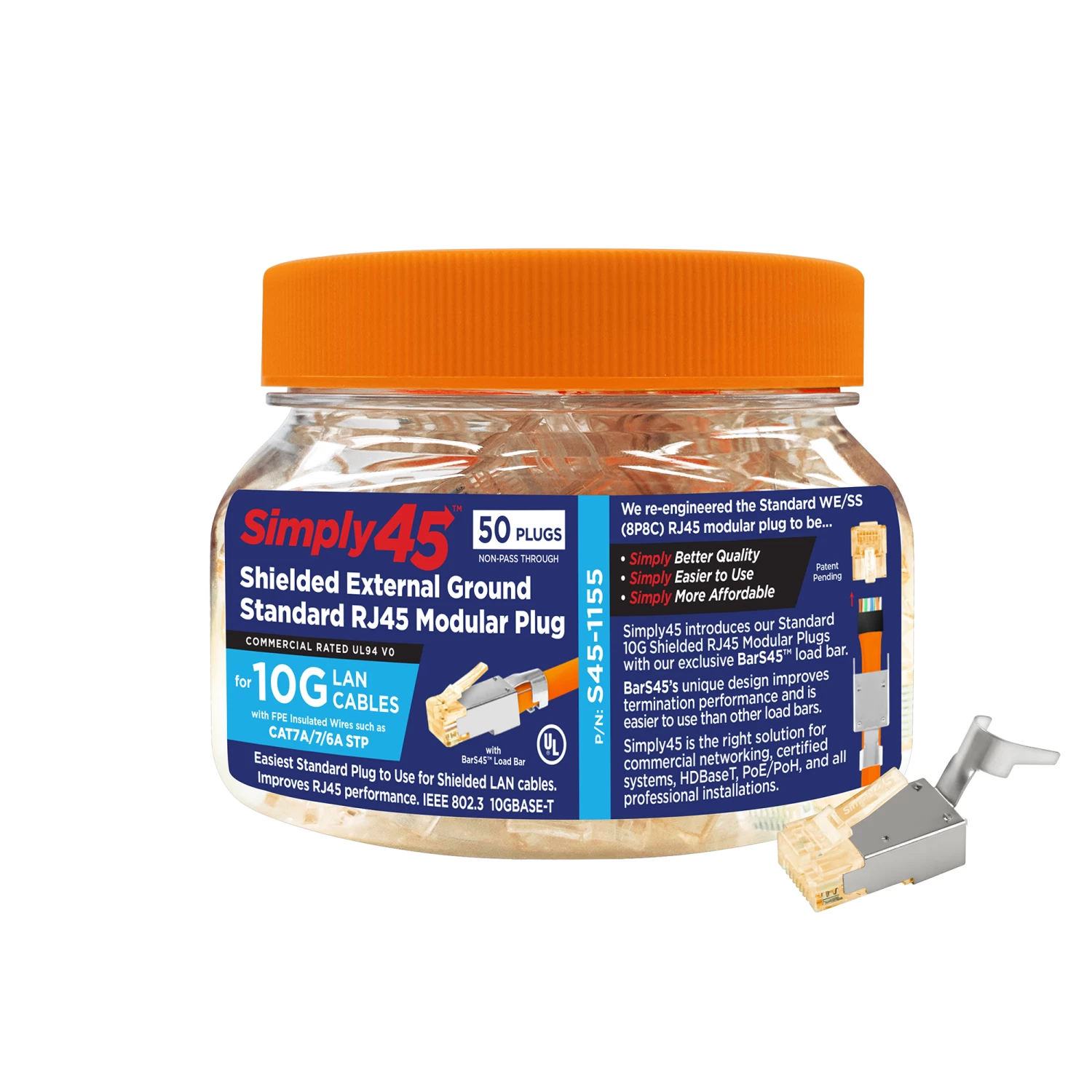

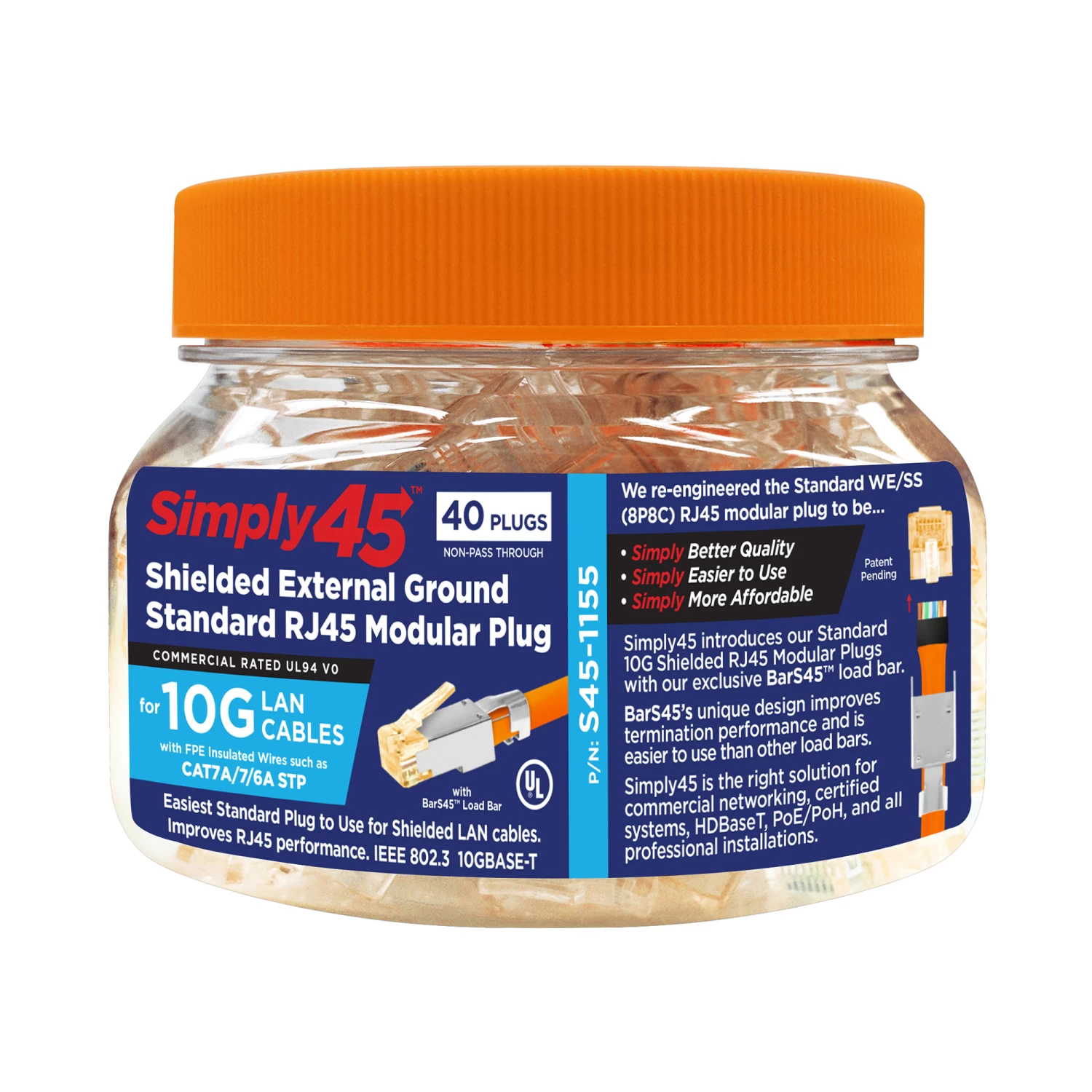

The orange tint of the RJ45 plug helps you easily identify this as a cat6a/7/7a mod plug. The wide mouth jar allows even the largest hand to easily remove plugs to get the termination done quickly and easily. This 2-piece STP rj45 comes with the Bar45 Hi/Lo stagger load bar The Bar45 load bar improves performance by reducing the effects of crosstalk inside the rj45 plug. Bar45 limits both near-end crosstalk(NEXT) and far-end crosstalk(FEXT). Bar45 reduces the length of untwisted wires inside the plug.

Features

• Category/Cable Type: Cat6a/7/7a/STP
• Conductor AWG/Range: 23AWG/1.21-1.45mm
• Max OD: 8.0mm
• 3 Pin Contact Design
• UL94V-0, Commercial ‘Fire’ Rated
• UL94V-0 Application: CMP, LSZH, and CMR
• Meets Requirements for PoE/PoE+. HDBaseT Approved
• USA Designed. TAA Compliant

Details

• Part #S45-1155
• Warranty:Lifetime
• UPC Number:817777017809
• Connection:Cat5e Male Plug
• Color:Orange
• Weight:0.48 lbs

Helpful Downloads

• PDF Spec Sheet
