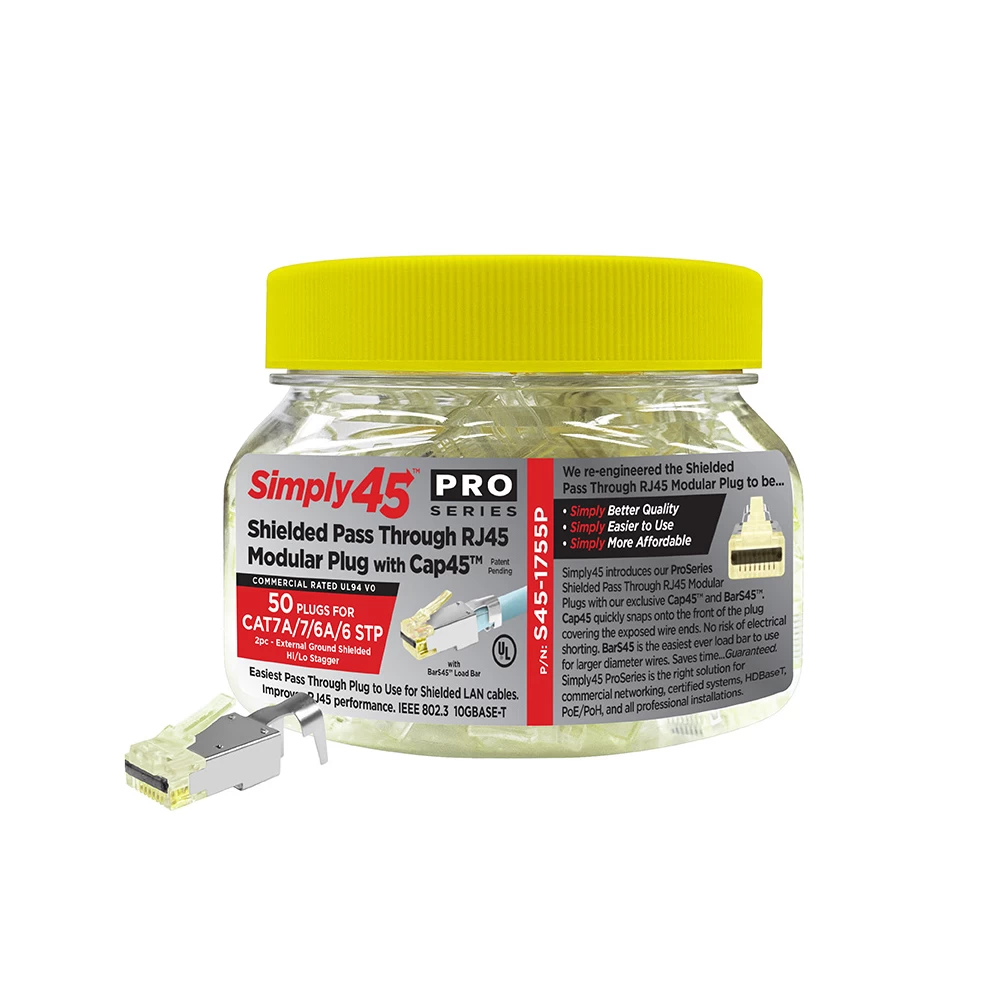

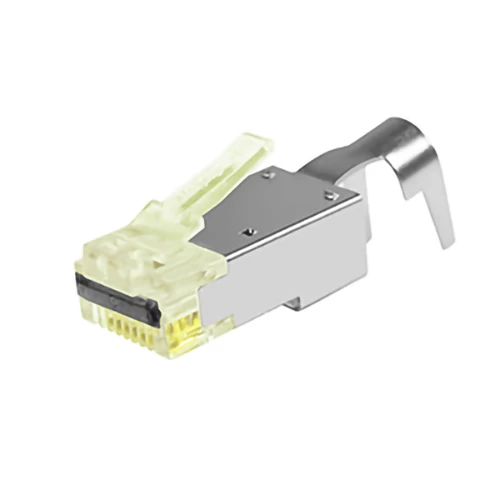

STP Cat6a Pass Through Crimp Plugs, FPE, Yellow Tint, 50pc, Simply45 ProSeries

Product Description

Simply45 RJ45 ends for Cat7a/7/6a networking are used for crimping and terminating Gigabit Ethernet cables. These 8P8C connectors can be used for solid or stranded cable applications on internet and phone networks. Simply45 Cat7a/7/6a crimp connectors have gold-plated contacts that give you a solid, corrosion-free connection for life. Ordering RJ45 connectors in bulk from CableWholesale means you will have enough to set up or modify your infrastructure. We have a full lifetime warranty on these cat7a/7/6a tips with full support from our knowledgeable team.

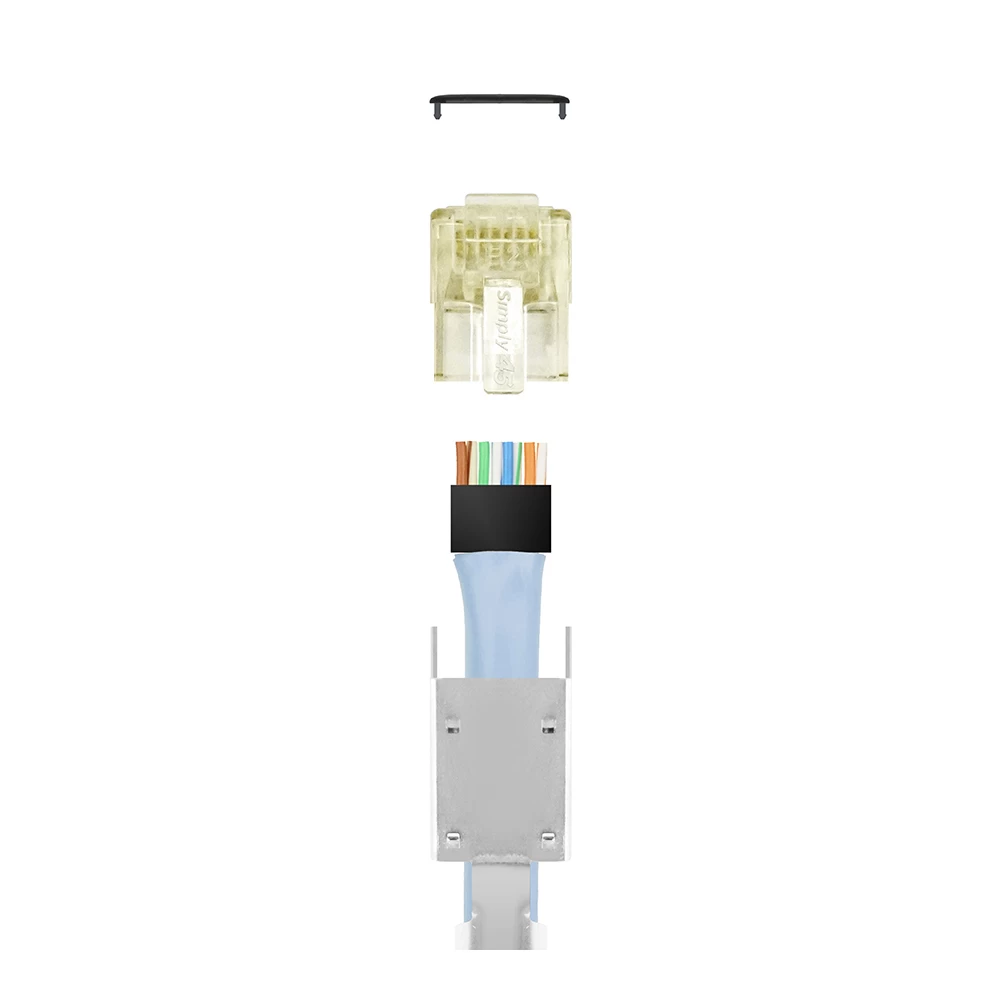

The yellow tint of the RJ45 plug helps you easily identify this as a cat7a/7/6a mod plug. The individual wires go all the way through this connector head and allow you to make sure everything is lined up before you crimp down. S45-1750P comes with the Bar45 Hi/Lo stagger load bar The Bar45 load bar improves performance by reducing the effects of crosstalk inside the rj45 plug. Bar45 limits both near-end crosstalk(NEXT) and far-end crosstalk(FEXT). Bar45 reduces the length of untwisted wires inside the plug.

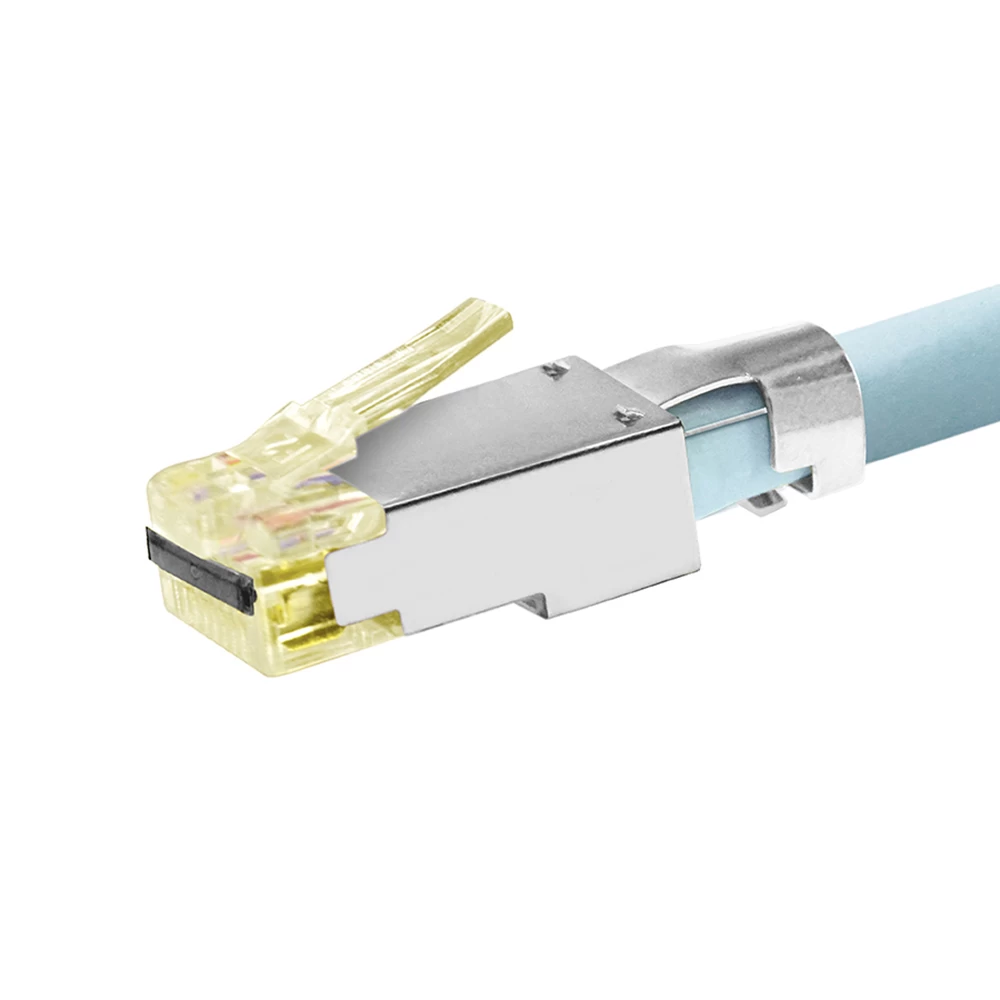

The ProSeries pass through RJ45 features the patented Cap45. The Cap45 is an isolation cap that snaps onto the front of the pass through rj45 after termination, covering the exposed wire ends. Cap45 prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant.

Features

• Category/Cable Type: Cat7a/7/6a STP
• Conductor AWG/Range: 23AWG/1.15-1.20mm
• Max OD: 8.0mm
• Cat7a/7/6a 23AWG Solid/Stranded
• 3 Pin Contact Design
• UL94V-0, Commercial ‘Fire’ Rated
• UL94V-0 Application: CMP, LSZH, and CMR
• Meets Requirements for PoE/PoE+. HDBaseT Approved
• USA Designed. TAA Compliant

Details

• Part #S45-1755P
• Warranty:Lifetime
• UPC Number:817777017731
• Connection:RJ45 Male Plug
• Weight:0.48 lbs
