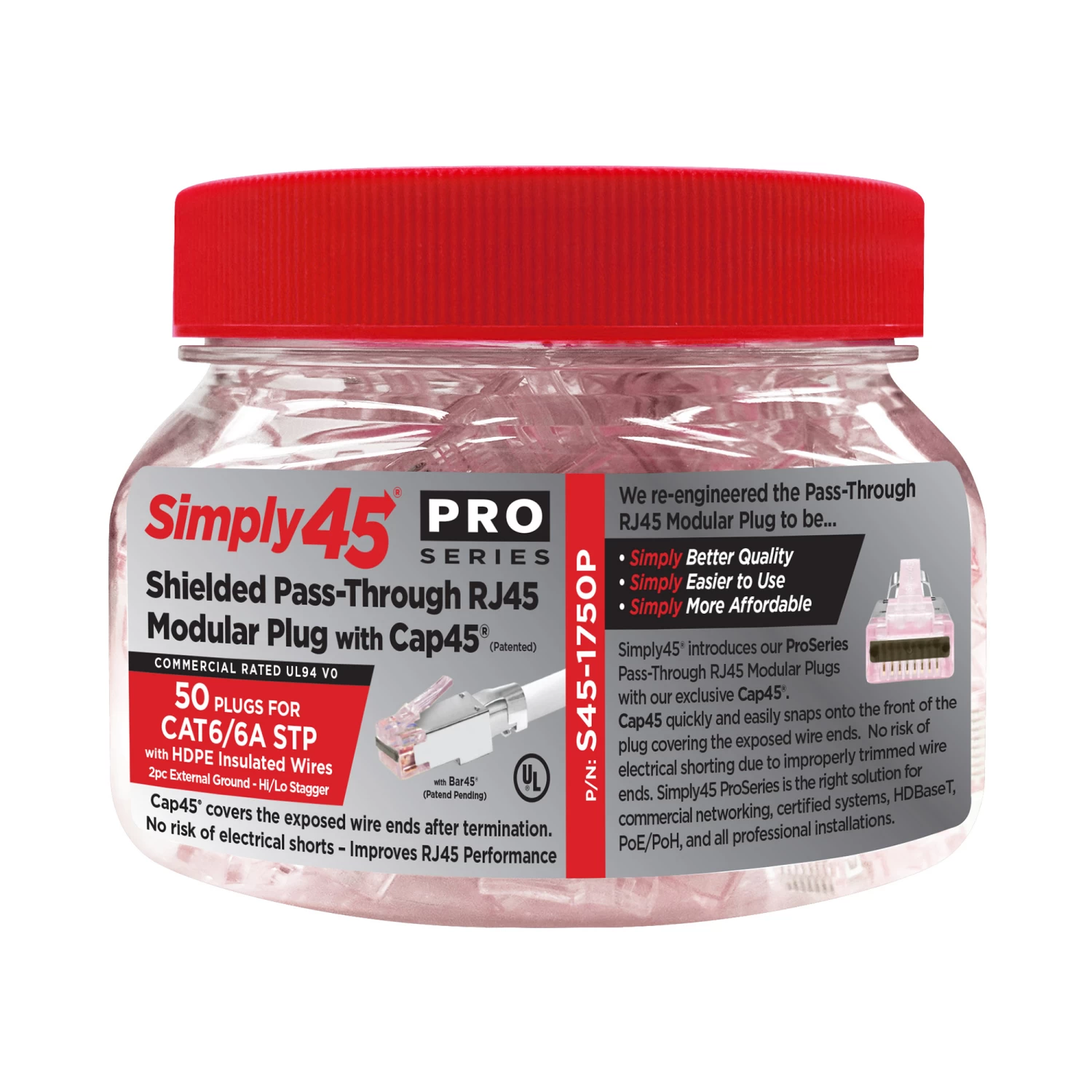

STP Cat6a Pass Through Crimp Plugs, PE, Red Tint, 50pc, Simply45 ProSeries

Product Description

Simply45 RJ45 ends for Cat6/6a networking are used for crimping and terminating Gigabit Ethernet cables. These 8P8C connectors can be used for solid or stranded cable applications on internet and phone networks. Simply45 Cat6/6a crimp connectors have gold-plated contacts that give you a solid, corrosion-free connection for life. Ordering RJ45 connectors in bulk from CableWholesale means you will have enough to set up or modify your infrastructure. We have a full lifetime warranty on these cat6/6a tips with full support from our knowledgeable team.

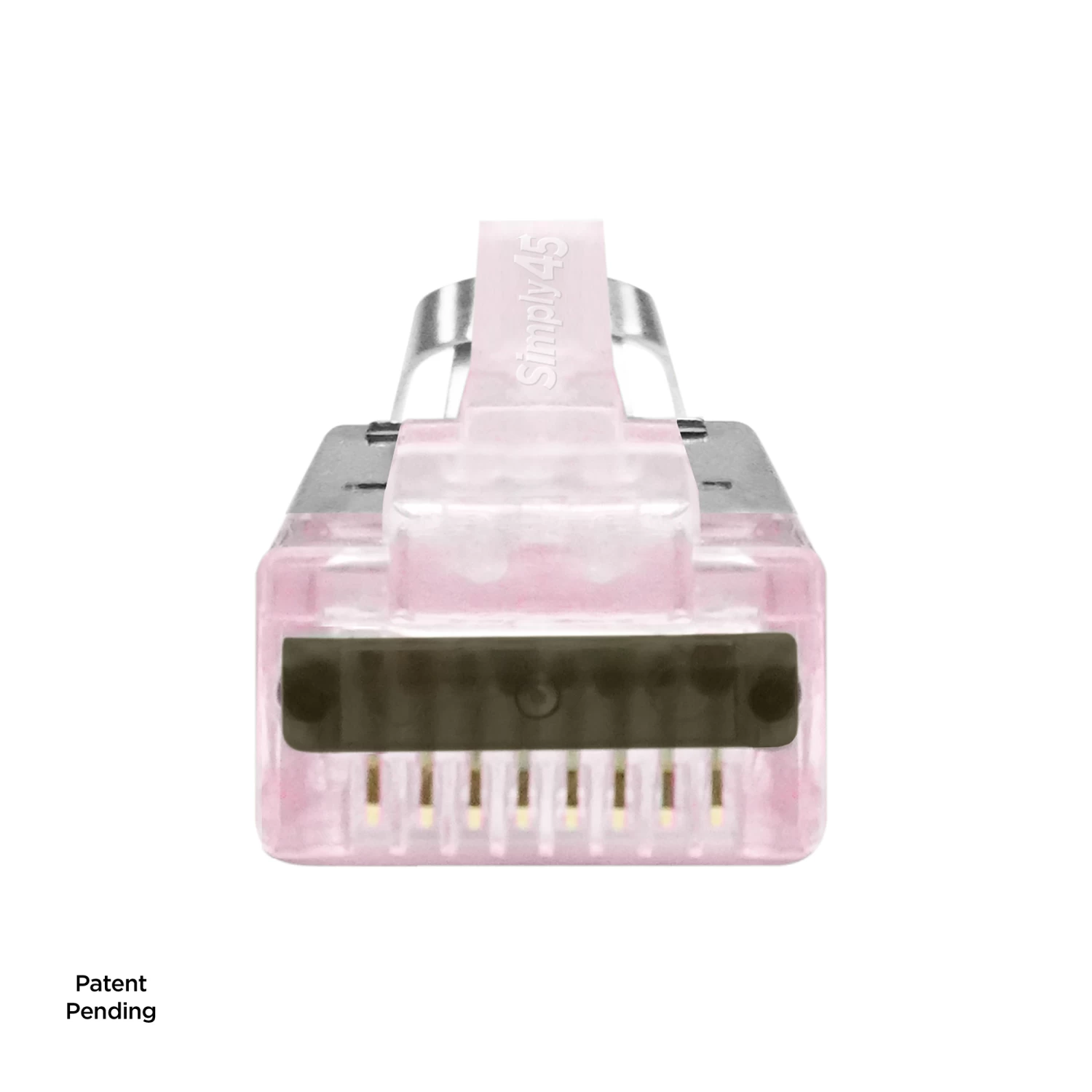

The red tint of the RJ45 plug helps you easily identify this as a cat6a mod plug. The individual wires go all the way through this connector head and allow you to make sure everything is lined up before you crimp down. The unique internal design of the S45-1750P pass-through RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance.

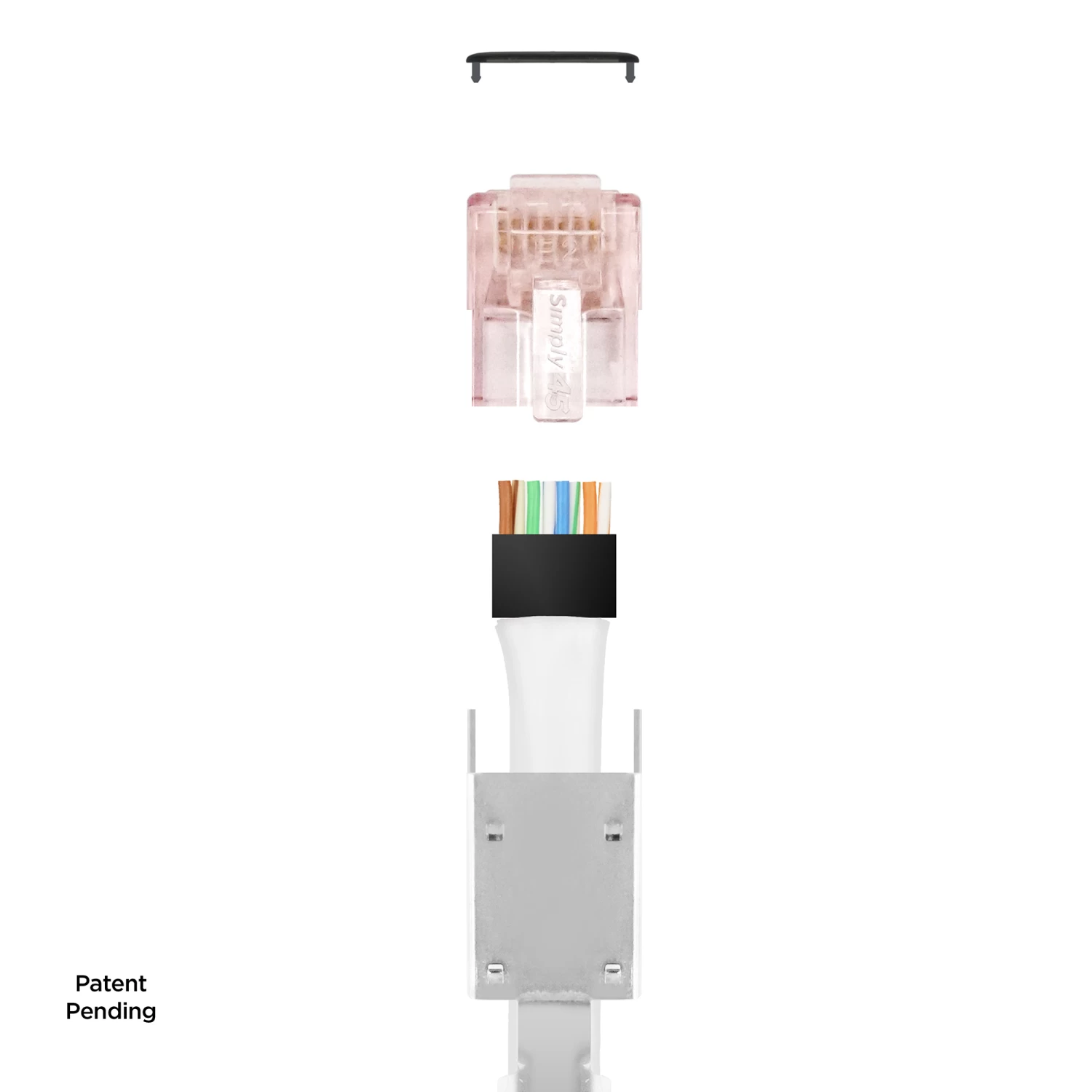

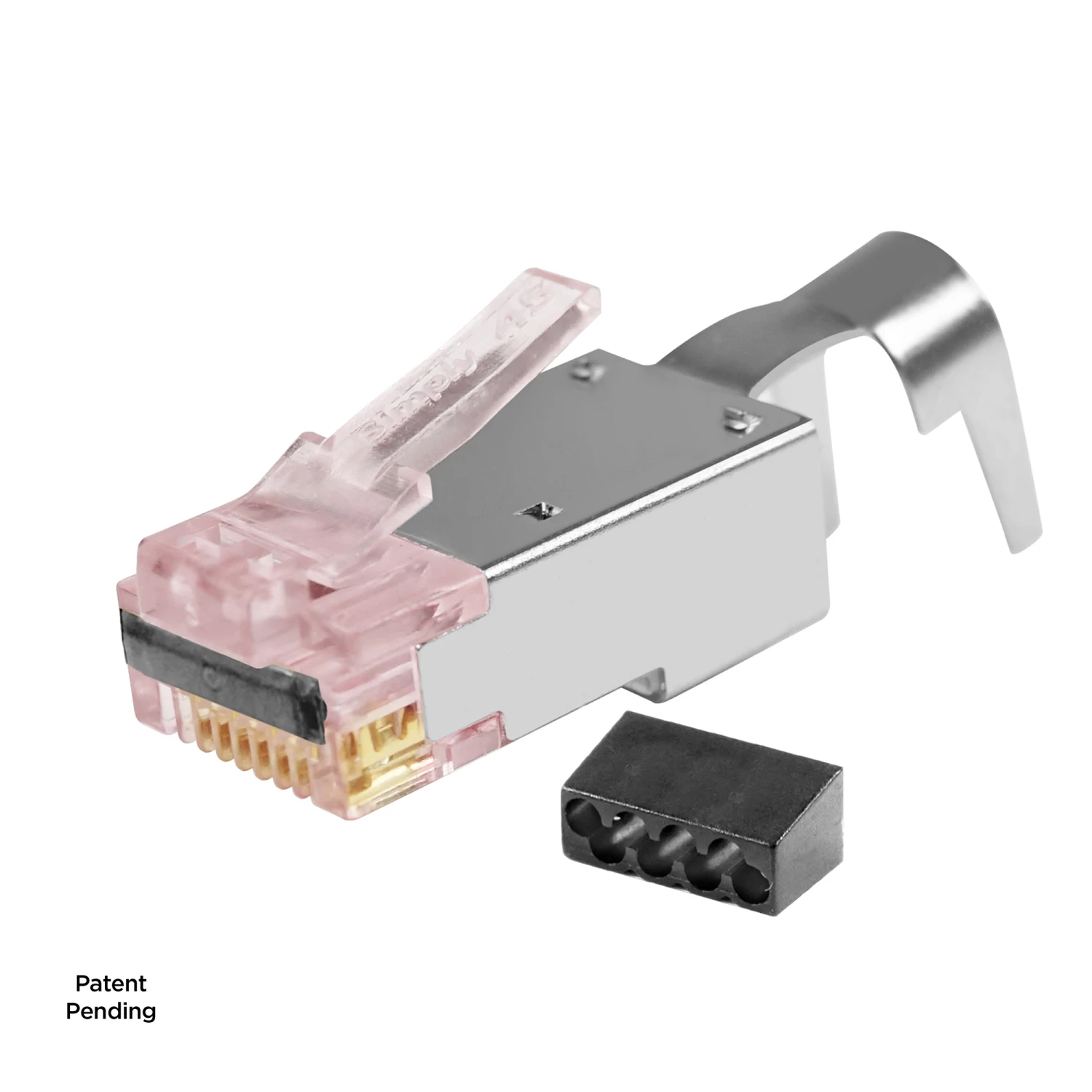

The ProSeries pass through RJ45 features the patented Cap45. The Cap45 is an isolation cap that snaps onto the front of the pass through rj45 after termination, covering the exposed wire ends. Cap45 prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant.

Features

• Category/Cable Type: Cat6/6a STP
• Conductor AWG/Range: 23AWG/1.10-1.20mm
• Max OD: 8.0mm
• Cat6/6a 23AWG Solid/Stranded
• 3 Pin Contact Design
• UL94V-0, Commercial ‘Fire’ Rated
• UL94V-0 Application: CMP, LSZH, and CMR
• Meets Requirements for PoE/PoE+. HDBaseT Approved
• USA Designed. TAA Compliant

Details

• Part #S45-1750P
• Warranty:Lifetime
• UPC Number:817777018837
• Connection:Cat6a Male Plug
• Weight:0.48 lbs

Helpful Downloads

• PDF Spec Sheet
